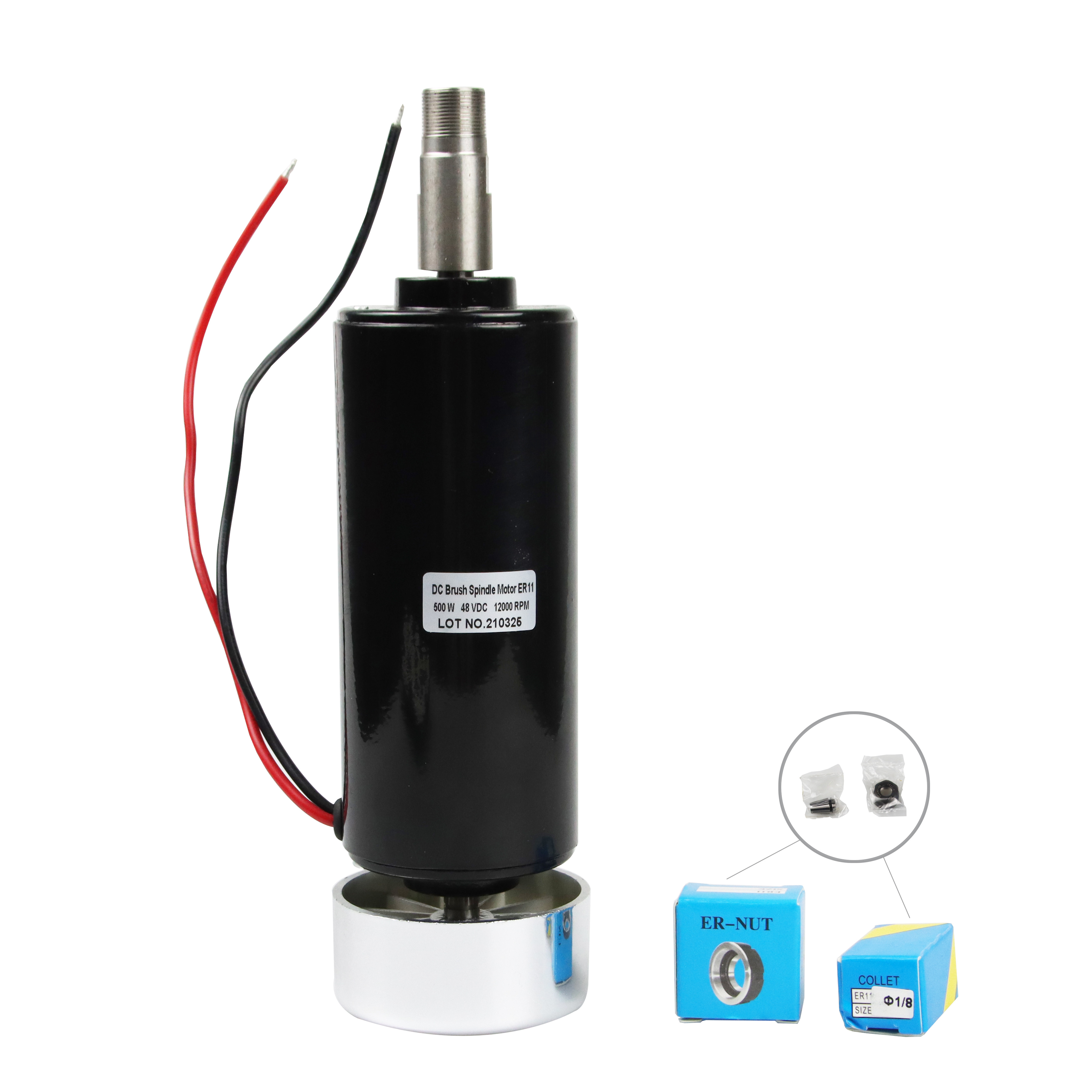

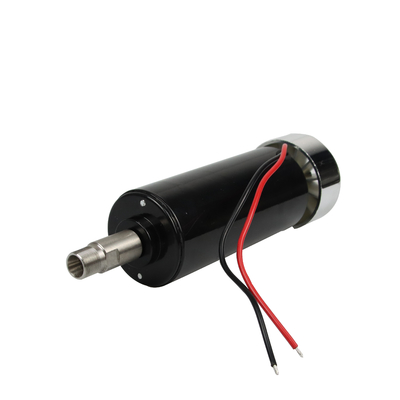

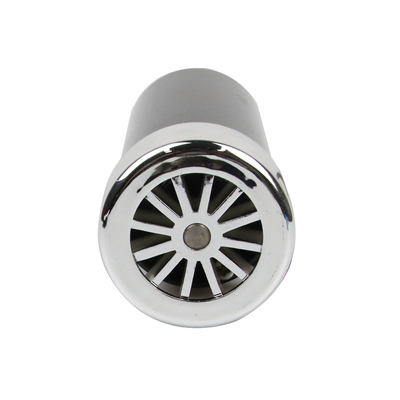

ER16 Air Cooled Spindle Motor 500W 48VDC 12000RPM 600m.Nm 52mm

ER16 Air Cooled Spindle Motor 500W 48VDC 12000RPM 600m.Nm 52mm

  • ER16 Air Cooled Spindle Motor 500W 48VDC 12000RPM 600m.Nm 52mm
  • ER16 Air Cooled Spindle Motor 500W 48VDC 12000RPM 600m.Nm 52mm
  • ER16 Air Cooled Spindle Motor 500W 48VDC 12000RPM 600m.Nm 52mm
ER16 Air Cooled Spindle Motor 500W 48VDC 12000RPM 600m.Nm 52mm
Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jkongmotor
Certification: CE, ROHS,ISO9001
Model Number: 500W ER16 air cooling spindle motor
Payment & Shipping Terms:
Minimum Order Quantity: 3-10pcs
Price: US$ 36.5~US$39.5 (spindle motor)
Packaging Details: with export carton . big quantity with pallet
Delivery Time: For samples , 7-15 days / For batch , 15-25days
Payment Terms: T/T , paypal , Western Union, L/C
Supply Ability: 3000 pcs/month
Contact Now
Detailed Product Description
Brand:: JKONGMOTOR Product Name:: Spindle Motor
Model:: 500w Air Cooled Holding Torque:: 600mN.m
Motor Length:: 200mm Voltage:: 48V
Speed:: 0-12000rpm Collet:: ER16
Max Power:: 600w MOQ:: 1 Set/ 3pcs
High Light:

ER16 Air Cooled Spindle Motor

,

ROHS Air Cooled Spindle Motor

,

500W Spindle Motor 48VDC

500W 48VDC 12000RPM 600m.Nm 52mm ER16 Air cooling spindle motor



Spindle motor features:
1) Imported bearings with good quality, long working life.
2) Application: Milling,Engraving,Drilling in all kinds of CNC Router machine.
3) There are water cooling spindle , air cooling spindle and self cooling spindle for your choose.
4) Every spindle motor must be passed polishing process, Improve spindle concentricity to increase motor working life.


Provide:
1.water cooling:800w,1.2kw,1.5kw,2.2kw,3kw,4kw,3.2kw,4.5kw,5.5kw
2.air cooling: 800w,1.5kw,2.2kw.3.5kw,4.5kw,6kw,7.5kw,12kw


Accessories:
We also have spindle motor matching inverter(VFD), collet , gripper etc.
If you need other kinds of parts, please don't hesitate to contact us.



Brand:
JKONGMOTOR
Product Name:
spindle motor
Model:
500w air cooled
Holding Torque:
600mN.m
Motor Length:
200mm
Voltage:
48V
Speed:
0-12000rpm
Collet:
ER16
Max power:
600w

Electrical Specification:



ER16 Air Cooled Spindle Motor 500W 48VDC 12000RPM 600m.Nm 52mm 0

ER16 Air Cooled Spindle Motor 500W 48VDC 12000RPM 600m.Nm 52mm 1

ER16 Air Cooled Spindle Motor 500W 48VDC 12000RPM 600m.Nm 52mm 2

ER16 Air Cooled Spindle Motor 500W 48VDC 12000RPM 600m.Nm 52mm 3

ER16 Air Cooled Spindle Motor 500W 48VDC 12000RPM 600m.Nm 52mm 4

ER16 Air Cooled Spindle Motor 500W 48VDC 12000RPM 600m.Nm 52mm 5ER16 Air Cooled Spindle Motor 500W 48VDC 12000RPM 600m.Nm 52mm 6ER16 Air Cooled Spindle Motor 500W 48VDC 12000RPM 600m.Nm 52mm 7ER16 Air Cooled Spindle Motor 500W 48VDC 12000RPM 600m.Nm 52mm 8
