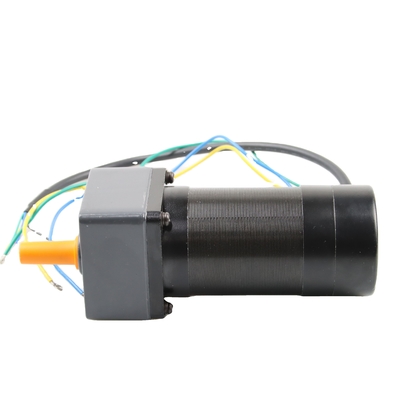

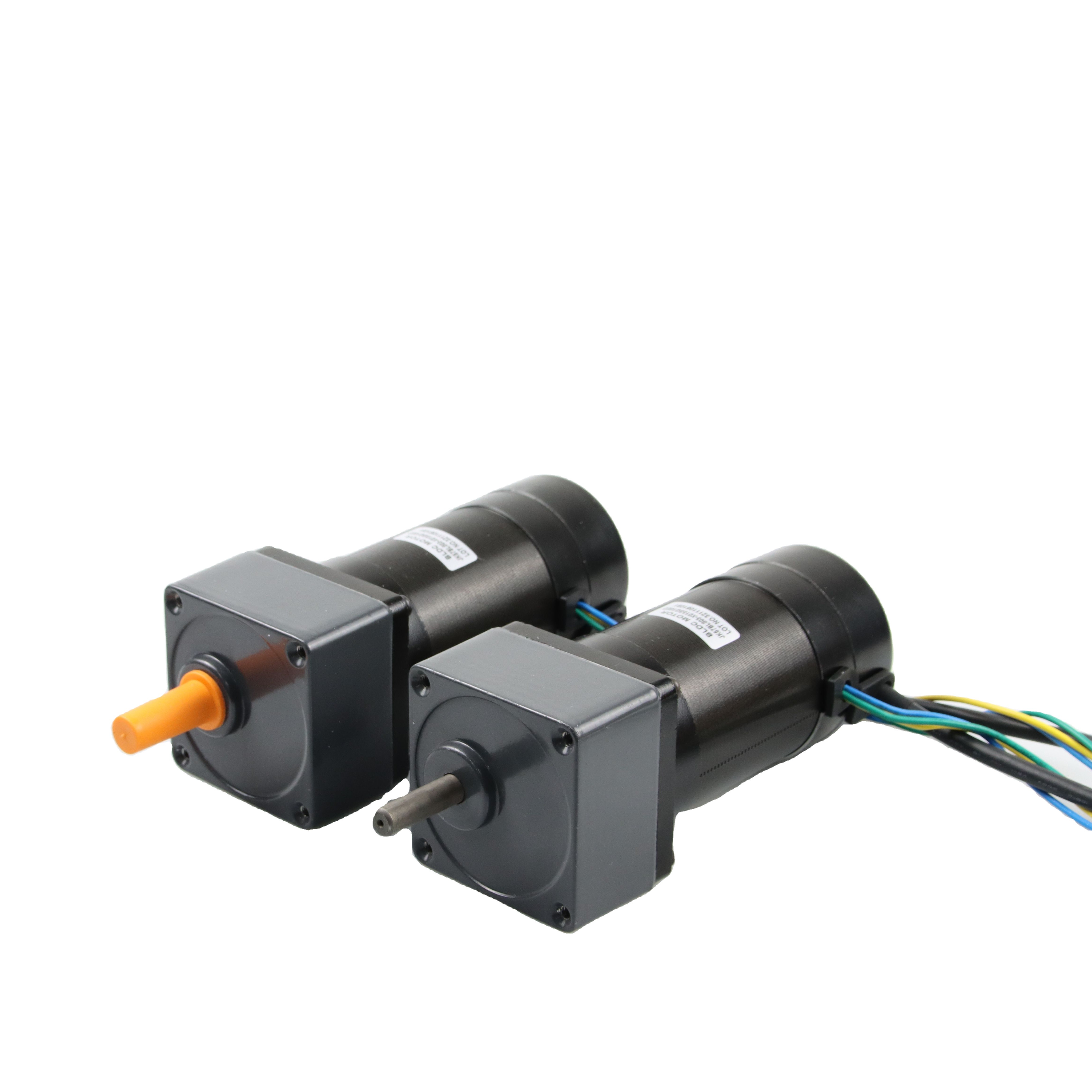

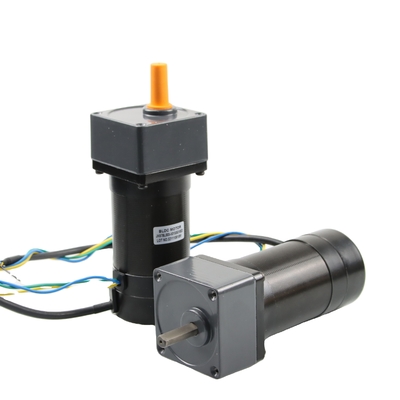

Nema23 57mm 36v 138w 4000rpm 0.33N.M Brushless Dc Gear Motor

Brand: Jkongmotor Model No.: JK57BLS03-X013SG10ED
Number of Phase: 3phase
Number of Poles: 4poles
Rated Voltage: 36V
Rated Speed: 4000Rpm
Rated Torque: 0.33N.m
Rated Power: 138W
Rated current: 8.6A
Motor length: 92mm
Shaft diameter: 8mm or customized
Senser: Honeywell



Electrical Specification:
Model No.	Unit	Model
		JK57BLS01	JK57BLS02	JK57BLS03	JKBLS04
Number of phase	Phase	3
Number of poles	Poles	4
Rated voltage	VDC	24
Rated speed	Rpm	4000
Rated torque	N.m	0.11	0.22	0.33	0.44
Rated current	Amps	2	3.6	5.3	6.8
Rated power	W	46	92	138	184
Peak torque	N.m	0.33	0.66	1	1.32
Peak current	Amps	6.8	11.5	15.5	20.5
Back E.M.F	V/Krpm	7.7	7.4	7.3	7.1
Torque constant	N.m/A	0.073	0.07	0.07	0.068
Rotor inertia	g.cm2	75	119	173	230
Body length	mm	47	67	87	107
Weight	kg	0.44	0.75	1	1.25
Sensor	Honeywell
Insulation class	IP30
Degree of protection	-25~ +70℃
Storage temperature	-15~ +50℃
Operating temperature	85% RH或以下(无结露)<= 85% RH
Working environment	No direct sunlight, non-corrosive gas, flammable gas, oil mist, no dust.
Altitude	1000m or below
Above only for representative products, products of special request can be made according to the customer request.
JKBLD300 JKBLD750 Brushless DC Motor Driver
Environment Temperature		JKBLD300		JKBLD750
		-10℃~ 50℃		-10℃~ 50℃
Input Voltage		+18V~ +50V		+18V~ +50V
Output Current		15A~35A		25A~ 45A
Suitable Motor Speed		0~20000Rpm		0~20000Rpm
Hall Sensor Voltage		4.5V~ 5.5V		4.5V~ 5.5V
External Potentiometer		10KΩ		10KΩ
Support Motor		Brushless dc motor less of 300w		Brushless dc motor less of 750w
JKBLD300 brushless dc driver is suit the following three-phase sine wave power is 300W brushless dc motor speed regulation, can provide an external potentiometer control, external analog voltage control, PC (such as PLC, SCM) PWM speed regulation, and other functions. At the same time the drive have large starting torque, quick start and brake, and positive &negative switching, combination of manual and automatic control.
JKBLD750 brushless dc driver is suit the following 3 phase sine wave power and 48VDC 750W brushless dc motor speed regulation, can provide an external potentiometer control, external analog voltage control, PC (such as PLC, SCM) PWM speed regulation, and other functions. At the same time the drive have large starting torque, quick start and brake, and positive & negative switching, combination of manual and automatic control.



Details of Brushless dc motor:

Drawing of 42BLS motor:



FAQ(Q=Question, A=Answer)

Q: What's your main products?
A:We currently produce Stepper motors, Brushless Dc Motors, Brushed Dc Motors, Spindle motor, Ac Motors and drivers etc. You can check the specifications for above motors on our website and you can email us to recommend needed motors per your specification too.



Q:How to select a suitable motor?
A:If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed life time and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly.



Q: Do you have customized service for your standard motors?
A:Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape.



Q:Can I have samples for testing first?
A:Yes, definitely you can. After confirmed the needed motor specs, we will quote and provide a proforma invoice for samples.



Q:How do you make sure motor quality?
A:We have our own inspection procedures: for incoming materials, we have signed sample and drawing to make sure qualified incoming materials; for production process, we have tour inspection in the process and final inspection to make sure qualified products before shipping.
