Place of Origin: | Jiangsu, China (Mainland) |
Brand Name: | Jkongmotor |
Certification: | CE, ROHS,ISO9001 |
Model Number: | NEMA34 JK86BLSP |
Minimum Order Quantity: | 3-10pcs |
---|---|
Price: | US$73~US$155 |
Packaging Details: | with export carton . big quantity with pallet |
Delivery Time: | For samples , 7-15 days / For batch , 15-25days |
Payment Terms: | T/T , paypal , Western Union, L/C |
Supply Ability: | 30000pcs/month |
Rated Voltage: | 48V - 310V | Rated Speed: | 1000rpm - 3000rpm |
---|---|---|---|
Rated Power: | 110W - 660W | Rated Torque: | 0.35N.m - 2.1N.m |
Rated Current: | 3A - 18A | Ratio: | 1:4 - 1:1000 |
High Light: | planetary gear motor,24v dc geared electric motors |

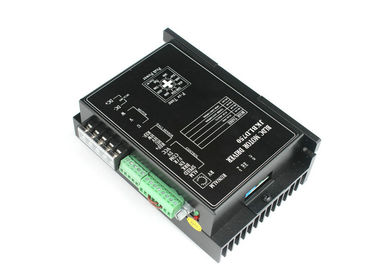

48V 3000rpm Geared Brushless Dc Motor High Precision Planetary Gearbox BLDC Motor And Driver
A BLDC motor with three coils on the stator will have six electrical wires (two to each coil) extending from these coils. In most implementations three of these wires will be connected internally, with the three remaining wires extending from the motor body (in contrast to the two wires extending from the brushed motor described earlier). Wiring in the BLDC motor case is more complicated than simply connecting the power cell’s positive and negative terminals.
1. General Specification
2. Electrical Specification
Specification | Unit | JK86BLS58 | JK86BLS71 | JK86BLS84 | JK86BLS98 | JK86BLS125 |
Number Of Phase | Phase | 3 | ||||
Number Of Poles | Poles | 8 | ||||
Rated Voltage | VDC | 48 | ||||
Rated Speed | Rpm | 3000 | ||||
Rated Torque | N.m | 0.35 | 0.7 | 1.05 | 1.4 | 2.1 |
Rated Current | Amps | 3 | 6.3 | 9 | 11.5 | 18 |
Rated Power | W | 110 | 220 | 330 | 440 | 660 |
Peak Torque | N.m | 1.05 | 2.1 | 3.15 | 4.2 | 6.3 |
Peak Current | Amps | 9 | 19 | 27 | 35 | 54 |
Back E.M.F | V/Krpm | 13.7 | 13 | 13.5 | 13.7 | 13.5 |
Torque Constant | N.m/A | 0.13 | 0.12 | 0.13 | 0.13 | 0.13 |
Rotor Inertia | g.c㎡ | 400 | 800 | 1200 | 1600 | 2400 |
Body Length | mm | 71 | 84.5 | 98 | 111.5 | 138.5 |
Weight | Kg | 1.5 | 1.9 | 2.3 | 2.7 | 4 |
Sensor | Honeywell | |||||
Insulation Class | B | |||||
Degree of Protection | IP30 | |||||
Storage Temperature | -25~+70℃ | |||||
Operating Temperature | -15~+50℃ | |||||
Working Humidity | 85% or under 85% RH(non condensing) | |||||
Working Environment | outdoor(no direct sunlight),Non-corrosive Gas, Non-inflammable gas, No oil fog, No dust |
|||||
Altitude | 1000m or under 1000m |
3.Gearbox Electrical Specification:
Stage | One stage | Two stage | Three stage | |||
Ratio | 3,4,5,8,10 | 12,15,16,20,25,32,40,64,100 | 64,80,100,120,125,160,200,256,320,512,1000 | |||
Length (mm) | L2 | L3 | L2 | L3 | L2 | L3 |
153 | 65 | 177 | 89 | 201 | 113 | |
Max.Input Rpm (Rpm) | 6000 | 6000 | 6000 | |||
Max.Radial load (N) | 550 | 550 | 550 | |||
Max.Shaft axial load (N) | 500 | 500 | 500 | |||
Efficiency (%) | 96 | 94 | 90 | |||
Backlash arcmin (arcmin) | ≤8 | ≤10 | ≤12 | |||
Noise (dB) | ≤60 | ≤60 | ≤60 | |||
Weight (Kg) | 3.2 | 3.9 | 4.8 | |||
Average usefui life (h) | >10000 | |||||
Lubricating system | Long-term | |||||
Rotation direction | Input/Output syntropy | |||||
Protection level | IP65 |
Toward Wider Usage in the Future
We can expect to see BLDC motors used in a wider range of applications in the future. For example, they will probably be widely used to drive service robots—small robots that deliver services in fields other than manufacturing. One might think that stepper motors would be more suitable in this type of application, where pulses could be used to precisely control positioning. But BLDC motors are better suited to controlling the force. And with a stepper motor, holding the position of a structure such as a robot arm would require a relatively large and continuous current. With a BLDC motor, all that would be required is a current proportionate to the external force—allowing for more power-efficient control. BLDC motors may also be replacing simple brushed dc motors in golf carts and mobility carts. In addition to their better efficiency, BLDC motors can also deliver more precise control—which in turn can further extend battery life.
BLDC motors are also ideal for drones. Their ability to deliver precision control makes them especially suited for multirotor drones, where the drone’s attitude is controlled by precisely controlling the rotational speed of each rotor.
