Name: 1.8 Degree Nema 24 Precision Variable Stepper Cross Motor 2 Phase
Brand: JK
SKU: JK60HS67-2804BK2.8
Price: 20.5 USD
Availability: InStock
Rating: 4.7 (106 reviews)

Home Products Hybrid Stepper Motor

1.8 Degree Nema 24 Precision Variable Stepper Cross Motor 2 Phase

Product Details:

Place of Origin:	Jiangsu, China (Mainland)
Brand Name:	JK
Certification:	CE, ROHS,ISO9001
Model Number:	JK60HS67-2804BK2.8

Payment & Shipping Terms:

Minimum Order Quantity:	3-10pcs
Price:	US$20.5~US$45.5
Packaging Details:	with export carton . big quantity with pallet
Delivery Time:	For samples , 7-15 days / For batch , 15-35days
Payment Terms:	T/T, Western Union, paypal
Supply Ability:	100000pcs/month

Contact Now

Detailed Product Description

Name:	Ball Screw Slide Linear Motion Module	Model:	JK60HS67-2804BK2.8
Color:	Silver & Black	Number Of Phase:	2
Step Angle:	1.8°	Valtoge:	3.36v
Current:	2.8A	Resistance:	1.2Ω
Inductance:	4.6mH	Torque:	21kg.cm
MOQ:	10pcs
Highlight:	Nema 24 Stepper Cross Motor , 1.8 degree Stepper Cross Motor , Ball Screw variable stepper motor

1.8degree Nema24 covered Linear Module Ball Screw Slide Precision Stepping Cross Motor

Electrical Specification:

Step angle:1.8° Temperature rise:below 80 ℃
Ambient temperature:-20 ℃ ~ + 50 ℃
Insulation resistance:minimum 100MΩ, 500VDC
Dielectric strength:500VAC for 1 minute
Shaft radial clearance 0.02 max (450 g load)
Shaft axial clearance:0.08Max. (450 g load)
Maximum radial force:75N (20mm from flange)
Maximum axial force:15N

Model Number: nema24 stepper motor
Phase: 2
Type: Hybrid
Holding Torque: 1.17N.m~4.5N.m
Current / Phase: 1.4A~2.8A
Motor length: 56mm~111mm
Leads: 4 leads or 8 leads
Detet Torque: 700g.cm~1200g.cm
Rotor Inertia: 300g.cm2~1120g.cm2
Weight: 0.77kg~1.9kg

Model Number: JK60HS88-2008
Phase: 2
Type: Hybrid
Frame size: 60*60mm
Holding Torque: 3.1N.m
Current / Phase: 2.0A
Motor length: 88mm
Leads: 8-leads
Shaft shape: D shaft
Shaft diameter: 8mm
Lead Length: 300mm
Detet Torque: 1000g.cm
Rotor Inertia: 840g.cm2
Weight: 1.4kg

Specification of JK60HS motors:

Model No.			Motor Length	Current /Phase	Resistance /Phase	Inductance /Phase	Holding Torque	# of Leads	Detent Torque	Rotor Inertia	Mass
Model No.		(L)mm		A	Ω	mH	N.m	No.	g.cm	g.cm	Kg
JK60HS56-2008	unipolar	56		2	1.8	3.	1.17	8	700	300	0.77
	parallel			2.8	0.9	3.6	1.65
	Series			1.4	3.6	14.4	1.65
JK60HS67-2008	unipolar	67		2	2.4	4.6	1.5	8	900	570	1.2
	parallel			2.8	1.2	4.6	2.1
	Series			1.4	4.8	18.4	2.1
JK60HS88-2008	unipolar	88		2	3	6.8	2.2	8	1000	840	1.4
	parallel			2.8	1.5	6.8	3.1
	Series			1.4	6	27.2	3.1
JK60HS100-2008	unipolar	100		2	3.2	6.4	2.8	8	1100	980	1.7
	parallel			2.8	1.6	6.4	4.0
	Series			1.4	6.4	25.6	4.0
JK60HS111-2008	unipolar	111		2.0	4.4	8.3	3.2	8	1200	1120	1.9
	parallel			2.8	2.2	8.3	4.5
	Series			1.4	8.8	33.2	4.5

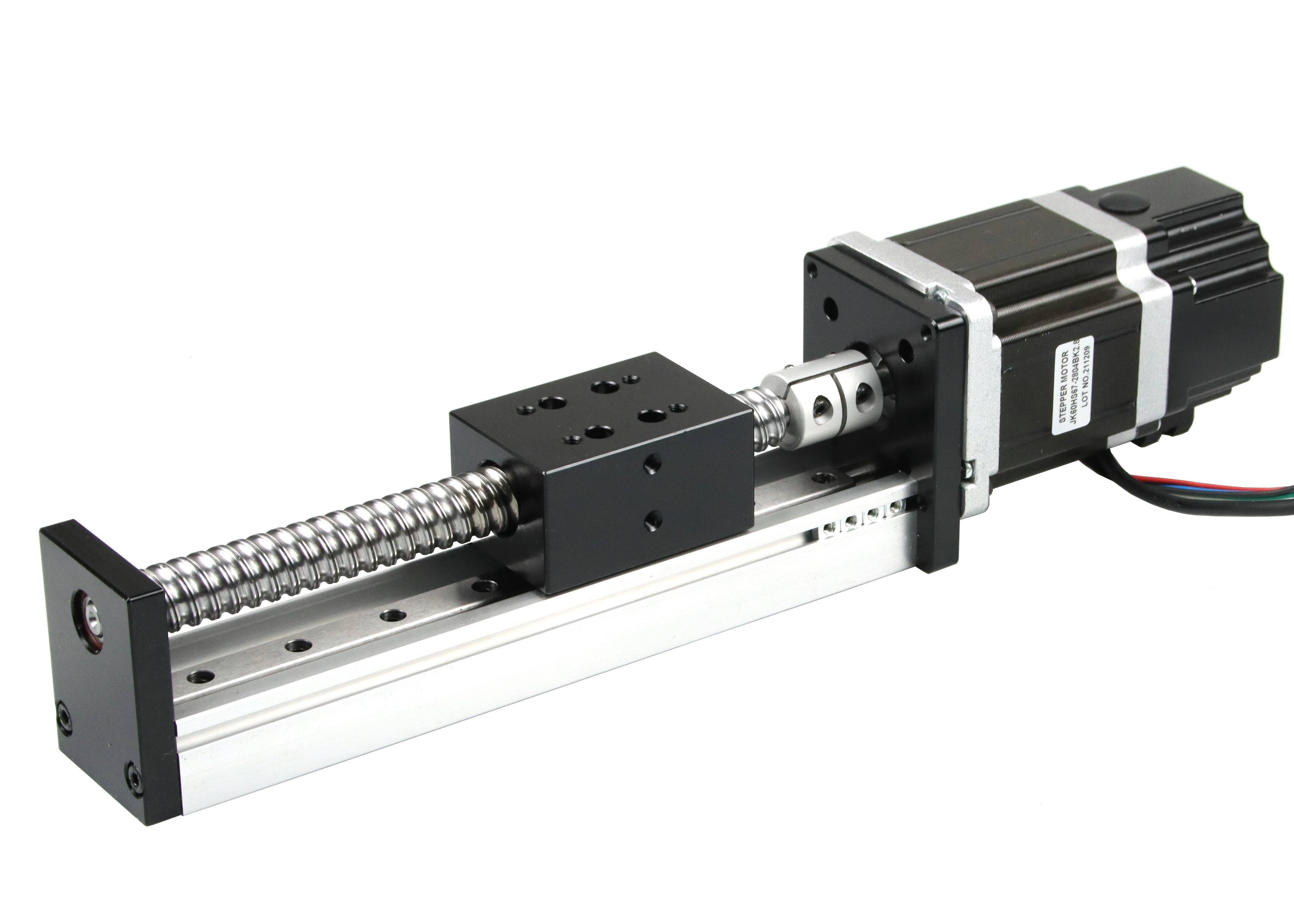

Details of Nema24 Linear Motion Ball Screw:

1.8 Degree Nema 24 Precision Variable Stepper Cross Motor 2 Phase 0

1.8 Degree Nema 24 Precision Variable Stepper Cross Motor 2 Phase 1

The drawing of JK60HS67-2804BK2.8:

1.8 Degree Nema 24 Precision Variable Stepper Cross Motor 2 Phase 2

1.8 Degree Nema 24 Precision Variable Stepper Cross Motor 2 Phase 3

1.8 Degree Nema 24 Precision Variable Stepper Cross Motor 2 Phase 4

1.8 Degree Nema 24 Precision Variable Stepper Cross Motor 2 Phase 5

1.8 Degree Nema 24 Precision Variable Stepper Cross Motor 2 Phase 6

Certifications:

1.8 Degree Nema 24 Precision Variable Stepper Cross Motor 2 Phase 7

Recommend Products:

1.8 Degree Nema 24 Precision Variable Stepper Cross Motor 2 Phase 8

Stepper motor Application:

1.8 Degree Nema 24 Precision Variable Stepper Cross Motor 2 Phase 9

FAQ:

Q: 1. Can you make the gearbox or gearmotor with custom specifications?
A: YES. We have strong R&D capability, also a great term of engineers, each of them have many work years experience.

Q: 2. Do you provide the samples?
A: YES. Our company can provide the samples to you

Q:3.Do you provide technology support?
A: YES. Our company have strong R&D capability, we can provide technology support if you need.

Q: 4. why should you buy from us not from other suppliers?
A: Professional one-to-one motor customized . The world's large enterprise of choice for high quality suppliers . ISO9001:2008 quality management system certification, through the CE, ROHS certification.

Q: 5. How to ship to us?
A: We will ship the samples to you according to the DHL or UPS or FEDEX etc account you provide.

Q: 6. How can I know the product is suitable for me?
A: Frist, you need to provide us the more details information about the product. We will recommend the item to you according to your requirement of specification. After you confirm, we will prepare the samples to you. also we will offer some good advances according to your product use.
