Place of Origin: | Jiangsu, China (Mainland) |
Brand Name: | Jkongmotor |
Certification: | CE, ROHS,ISO9001 |
Model Number: | JK57HS112-3004 |
Minimum Order Quantity: | 3-10pcs |
---|---|
Price: | US $20.95 - US $168.00 |
Packaging Details: | with export carton . big quantity with pallet |
Delivery Time: | For samples , 7-25 days / For batch , 15-40days |
Payment Terms: | T/T , paypal , Western Union, L/C |
Supply Ability: | 50000pcs/month |
Phase: | 2 | Type: | Hybrid |
---|---|---|---|
Step Angle(degrees): | 1.8 Degree | Holding Torque: | 3N.m |
Current / Phase: | 3A | Lead Wires: | 4 |
Voltage: | 3.78v | Motor Length: | 112mm |
Shaft Length: | 21mm | Diameter Of Shaft: | 8mm |
MOQ: | 10pcs | ||
Highlight: | 3.0NM 2 phase Hybrid Stepper Motor,4 Axis Hybrid stepper motor,4 Axis hybrid synchronous stepper |
Step angle | 1.8° |
Temperature rise | below 80 ℃ |
Ambient temperature | -20 ℃ ~ + 50 ℃ |
Insulation resistance | minimum 100MΩ, 500VDC |
Dielectric strength | 500VAC for 1 minute |
Shaft radial clearance | 0.02 max (450 g load) |
Shaft axial clearance | 0.08Max. (450 g load) |
Maximum radial force | 75N (20mm from flange) |
Maximum axial force | 15N |
The parameters of 57mm stepper motor:
Product Name: Nema23 stepper motor
Model: JK57HS112-3004
Number of Phase: 2
Step Angle: 1.8 Degree
No. of Leads: 4
Rated Voltage: 3.78V
Rated Current: 4.2 Amps
Holding Torque: 3N.m
Motor Diameter: 57mm
Motor length:112mm
Shaft Length: 21mm
Shaft Diameter: 8mm
Model No. |
Step Angle |
Motor Length |
Current /Phase |
Resistance /Phase |
Inductance /Phase |
Holding Torque |
# of Leads |
Detent Torque |
Rotor Inertia |
Mass |
( °) | (L)mm | A | Ω | mH | N.m | No. | g.cm | g.cm2![]() |
Kg | |
JK57HS41-1006 | 1.8 | 41 | 1 | 7.1 | 8 | 0.48 | 6 | 250 | 150 | 0.47 |
JK57HS41-2008 | 1.8 | 41 | 2 | 1.4 | 1.4 | 0.39 | 8 | 250 | 150 | 0.47 |
JK57HS41-2804 | 1.8 | 41 | 2.8 | 0.7 | 1.4 | 0.55 | 4 | 250 | 150 | 0.47 |
JK57HS51-1006 | 1.8 | 51 | 1 | 6.6 | 8.2 | 0.72 | 6 | 300 | 230 | 0.59 |
JK57HS51-2008 | 1.8 | 51 | 2 | 1.8 | 2.7 | 0.9 | 8 | 300 | 230 | 0.59 |
JK57HS51-2804 | 1.8 | 51 | 2.8 | 0.83 | 2.2 | 1.01 | 4 | 300 | 230 | 0.59 |
JK57HS56-2006 | 1.8 | 56 | 2 | 1.8 | 2.5 | 0.9 | 6 | 350 | 280 | 0.68 |
JK57HS56-2108 | 1.8 | 56 | 2.1 | 1.8 | 2.5 | 1 | 8 | 350 | 280 | 0.68 |
JK57HS56-2804 | 1.8 | 56 | 2.8 | 0.9 | 2.5 | 1.2 | 4 | 350 | 280 | 0.68 |
JK57HS64-2804 | 1.8 | 64 | 2.8 | 0.8 | 2.3 | 1 | 4 | 400 | 300 | 0.75 |
JK57HS76-2804 | 1.8 | 76 | 2.8 | 1.1 | 3.6 | 1.89 | 4 | 600 | 440 | 1.1 |
JK57HS76-3006 | 1.8 | 76 | 3 | 1 | 1.6 | 1.35 | 6 | 600 | 440 | 1.1 |
JK57HS76-3008 | 1.8 | 76 | 3 | 1 | 1.8 | 1.5 | 8 | 600 | 440 | 1.1 |
JK57HS82-3004 | 1.8 | 82 | 3 | 1.2 | 4 | 2.1 | 4 | 1000 | 600 | 1.2 |
JK57HS82-4008 | 1.8 | 82 | 4 | 0.8 | 1.8 | 2 | 8 | 1000 | 600 | 1.2 |
JK57HS82-4204 | 1.8 | 82 | 4.2 | 0.7 | 2.5 | 2.2 | 4 | 1000 | 600 | 1.2 |
JK57HS100-4204 | 1.8 | 100 | 4.2 | 0.75 | 3 | 3 | 4 | 1100 | 700 | 1.3 |
JK57HS112-3004 | 1.8 | 112 | 3 | 1.6 | 7.5 | 3 | 4 | 1200 | 800 | 1.4 |
JK57HS112-4204 | 1.8 | 112 | 4.2 | 0.9 | 3.8 | 3.1 | 4 | 1200 | 800 | 1.4 |
Power Supply Model | Input voltage | Ouput voltage | Power | Weight | Size |
S-120-24 | AC100-240V | DC24V | 120W | 0.3kg | 129*99*40mm |
S-120-24 | AC110V/220V | DC24V | 120W | 0.45kg | 199*99*42mm |
S-240-24 | AC100-240V | DC24V | 240W | 0.48kg | 159*99*42mm |
S-240-24 | AC110V/220V | DC24V | 240W | 0.6kg | 200*110*50mm |
S-480-24 | AC110V/220V | DC24V | 480W | 0.75kg | 215*115*50mm |
S-200-36 | AC110V/220V | DC36V | 200W | 0.48kg | 199*99*42mm |
S-360-36 | AC110V/220V | DC36V | 360W | 0.7kg | 215*115*50mm |
S-720-36 | AC110V/220V | DC36V | 720W | 1.35kg | 245*245*65mm |
Power Supply Features:
You may receive:

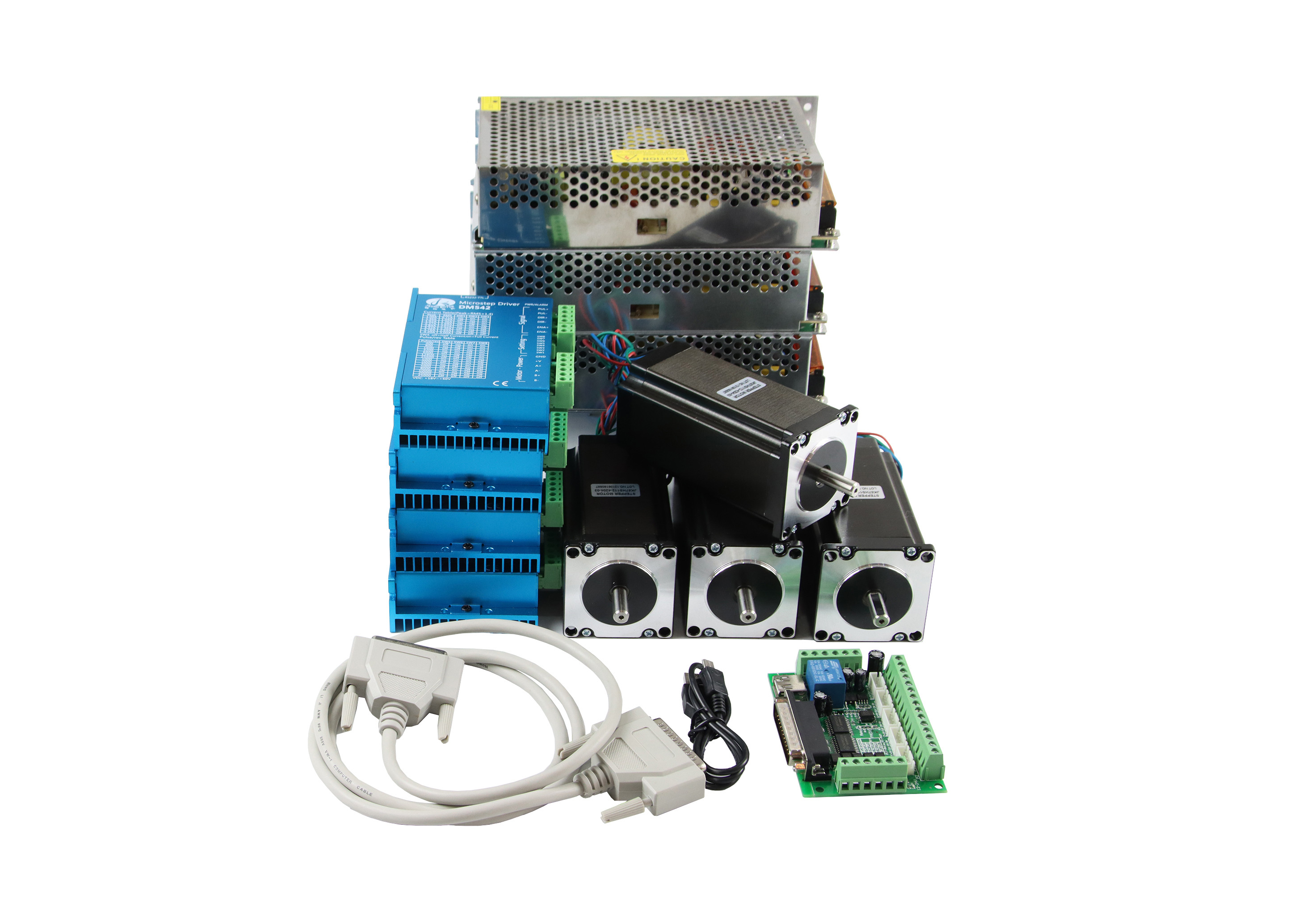

1. 3 or 4 Pcs JK57HS112 (Nema 23 Hybrid Stepper Motor) + 1 / 2 / 3 / 4 Pcs Power Supply + 4 PCS JKDM542 Driver + other parts
Noted: If you need other motor combinations, please send inquiry to us or contact us directly.
No. | Output Voltage | Motor Quantity | Supply Quantity | Driver | Other |
1 | 24V | 4pcs stepper motor | 1 / 2 / 3 / 4 PCS | 4pcs —— JKDM542 | board + cable + usb |
2 | 36V | 4pcs stepper motor | 1 / 2 / 3 / 4 PCS | 4pcs —— JKDM542 |
Motor Features:
1. Low heat (static, the current is almost zero, no heat).
2.Smoothing (based on the feedback vector space vector current control algorithm and vector smoothing filtering technology, the traditional stepping motor troubled low frequency resonance has a very good resistance).
3. Applicable industry: dispenser / woodworking machine / welding machine / screw machine / zipper machine / winding machine / placement machine / packaging machine / engraving machine / laser machine / LED / electronic equipment.
4. Large torque output in some cases can simplify the complexity of the machine.
Application:
JKONGMOTOR’s stepper motors are widely used in engraving machine, cutting plotter, textile machine, 3D printer, medical devices,stage lighting equipment, robot, CNC machine, music fountain and other industrial automatic equipment.
Features | |
Input voltage | 18~60V DC |
Output current | 1.0A~4.2A(Peak) |
Input Current | <4A |
Humidity | Not condensation, no water droplets |
Consumption | 80W |
Using environment | -10 ~ 45 ℃, avoid dust and corrosive gas |
Storage environment | -40~+70℃ |
Motor Driver Features:
1,Average current control, 2-phase sinusoidal output current drive
2,8 channels output phase current setting
3,Offline command input terminal
4,High start speed
5,High hording torque under high speed
6,High performance, low price
7,Opto-isolated signal I/O
8,Overvoltage, under voltage, overcorrect, phase short circuit protection
9,15 channels subdivision and automatic idle-current reduction
10 ,Motor torque is related with speed, but not related with step/revolution
The connection between the driver and the two-phase hybrid stepping motor is four-wire. The motor windings are connected in parallel and in series, and the connection method is good. The high-speed performance is good, but the driver current is large (1.73 times the motor winding current). The drive current is equal to the motor winding current.
The characteristic of the output torque:
1) The larger the actual current of the motor, the greater the output torque, but the more copper loss (P=I²R) of the motor, the more heat the motor generates;
2) The higher the supply voltage of the driver, the higher the high-speed torque of the motor;
3) It can be seen from the moment frequency characteristic diagram of the stepping motor that the high speed is smaller than the medium and low speed torque.

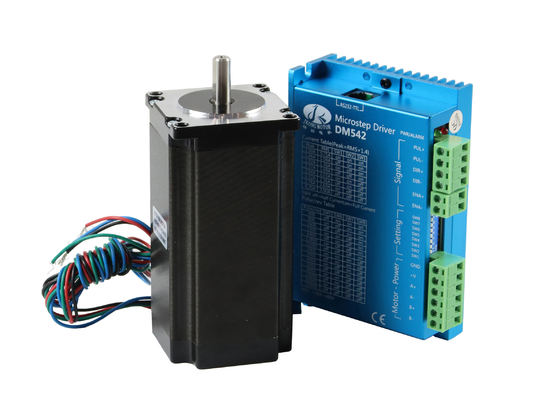

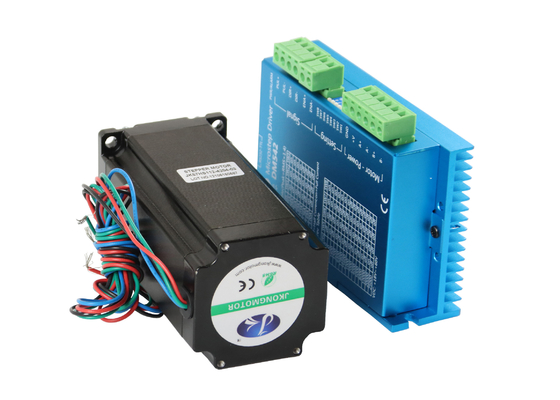

Details of Nema23 3axis stepper motor:
Introdution of JKONGMOTOR:
Nema86 stepper motor Application:
FAQ:
Q: 1. Can you make the gearbox or gearmotor with custom specifications?
A: YES. We have strong R&D capability, also a great term of engineers, each of them have many work years experience.
Q: 2. Do you provide the samples?
A: YES. Our company can provide the samples to you
Q:3.Do you provide technology support?
A: YES. Our company have strong R&D capability, we can provide technology support if you need.
Q: 4. why should you buy from us not from other suppliers?
A: Professional one-to-one motor customized . The world's large enterprise of choice for high quality suppliers . ISO9001:2008 quality management system certification, through the CE, ROHS certification.
Q: 5. How to ship to us?
A: We will ship the samples to you according to the DHL or UPS or FEDEX etc account you provide.
Q: 6. How can I know the product is suitable for me?
A: Frist, you need to provide us the more details information about the product. We will recommend the item to you according to your requirement of specification. After you confirm, we will prepare the samples to you. also we will offer some good advances according to your product use.
