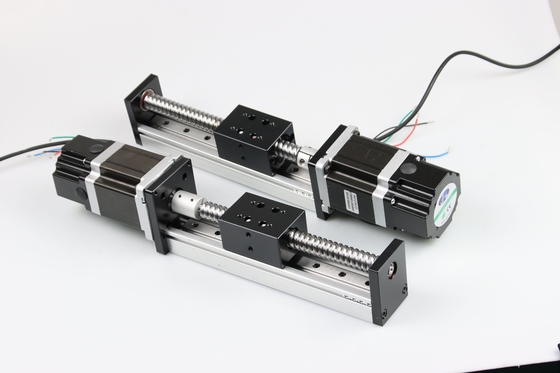

60mm Aluminum Frame Ball Screw Stepper Motor Nema 24

60mm Step Motor nema24 Aluminum Frame High Quality Ball Screw Linear Guide CNC Linear Slider

The NEMA 24 stepper motor linear actuator features easy integration into your applications, a high level of precision, safer performance, and an economical cost. The NEMA 24 stepper motor linear actuator has four form factors available – captive, non-captive external, and electric cylinder linear versions. Let our applications engineering team help you determine whether the NEMA 24 stepper motor linear actuator or one of our other linear actuator solutions is best suited to meet your application’s needs.

Electrical Specification:

• Step Angle Accuracy: ±5%
• Resistance Accuracy: ±10%
• Inductance Accuracy: ±20%
• Temperature Rise: 80°C Max
• Ambient Temperature: -20°C~+50°C
• Insulation Resistance: 100MΩ Min., 500VDC
• Dielectric Strength: 500VAC for one minute
• Shaft Radial Play: 0.02Max (450g-load)
• Shaft Axial Play: 0.08Max (450g-load)

Physical Specification:

• Frame Size: 60*60mm
• Body Length: 88mm
• Shaft Shape: D shaft
• Shaft Diameter: Φ8mm
• Shaft Length: 24mm
• Number of Leads: 8
• Lead Length: 300mm

Specification of JK60HS motors:

Details of Nema24 Linear Motion Ball Screw:

The drawing of JK60HS67-2804BK2.8:

Certifications:

Recommend Products:

Stepper motor Application:

FAQ:

Q: 1. Can you make the gearbox or gearmotor with custom specifications?
A: YES. We have strong R&D capability, also a great term of engineers, each of them have many work years experience.

Q: 2. Do you provide the samples?
A: YES. Our company can provide the samples to you

Q:3.Do you provide technology support?
A: YES. Our company have strong R&D capability, we can provide technology support if you need.

Q: 4. why should you buy from us not from other suppliers?
A: Professional one-to-one motor customized . The world's large enterprise of choice for high quality suppliers . ISO9001:2008 quality management system certification, through the CE, ROHS certification.

Q: 5. How to ship to us?
A: We will ship the samples to you according to the DHL or UPS or FEDEX etc account you provide.

Q: 6. How can I know the product is suitable for me?
A: Frist, you need to provide us the more details information about the product. We will recommend the item to you according to your requirement of specification. After you confirm, we will prepare the samples to you. also we will offer some good advances according to your product use.
