| Place of Origin: | Jiangsu, China (Mainland) |
| Brand Name: | Jkongmotor |
| Certification: | CE, ROHS,ISO9001 |
| Model Number: | JK60HS88-4004PX20 |
| Minimum Order Quantity: | 3-10pcs |
|---|---|
| Price: | US$79.75~US$69.88/pcs |
| Packaging Details: | with export carton . big quantity with pallet |
| Delivery Time: | For samples , 7-15 days / For batch , 15-25days |
| Payment Terms: | T/T , paypal , Western Union, L/C |
| Supply Ability: | 100000pcs/month |
| Type: | Nema24 Stepper Motor With Gearbox | Stepper Angle: | 1.8 Dregee |
|---|---|---|---|
| Phase: | 2 | Current: | 4.0A |
| Holding Torque: | 3N.m | Phase Resistance: | 0.65Ω |
| Phase Inductance: | 2.4mH | Insulation Class: | B |
| Motor Diameter: | 60mm | Usage: | Cylinder Valves, Medical Equipment |
| MOQ: | 10pcs | ||
| High Light: | Nema 24 planetary stepper motor,56N.m planetary stepper motor,60mm planetary gearbox stepper motor |
||

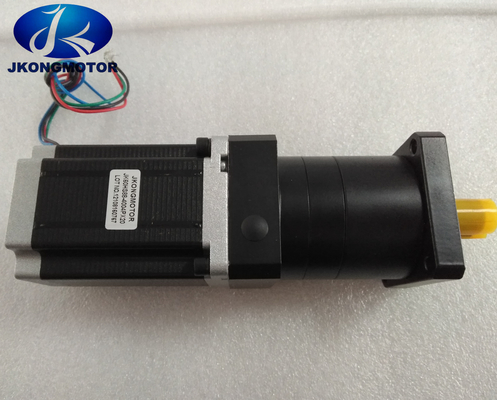

Stepper motor with Planetary Gearbox Reducer and driver full kit
1) Product Name: Stepper motor
Model: JK60HS88-4004PX20
Number of Phase: 2 Phase
Step Angle: 1.8 Degree
Rated current: 4.0A
Phase Resistance: 0.65Ω
Phase Inductance: 2.4mH
Holding Torque: 3N.m
Insulation Class: B
Motor Diameter: 60mm
Motor length:88mm
Weight: 1.4kg
2) Product Name: Planetary Gearbox Reducer
Reduction Ratio: 20:1
Torque after gearbox:56N.m
Weight:1.5kg
3) Product Name: Stepper Driver
Model No.: DM856
Current: 1.3A to 5.6A
Voltage: VDC20V to 80V
Weight:0.6kg
4) Typical applications: Cylinder Valves, Medical equipment
5) Other Products
CHANGZHOU JKONGMOTOR CO.,LTD (Changzhou Jingkong Motor&Electric Appliance Co.,Ltd)is an ISO9001 Professional manufacturer. Was established in 2011 year. We are a professional manufacturer in Changzhou city, China. Production Capacity exceeds more than 1 million motors per year. Our Company offers three major series of products: Hybrid Stepper motors, Brushless Dc motor and Dc Brush motor. We are always continues develop new type models.
We are also have several joint venture companies who specialized in the production of AC servo motor, PM stepper motors, Spindle motor and Motor drivers. We export our motors to more than 30 countries Such as United States, Germany, Russia, Turkey, Brazil and so on.
Jkongmotor sold to major manufacturing Companies for Industry of automation, medical and health care equipment, 3d printer machines, packing devices, Information Technology, household appliance products.
We have an Engineering team with many years of experience in application Engineering, design Engineering with the latest advances equipment. Our Engineering Staff provides the finest quality product with service after the product is delivered to our Customers.
