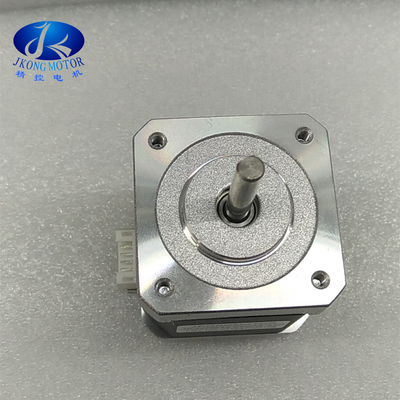

4.8kg.Cm Shaft Nema 17 Stepper Motor For Fireplace

4.8kg.Cm Shaft Nema 17 Stepper Motor For Fireplace

4.8kg.Cm Shaft Nema 17 Stepper Motor For Fireplace
video
4.8kg.Cm Shaft Nema 17 Stepper Motor For Fireplace
Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jkongmotor
Certification: CE, ROHS,ISO9001
Model Number: JK42HS48-0604A-02F
Payment & Shipping Terms:
Minimum Order Quantity: 3-10pcs
Price: US$4.15~US$7.99/pcs
Packaging Details: with export carton . big quantity with pallet
Delivery Time: For samples , 7-15 days / For batch , 15-25days
Payment Terms: T/T , paypal , Western Union, L/C
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Type: Nema17 Stepper Motor Stepper Angle: 1.8 Dregee
Phase: 2 Current: 0.6A
Holding Torque: 4.8kg.cm Phase Resistance: 20Ω
Phase Inductance: 18mH Insulation Class: B
Motor Diameter: 42mm Motor Length: 48mm
MOQ: 10pcs
High Light:

4.8kg.cm shaft stepper motor

,

4.8kg.cm nema 17 stepper motor

,

fireplace nema 17 stepper motor

Customizable 1.8 degree 2 phase 4.8kg.cm Stepper Motor JK42HS48-0604A-02F Fireplace Motor

1) Product Description
item
value
Warranty
1 YEAR
Place of Origin
China
Brand Name
Jkongmotor
Model Number
IHSV57-30-14-36-01-BY
Phase
3
Type
Hybrid
Current / Phase
5.4A
Product name
Nema 23 Closed Loop Stepper Motor
Step angle
1.8 degree
Motor length
127.5mm
Resistance
0.78Ω
Inductance
0.84mH
Holding torque
0.45N.m
Number of leads
4

2) Product Images
4.8kg.Cm Shaft Nema 17 Stepper Motor For Fireplace 0
4.8kg.Cm Shaft Nema 17 Stepper Motor For Fireplace 1
4.8kg.Cm Shaft Nema 17 Stepper Motor For Fireplace 2
3) Product Drawings
4.8kg.Cm Shaft Nema 17 Stepper Motor For Fireplace 3
4) Other Models



Motor series
Phase No.
Step angle
Motor length
Motor size
Leads No.
Holding torque
Nema 8
2 phase
1.8 degree
30~42mm
20x20mm
4
180~300g.cm
Nema 11
2 phase
1.8 degree
32~51mm
28x28mm
4 or 6
430~1200g.cm
Nema 14
2 phase
0.9 or 1.8 degree
27~42mm
35x35mm
4
1000~2000g.cm
Nema 16
2 phase
1.8 degree
20~44mm
39x39mm
4 or 6
650~2800g.cm
Nema 17
2 phase
0.9 or 1.8 degree
25~60mm
42x42mm
4 or 6
1.5~7.3kg.cm

Nema 23
2 phase
0.9 or 1.8 degree
41~112mm
57x57mm
4 or 6 or 8
0.39~3.1N.m
3 phase
1.2 degree
42~79mm
57x57mm
-
0.45~1.5N.m
Nema 24
2 phase
1.8 degree
56~111mm
60x60mm
8
1.17~4.5N.m

Nema 34
2 phase
1.8 degree
67~155mm
86x86mm
4 or 8
3.4~12.2N.m
3 phase
1.2 degree
65~150mm
86x86mm
-
2~7N.m

Nema 42
2 phase
1.8 degree
99~201mm
110x110mm
4
11.2~28N.m
3 phase
1.2 degree
134~285mm
110x110mm
-
8~25N.m

Nema 52
2 phase
1.8 degree
173~285mm
130x130mm
4
13.3~22.5N.m
3 phase
1.2 degree
173~285mm
130x130mm
-
13.3~22.5N.m
Above only for representative products, products of special request can be made according to the customer request.





5) Other Products

4.8kg.Cm Shaft Nema 17 Stepper Motor For Fireplace 4


6) Company Profile

CHANGZHOU JKONGMOTOR CO.,LTD (Changzhou Jingkong Motor&Electric Appliance Co.,Ltd)is an ISO9001 Professional manufacturer. Was established in 2011 year. We are a professional manufacturer in Changzhou city, China. Production Capacity exceeds more than 1 million motors per year. Our Company offers three major series of products: Hybrid Stepper motors, Brushless Dc motor and Dc Brush motor. We are always continues develop new type models.


We are also have several joint venture companies who specialized in the production of AC servo motor, PM stepper motors, Spindle motor and Motor drivers. We export our motors to more than 30 countries Such as United States, Germany, Russia, Turkey, Brazil and so on.


Jkongmotor sold to major manufacturing Companies for Industry of automation, medical and health care equipment, 3d printer machines, packing devices, Information Technology, household appliance products.


We have an Engineering team with many years of experience in application Engineering, design Engineering with the latest advances equipment. Our Engineering Staff provides the finest quality product with service after the product is delivered to our Customers.
