| Place of Origin: | Jiangsu, China (Mainland) |
| Brand Name: | Jkongmotor |
| Certification: | CE, ROHS,ISO9001 |
| Model Number: | JK36HM21-05042-03AF |
| Minimum Order Quantity: | 3-10pcs |
|---|---|
| Price: | US$5.5~US$10.9 |
| Packaging Details: | with export carton . big quantity with pallet |
| Delivery Time: | For samples , 7-15 days / For batch , 15-25days |
| Payment Terms: | T/T , paypal , Western Union, L/C |
| Supply Ability: | 100000pcs/month |
| Name: | Stepper Motor | Leads: | 4 |
|---|---|---|---|
| Current: | 0.5 A | Holding Torque: | 1000 G.cm |
| Step Angle: | 0.9 Degree | Shaft: | 5mm |
| Phase Resistance: | 10 Ω | Phase Inductance: | 8 MH |
| Voltage: | 5 V | Phase: | 2 |
| MOQ: | 10pcs | ||
| Highlight: | Nema 14 CNC Stepper Motor Driver,36HM CNC Stepper Motor Driver,36HM cnc stepper motor controller |
||
36HM 0.9 degree 5V 0.5A 4wire 1000g.Cm Nema 14 CNC Stepper Motor Driver
With the development of science and technology, especially the development of permanent magnet materials, semiconductor technology and computer technology, these stepper motors have been widely used in industrial automation, robotics, textile and medical industries.
1.Genaral Specification of stepper motors:
* Model: JK36HM21-05042-03AF
* Stepping angle: 0.9°
* Voltage: 5V
* Current: 0.5A
* Resistance (Ohms): 10
* Inductance (mH): 8
* Phase: 2 phase
* Rated torque: 1000g/cm
* Diameter for the shaft: 5mm
* Net Weight: 0.13kg
| Step angle | 0.9° |
| Temperature rise | below 80 ℃ |
| Ambient temperature | -20 ℃ ~ + 50 ℃ |
| Insulation resistance | minimum 100MΩ, 500VDC |
| Dielectric strength | 500VAC for 1 minute |
| Shaft radial clearance | 0.02 max (450 g load) |
| Shaft axial clearance | 0.08Max. (450 g load) |
| Maximum radial force | 28N (20mm from flange) |
| Maximum axial force | 10N |
2.Electrical Specification of 36HM stepper moror:
|
Model No. |
Step Angle |
Motor Length |
Current /Phase |
Resistance /Phase |
Inductance /Phase |
Holding Torque |
# of Leads |
Detent Torque |
Rotor Inertia |
Mass |
| ( °) | (L)mm | A | Ω | mH | g.cm | No. | g.cm | g.cm |
Kg | |
| JK36HM12-0304 | 0.9 | 12 | 0.3 | 16.8 | 8.5 | 420 | 4 | 80 | 4 | 0.06 |
| JK36HM18-0404 | 0.9 | 19 | 0.4 | 12 | 5 | 560 | 4 | 100 | 6 | 0.1 |
| JK36HM21-0404 | 0.9 | 21 | 0.425 | 9 | 5 | 810 | 4 | 125 | 7 | 0.13 |

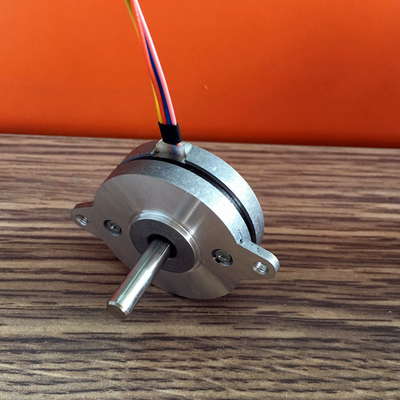

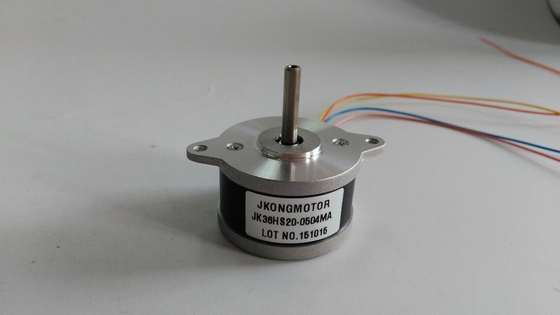

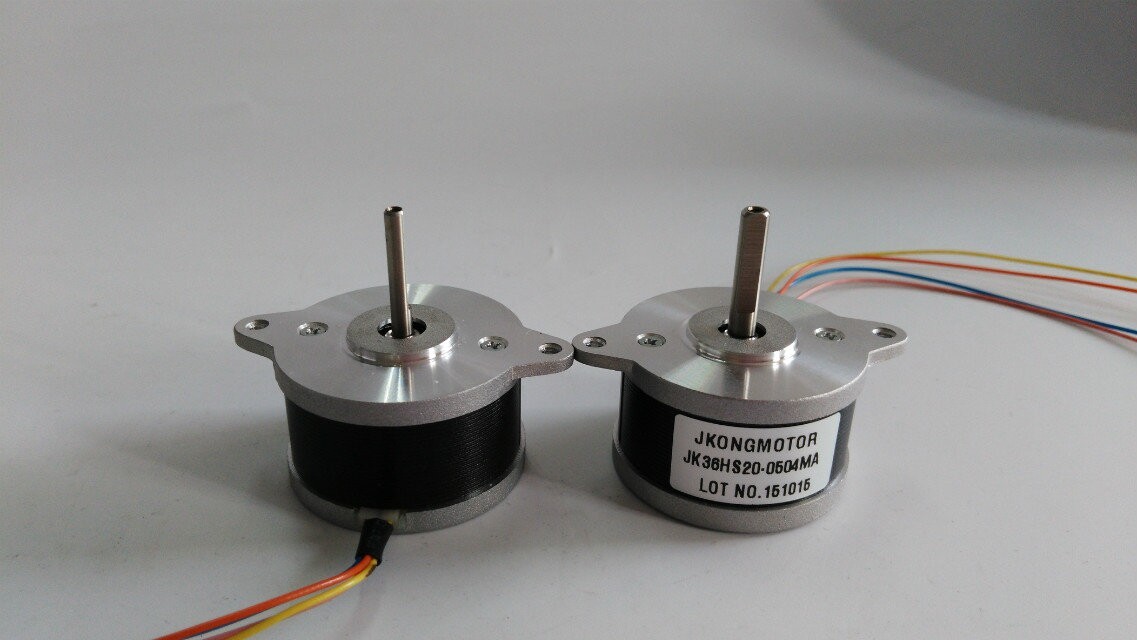

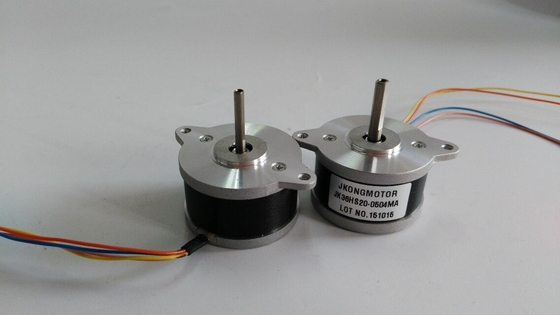

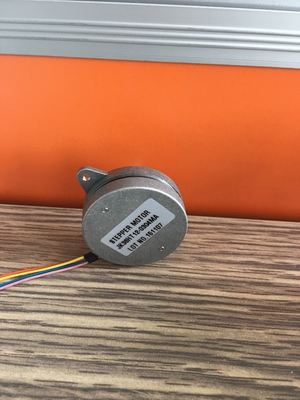

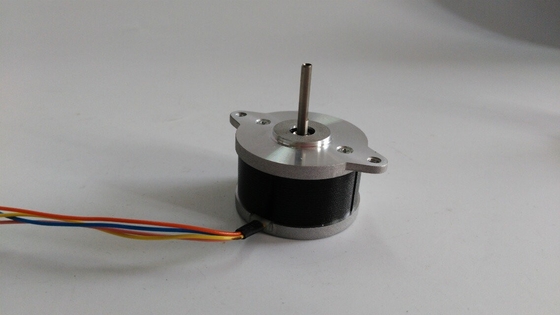

3.Details of JK36HM step motor:
4.Produce equipment:
5.Production Process:
6.Advantages of hybrid Stepper Motor
The motor is simple in construction, reliable.
At the standstill condition, the motor has full torque.
The motors are less costly.
They require little maintenance.
The stepper motor has an excellent and accurate starting, stopping and reversing response.
FAQ(Q=Question, A=Answer)
Q: What's your main products?
A:We currently produce Stepper motors, Brushless Dc Motors, Brushed Dc Motors, Spindle motor, Ac Motors and drivers etc. You can check the specifications for above motors on our website and you can email us to recommend needed motors per your specification too.
Q:How to select a suitable motor?
A:If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed life time and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly.
Q: Do you have customized service for your standard motors?
A:Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape.
Q:Can I have samples for testing first?
A:Yes, definitely you can. After confirmed the needed motor specs, we will quote and provide a proforma invoice for samples.
Q:How do you make sure motor quality?
A:We have our own inspection procedures: for incoming materials, we have signed sample and drawing to make sure qualified incoming materials; for production process, we have tour inspection in the process and final inspection to make sure qualified products before shipping.
