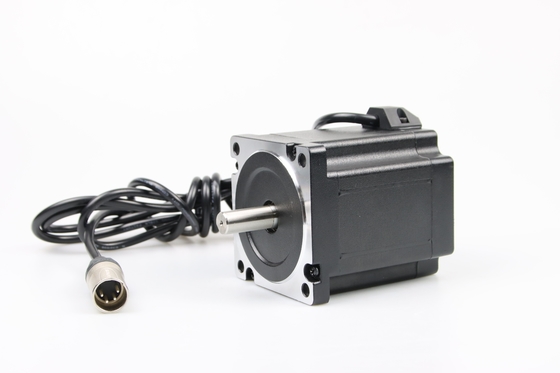

1.8 Degree Nema34 5.6NM 86mm Hybrid Stepper Motor With Shielded Wire

1.8 Degree Nema34 5.6NM 86mm Hybrid Stepper Motor With Shielded Wire

1.8 Degree Nema34 5.6NM 86mm Hybrid Stepper Motor With Shielded Wire
video
1.8 Degree Nema34 5.6NM 86mm Hybrid Stepper Motor With Shielded Wire
Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jkongmotor
Certification: CE, ROHS,ISO9001
Model Number: JK86HS97-2304-01JF
Payment & Shipping Terms:
Minimum Order Quantity: 3PCS~10PCS
Price: US$35.85~US$55.8
Packaging Details: with export carton . big quantity with pallet
Delivery Time: For samples , 7-15 days / For batch , 15-25days
Payment Terms: T/T , paypal , Western Union, L/C
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Name: Stepper Motor Current: 6.51A
Holding Torque: 5.6N.m Step Angle: 1.8 Degree
Shaft: 12.7mm Phase Resistance: 0.4Ω
Phase Inductance: 3mH Voltage: 2.15v
Phase: 2 Shaft Length: 30.2mm
Driver: DM860H/JKD2060H
High Light:

Shielded Wire Hybrid Stepper Motor

,

1.8 Degree Nema34 Stepper Motor

,

Shielded Wire Nema34 Stepper Motor

1.8 degree nema34 5.6N.m step motor with shielded wire and connector 86mm stepper motor



1.Electrical Specification:


Manufacturer Part Number: JK86HS97-2304-01JF
Number of phase: 2
Step Angle: 1.8 deg
Holding Torque: 5.6N.m (800oz.in)
Rated Current/phase: 6.51 A
Phase Resistance: 0.4 ohms± 10%
Inductance: 3 mH ± 20%(1KHz)


2.Genaral Specification of 86mm hybrid stepper motor:



  • Step angle: 0.9°
  • Temperature rise: below 80 ℃
  • Ambient temperature: -20 ℃ ~ + 50 ℃
  • Insulation resistance: minimum 100MΩ, 500VDC
  • Dielectric strength: 500VAC for 1 minute
  • Shaft radial clearance: 0.02 max (450 g load)
  • Shaft axial clearance: 0.08Max. (450 g load)
  • Maximum radial force: 28N (20mm from flange)
  • Maximum axial force: 10N





3.Electrical Specification of Nema34 stepper motors:

Model No.

Step Angle

Motor Length

Current

/Phase

Resistance

/Phase

Inductance

/Phase

Holding Torque

# of Leads

Detent Torque

Rotor Inertia

Mass

  ( °) (L)mm A Ω mH N.m No. Kg.cm g.cm1.8 Degree Nema34 5.6NM 86mm Hybrid Stepper Motor With Shielded Wire 0 Kg
JK86HS68-5904 1.8 67 5.9 0.28 1.7 3.4 4 0.8 1000 1.7
JK86HS68-2808 1.8 67 2.8 1.4 3.9 3.4 8 0.8 1000 1.7
JK86HS78-5504 1.8 78 5.5 0.46 4.0 4.6 4 1.2 1400 2.3
JK86HS78-4208 1.8 78 4.2 0.75 3.4 4.6 8 1.2 1400 2.3
JK86HS97-4504 1.8 97 4.5 0.66 3.0 5.8 4 1.7 2100 3.0
JK86HS97-4008 1.8 97 4.0 0.98 4.1 4.7 8 1.7 2100 3.0
JK86HS100-6004 1.8 100 6.0 0.36 2.8 7.0 4 1.9 2200 3.1
JK86HS115-6004 1.8 115 6.0 0.6 6.5 8.7 4 2.4 2700 3.8
JK86HS115-4208 1.8 115 4.2 0.9 6.0 8.7 8 2.4 2700 3.8
JK86HS126-6004 1.8 126 6.0 0.58 6.5 6.3 4 2.9 3200 4.5
JK86HS155-6004 1.8 155 6.0 0.68 9.0 13.0 4 3.6 4000 5.4
JK86HS155-4208 1.8 155 4.2 1.25 8.0 12.2 8 3.6 4000 5.4

Above only for representative products, products of special request can be made according to the customer request.



4.Drawing of JK86HS97 stepper motor:
1.8 Degree Nema34 5.6NM 86mm Hybrid Stepper Motor With Shielded Wire 1





5. The picture of JK86HS97 :



1.8 Degree Nema34 5.6NM 86mm Hybrid Stepper Motor With Shielded Wire 2



1.8 Degree Nema34 5.6NM 86mm Hybrid Stepper Motor With Shielded Wire 3

1.8 Degree Nema34 5.6NM 86mm Hybrid Stepper Motor With Shielded Wire 4



6.Produce equipment:

1.8 Degree Nema34 5.6NM 86mm Hybrid Stepper Motor With Shielded Wire 5

7.Production Process:
1.8 Degree Nema34 5.6NM 86mm Hybrid Stepper Motor With Shielded Wire 61.8 Degree Nema34 5.6NM 86mm Hybrid Stepper Motor With Shielded Wire 7

8.Advantages of hybrid Step Motor:



The motor is simple in construction, reliable.
At the standstill condition, the motor has full torque.
The motors are less costly.
They require little maintenance.
The stepper motor has an excellent and accurate starting, stopping and reversing response.

   9.Applications of electric motor:

  • As the stepper motor are digitally controlled using an input pulse, they are suitable for use with computer controlled systems.
  • They are used in numeric control of machine tools.
  • Used in tape drives, floppy disc drives, printers and electric watches.
  • The stepper motor also use in X-Y plotter and robotics.
  • It has wide application in textile industries and integrated circuit fabrications.
  • The other applications of the Stepper Motor are in spacecrafts launched for scientific explorations of the planets etc.
  • These motors also find a variety of commercial, medical and military applications and also used in the production of science fiction movies.
  • Stepper motors of microwatts are used in the wrist watches.
  • In the machine tool, the stepper motors with ratings of several tens of kilowatts is used.

1.8 Degree Nema34 5.6NM 86mm Hybrid Stepper Motor With Shielded Wire 8

1.8 Degree Nema34 5.6NM 86mm Hybrid Stepper Motor With Shielded Wire 9

FAQ(Q=Question, A=Answer)

Q: What's your main products?
A:We currently produce Stepper motors, Brushless Dc Motors, Brushed Dc Motors, Spindle motor, Ac Motors and drivers etc. You can check the specifications for above motors on our website and you can email us to recommend needed motors per your specification too.



Q:How to select a suitable motor?
A:If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed life time and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly.



Q: Do you have customized service for your standard motors?
A:Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape.



Q:Can I have samples for testing first?
A:Yes, definitely you can. After confirmed the needed motor specs, we will quote and provide a proforma invoice for samples.



Q:How do you make sure motor quality?
A:We have our own inspection procedures: for incoming materials, we have signed sample and drawing to make sure qualified incoming materials; for production process, we have tour inspection in the process and final inspection to make sure qualified products before shipping.
