High RPM 16mm 24v 11700rpm 6.7W Brushless Coreless Planetary Gear Motor

High RPM 16mm 24v 11700rpm 6.7W Brushless Coreless Planetary Gear Motor

  • High RPM 16mm 24v 11700rpm 6.7W Brushless Coreless Planetary Gear Motor
  • High RPM 16mm 24v 11700rpm 6.7W Brushless Coreless Planetary Gear Motor
  • High RPM 16mm 24v 11700rpm 6.7W Brushless Coreless Planetary Gear Motor
High RPM 16mm 24v 11700rpm 6.7W Brushless Coreless Planetary Gear Motor
Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jkongmotor
Certification: CE, ROHS,ISO9001
Model Number: JK80BLS01-19-IE
Payment & Shipping Terms:
Minimum Order Quantity: 3-10pcs
Price: US $69 - 78 / Unit
Packaging Details: with export carton . big quantity with pallet
Delivery Time: For samples , 7-15 days / For batch , 15-25days
Payment Terms: T/T , paypal , Western Union, L/C
Supply Ability: 30000pcs/month
Contact Now
Detailed Product Description
Product Name: 16mm Coreless Dc Motor Commutation: Brushless
Protect Feature: Totally Enclosed Construction: Series Wound
Rated Speed: 11700rpm Rated Voltage: 12v
Rated Power: 6.7W Torque: 5.75 MNm
Shaft Type: Leadscrew TR4.77x10.16 Feature: Bldc Motor With Gearbox, Encoder
High Light:

16mm brushless coreless dc motor

,

11700rpm Brushless Planetary Gear motor

,

Totally Enclosed 24v Brushless motor

High RPM 16mm 24v 11700rpm 6.7W Brushless Coreless Motors Planetary Gear-motor

16mm 12v 24v bldc motor Specifications:

itemvalue
Warranty3months-1year
Place of OriginChina
Brand NameJKONGMOTOR
Model Number16mm coreless dc motor
UsageBOAT, Car, Electric Bicycle, FAN, Home Appliance, Cosmetic instrument, SMART HOME
TypeBrushless Motor
Torque5.75 mNm
ConstructionSeries Wound
CommutationBrushless
Protect FeatureTotally Enclosed
Speed(RPM)11700rpm
Continuous Current(A)0.85A
EfficiencyIE 1
Product Name16mm coreless dc motor
Typebrushless dc motor / bldc motor
Rated Voltage12V
Rated Speed11700rpm
Rated Power6.7W
Shaft typeLeadscrew TR4.77x10.16
Keywordsdc coreless motor
Weight85g
Featurebldc motor with gearbox, encoder
Itemgeared bldc motor



Rated parameter valueUnitE51604008 / E51604008
Rated voltageV12
Rated speedrpm11700
Rared current(max.continuous current)A0.85
Rated torque(max.continuous torque)mNm5.75
Rated powerW6.7
Motor Datasheet
No load speedrpm15000
No load currentmA80
Stall currentA3.5
Stall torquemNm25.8
Max. efficiency%72
Terminal resistance phase to phase3.4
Terminal inductance phase to phasemH0.17
Back-EMF constantmV/rpm0.78
Torque constantmNm/A7.47
Speed constantrpm/V1279
Current constantA/mNm0.134
Speed / torque gradientrpm/mNm582.43
Mechanical time constantms5.86
Rotor inertiagcm²0.96
General specifications
Operating temperature range-30.....+125
winding Max permissible+125
Bearing type ball bearings, preloaded
Magnet material NdFeB
Housing material stainless steel / aluminium
Direction of rotation electronically reversible
Max. speedrpm30000
Number of pole pairs 1
Number of phases 3
Hall sensors digital with Pull-up Resistor
Axial playmm≤0.2
Direction of force push
Aixial at standstill (push or pull)N<=40
Weight of motorg85

Above only for representative products, products of special request can be made according to the customer request. This coreless dc motor we can do Φ16mm, Φ22mm, Φ30mm, Φ32mm, Φ35mm, Φ43mm.

Features:
High energy density; Start and brake quickly, and the reaction is very fast; Less electromagnetic interference; Small rotation fluctuation; No torque lag; Good stability; Good cooling effect; High peak torque.

Application:
use for robots stepper motor, electronic automatic equipment stepping motor , medical
instrument stepping motor, advertisementing instrument stepper motor, lighting& audio equipment stepper motor ,printer stepper
motor, textile machinery stepper motor. Cnc router stepper motor.


Details of  Brushless dc motor:

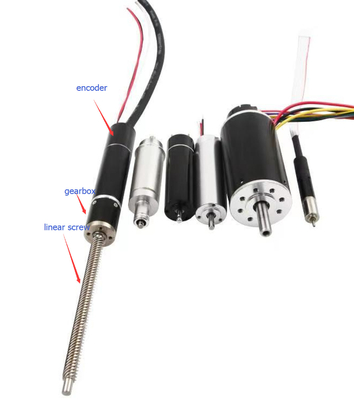

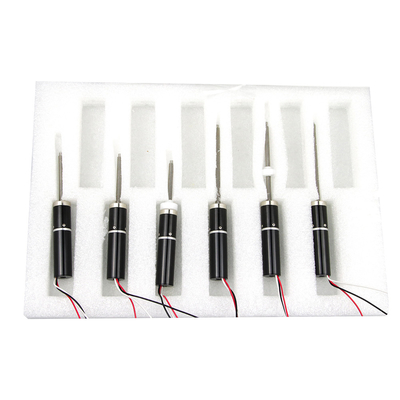

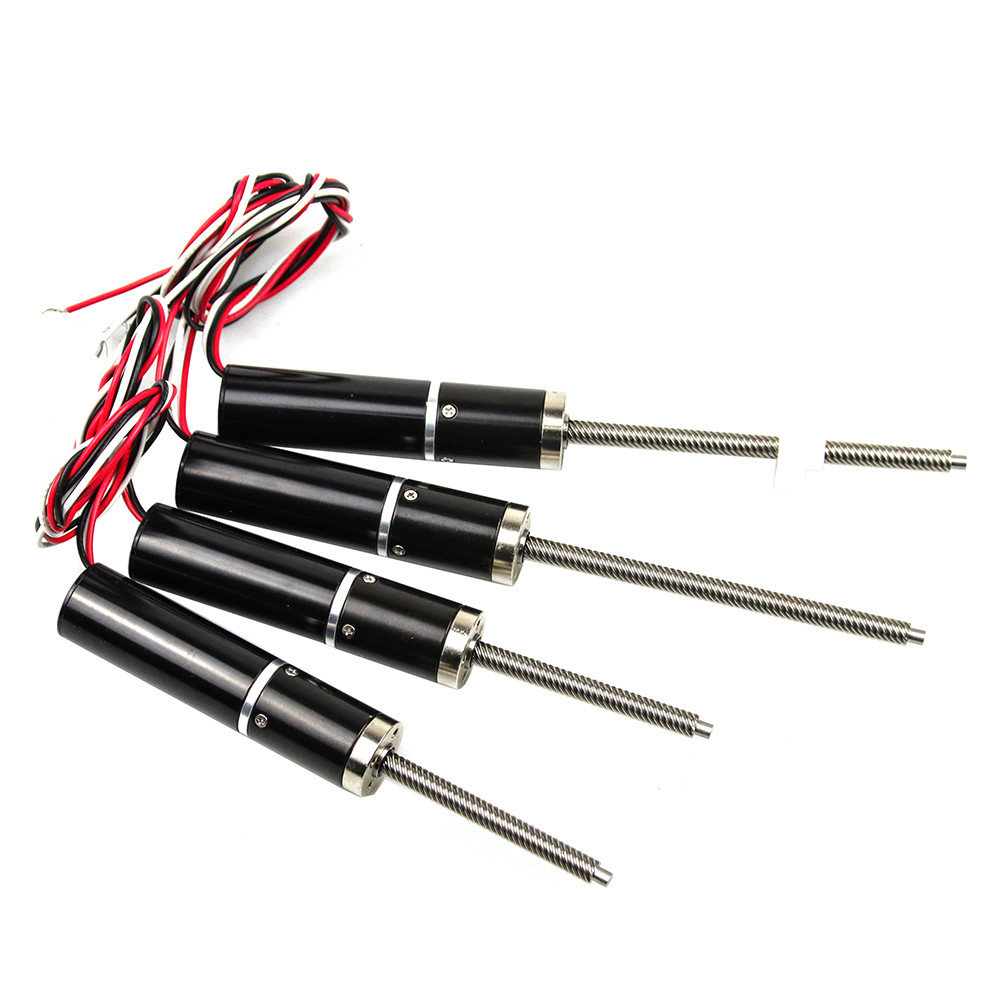

High RPM 16mm 24v 11700rpm 6.7W Brushless Coreless Planetary Gear Motor 0

Drawing:
High RPM 16mm 24v 11700rpm 6.7W Brushless Coreless Planetary Gear Motor 1

High RPM 16mm 24v 11700rpm 6.7W Brushless Coreless Planetary Gear Motor 2
High RPM 16mm 24v 11700rpm 6.7W Brushless Coreless Planetary Gear Motor 3
High RPM 16mm 24v 11700rpm 6.7W Brushless Coreless Planetary Gear Motor 4High RPM 16mm 24v 11700rpm 6.7W Brushless Coreless Planetary Gear Motor 5
High RPM 16mm 24v 11700rpm 6.7W Brushless Coreless Planetary Gear Motor 6
High RPM 16mm 24v 11700rpm 6.7W Brushless Coreless Planetary Gear Motor 7
FAQ(Q=Question, A=Answer)
Q: What's your main products?
A:We currently produce Stepper motors, Brushless Dc Motors, Brushed Dc Motors, Spindle motor, Ac Motors and drivers etc. You can check the specifications for above motors on our website and you can email us to recommend needed motors per your specification too.

Q:How to select a suitable motor?
A:If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed life time and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly.

Q: Do you have customized service for your standard motors?
A:Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape.

Q:Can I have samples for testing first?
A:Yes, definitely you can. After confirmed the needed motor specs, we will quote and provide a proforma invoice for samples.

Q:How do you make sure motor quality?
A:We have our own inspection procedures: for incoming materials, we have signed sample and drawing to make sure qualified incoming materials; for production process, we have tour inspection in the process and final inspection to make sure qualified products before shipping.
