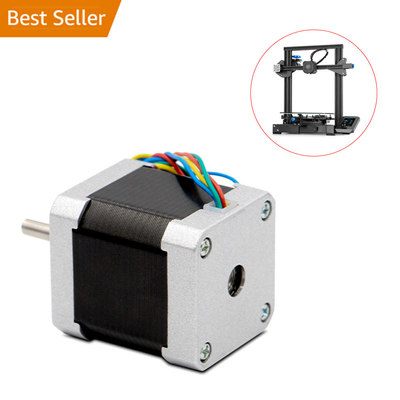

48mm 17hs4401 42byg CNC Robot Hybrid Stepper Motor digitally controlled

48mm 17hs4401 42byg CNC Robot Hybrid Stepper Motor digitally controlled

  • 48mm 17hs4401 42byg CNC Robot Hybrid Stepper Motor digitally controlled
  • 48mm 17hs4401 42byg CNC Robot Hybrid Stepper Motor digitally controlled
  • 48mm 17hs4401 42byg CNC Robot Hybrid Stepper Motor digitally controlled
  • 48mm 17hs4401 42byg CNC Robot Hybrid Stepper Motor digitally controlled
48mm 17hs4401 42byg CNC Robot Hybrid Stepper Motor digitally controlled
Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jkongmotor
Certification: CE, ROHS,ISO9001
Model Number: JK42HS48-0404
Payment & Shipping Terms:
Minimum Order Quantity: 3-10pcs
Price: US$4.5~US$6.0
Packaging Details: with export carton . big quantity with pallet
Delivery Time: For samples , 7-15 days / For batch , 15-25days
Payment Terms: T/T , paypal , Western Union, L/C
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Name: Stepper Motor Leads: 4
Current: 0.4A Holding Torque: 4.2kg.cm
Step Angle: 1.8 Degree Shaft: 5mm
Phase Resistance: 30Ω Phase Inductance: 45mH
Voltage: 12v Key Word:: 17hs4401 / 42BYGH
MOQ: 10pcs
High Light:

CNC Robot Hybrid Stepper Motor

,

17hs4401 Hybrid Stepper Motor

,

48mm 17hs4401 stepper motor

1.8deg 1.7A 4.2kg.cm 2.55v 42mm Nema17 stepper motor with pulley



1.Genaral Specification of nema 17 stepper motors:

  • Step angle:1.8°
  • Temperature rise:below 80 ℃
  • Ambient temperature:-20 ℃ ~ + 50 ℃
  • Insulation resistance:minimum 100MΩ, 500VDC
  • Dielectric strength:500VAC for 1 minute
  • Shaft radial clearance 0.02 max (450 g load)
  • Shaft axial clearance:0.08Max. (450 g load)
  • Maximum radial force:28N (20mm from flange)
  • Maximum axial force:10N
  • size:Approximately 42x42x48mm



  • Model Name: JK42HS48-0404
  • Rated Voltage: 12V
  • Holding Torque: 4.4KG.CM;
  • Current / Phase: 0.4A
  • Step Angle(degrees): 1.8 Degree
  • Model Number: NEMA17
  • Phase:2 Type: Hybrid
  • Model: JK42HS48-0404
  • Motor length: 48mm
  • Diameter of axle: 5mm


2.Electrical Specification of 42mm stepper moror:

Model No. Step Angle Motor Length

Current

/Phase

Resistance

/Phase

Inductance

/Phase

Holding Torque # of Leads Detent Torque Rotor Inertia Mass
  ( °) (L)mm A Ω mH kg.cm No. g.cm g.cm48mm 17hs4401 42byg CNC Robot Hybrid Stepper Motor digitally controlled 0 Kg
JK42HS25-0404 1.8 25 0.4 24 36 1.8 4 75 20 0.15
JK42HS28-0504 1.8 28 0.5 20 21 1.5 4 85 24 0.22
JK42HS34-1334 1.8 34 1.33 2.1 2.5 2.2 4 120 34 0.22
JK42HS34-0406 1.8 34 0.4 24 15 1.6 6 120 34 0.22
JK42HS34-0956 1.8 34 0.95 4.2 2.5 1.6 6 120 34 0.22
JK42HS40-0406 1.8 40 0.4 30 30 2.6 6 150 54 0.28
JK42HS40-1684 1.8 40 1.68 1.65 3.2 3.6 4 150 54 0.28
JK42HS40-1206 1.8 40 1.2 3 2.7 2.9 6 150 54 0.28
JK42HS48-0406 1.8 48 0.4 30 25 3.1 6 260 68 0.35
JK42HS48-1684 1.8 48 1.68 1.65 2.8 4.4 4 260 68 0.35
JK42HS48-1206 1.8 48 1.2 3.3 2.8 3.17 6 260 68 0.35
JK42HS60-0406 1.8 60 0.4 30 39 6.5 6 280 102 0.5
JK42HS60-1704 1.8 60 1.7 3 6.2 7.3 4 280 102 0.5
JK42HS60-1206 1.8 60 1.2 6 7 5.6 6 280 102 0.5





3.Drawing of 42HS step motor:

48mm 17hs4401 42byg CNC Robot Hybrid Stepper Motor digitally controlled 1

48mm 17hs4401 42byg CNC Robot Hybrid Stepper Motor digitally controlled 2

48mm 17hs4401 42byg CNC Robot Hybrid Stepper Motor digitally controlled 3





4.Produce equipment:



48mm 17hs4401 42byg CNC Robot Hybrid Stepper Motor digitally controlled 4



5.Production Process:

48mm 17hs4401 42byg CNC Robot Hybrid Stepper Motor digitally controlled 5



6.Advantages of Hybrid Stepper Motor



  • The motor is simple in construction, reliable.
  • At the standstill condition, the motor has full torque.
  • The motors are less costly.
  • They require little maintenance.
  • The stepper motor has an excellent and accurate starting, stopping and reversing response.

7.Applications of step motors:

  • As the stepper motor are digitally controlled using an input pulse, they are suitable for use with computer controlled systems.
  • They are used in numeric control of machine tools.
  • Used in tape drives, floppy disc drives, printers and electric watches.
  • The stepper motor also use in X-Y plotter and robotics.
  • It has wide application in textile industries and integrated circuit fabrications.
  • The other applications of the Stepper Motor are in spacecrafts launched for scientific explorations of the planets etc.
  • These motors also find a variety of commercial, medical and military applications and also used in the production of science fiction movies.
  • Stepper motors of microwatts are used in the wrist watches.
  • In the machine tool, the stepper motors with ratings of several tens of kilowatts is used.

48mm 17hs4401 42byg CNC Robot Hybrid Stepper Motor digitally controlled 6

48mm 17hs4401 42byg CNC Robot Hybrid Stepper Motor digitally controlled 7

48mm 17hs4401 42byg CNC Robot Hybrid Stepper Motor digitally controlled 8
