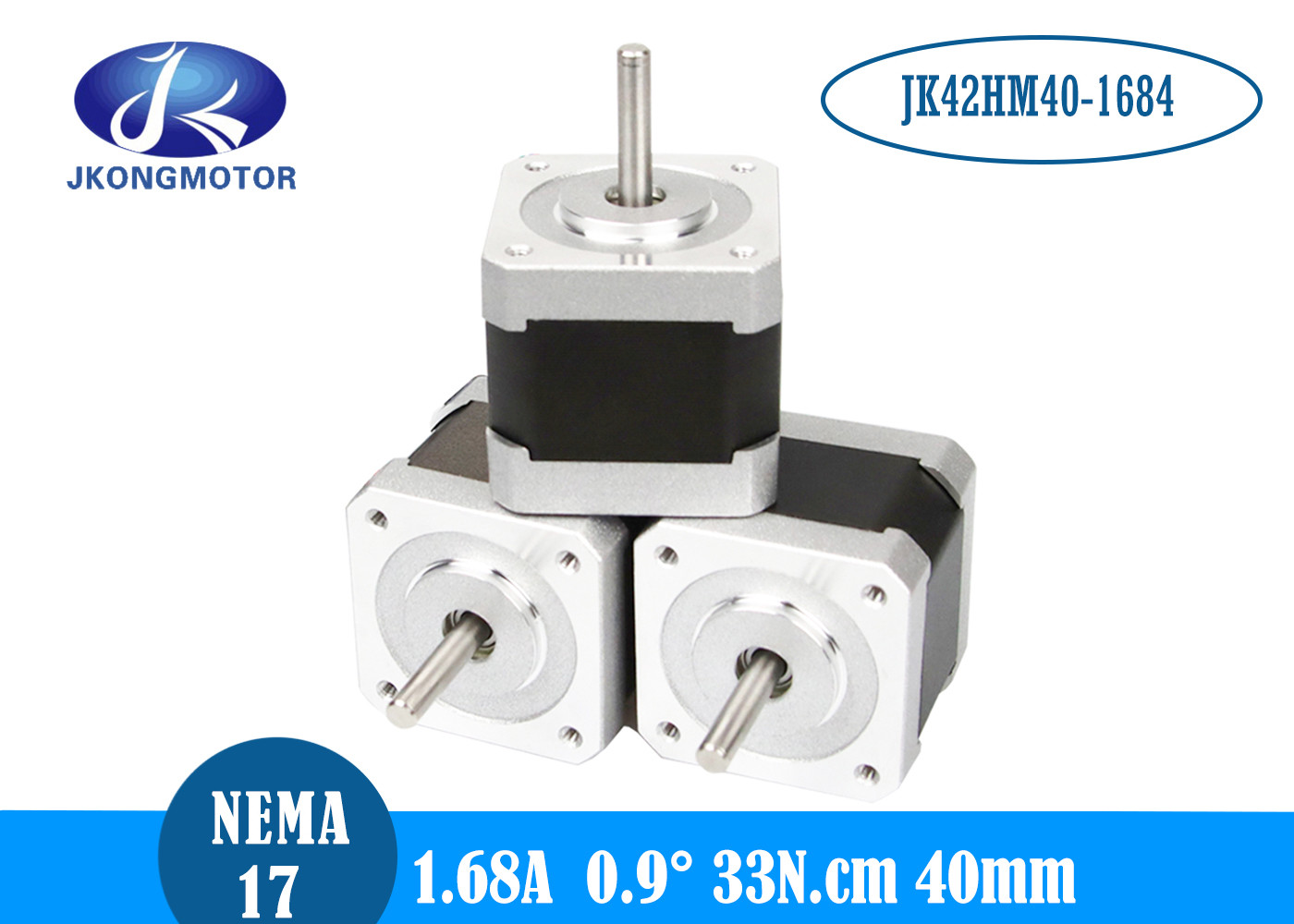

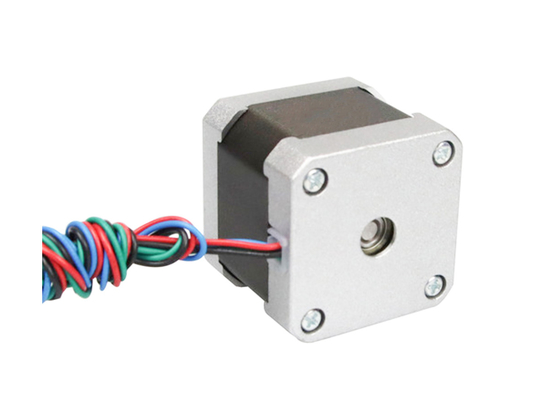

0.9° 1.68A 5mm Round Shaft 40mm Nema 17 Stepper Driver

0.9° 1.68A 5mm round shaft 42mm 40mm Nema 17 Hybrid high precision Stepper Motor

2 phase hybrid stepper motor is a kind of hybrid motor. 2 phase hybrid stepper motor is composed of stator and rotor. The common stator has 8 poles or 4 poles, and a certain number of small teeth are evenly distributed on the pole surface; the upper pole coil can be energized in two directions. Its rotor is also composed of two pieces of teeth evenly distributed on the circumference. The two teeth are staggered by half a pitch. There is an annular permanent magnet with axial magnetization between the two teeth.

1.Genaral Specification of stepper motors:

• Step angle: 0.9°
• Temperature rise: below 80 ℃
• Ambient temperature: -20 ℃ ~ + 50 ℃
• Insulation resistance: minimum 100MΩ, 500VDC
• Dielectric strength: 500VAC for 1 minute
• Shaft radial clearance: 0.02 max (450 g load)
• Shaft axial clearance: 0.08Max. (450 g load)
• Maximum radial force: 28N (20mm from flange)
• Maximum axial force: 10N

2.Electrical Specification of Nema17 stepper moror:

Model No.	Step Angle	Motor Length	Current /Phase	Resistance /Phase	Inductance /Phase	Holding Torque	# of Leads	Detent Torque	Rotor Inertia	Motor Length
	( °)	(L)mm	A	Ω	mH	kg.cm	No.	g.cm	g.cm	Kg
JK42HM34-1334	0.9	34	1.33	2.1	4.2	2.2	4	200	35	0.22
JK42HM34-0316	0.9	34	0.31	38.5	33	1.58	6	200	35	0.22
JK42HM34-0956	0.9	34	0.95	4.2	4.0	1.58	6	200	35	0.22
JK42HM40-1684	0.9	40	1.68	1.65	3.2	3.3	4	220	54	0.28
JK42HM40-0406	0.9	40	0.4	30	30	2.59	6	220	54	0.28
JK42HM40-1206	0.9	40	1.2	3.3	3.4	2.59	6	220	54	0.28
JK42HM48-1684	0.9	48	1.68	1.65	4.1	4.4	4	250	68	0.35
JK42HM48-1206	0.9	48	1.2	3.3	4	3.17	6	250	68	0.35
JK42HM48-0406	0.9	48	0.4	30	38	3.17	6	250	68	0.35
JK42HM60-1684	0.9	60	1.68	1.65	5.0	5.5	4	270	106	0.55

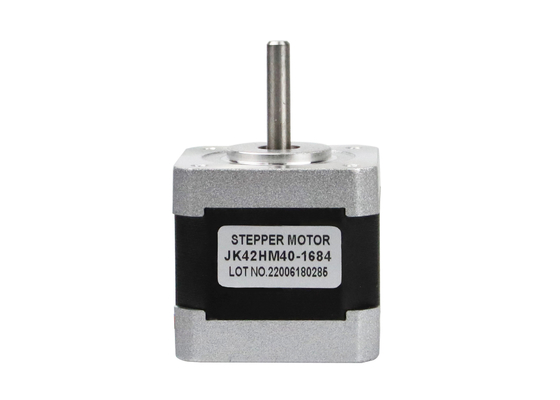

3.Details of JK42HM40 step motor:

4.Produce equipment:



5.Production Process:

6.Advantages of hybrid Stepper Motor

The motor is simple in construction, reliable.
At the standstill condition, the motor has full torque.
The motors are less costly.
They require little maintenance.
The stepper motor has an excellent and accurate starting, stopping and reversing response.

   7.Applications of 42mm electric motor:

• printers
• CNC equipment
• 3D printers
• lasers
• manipulators
