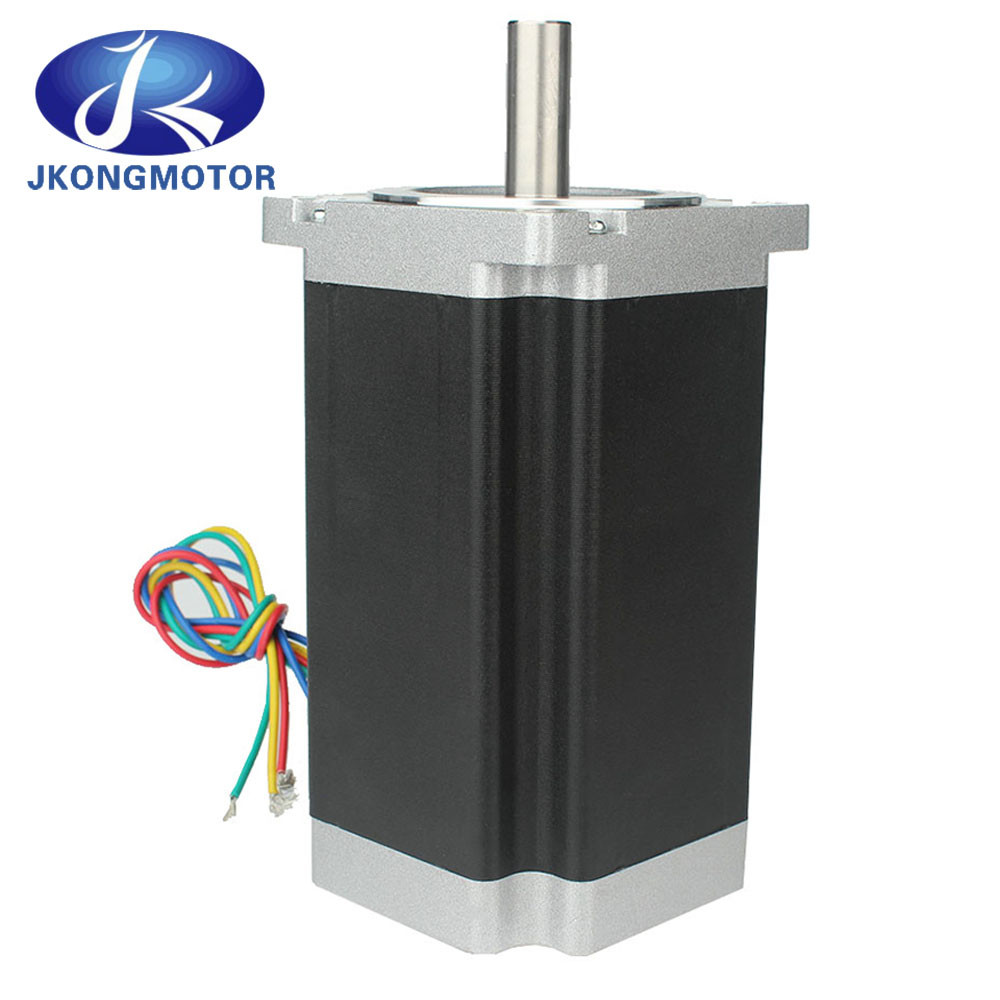

NEMA34 85BYGH450C 8 Lead Wire Hybrid Stepper Motor With Detent Torque

NEMA34 85BYGH450C 8 Lead Wire Hybrid Stepper Motor With Detent Torque

NEMA34 85BYGH450C  8 Lead Wire Hybrid Stepper Motor With Detent Torque
video
NEMA34 85BYGH450C  8 Lead Wire Hybrid Stepper Motor With Detent Torque
Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jkongmotor
Certification: CE, ROHS,ISO9001
Model Number: JK86HS155
Payment & Shipping Terms:
Minimum Order Quantity: 3-10pcs
Price: US$42~US$51.00
Packaging Details: with export carton . big quantity with pallet
Delivery Time: For samples , 7-15 days / For batch , 15-25days
Payment Terms: T/T , paypal , Western Union, L/C
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Name: Stepper Motor Leads: 8
Current: 4.2A Holding Torque: 12.2N.m
Step Angle: 1.8 Degree Shaft: 12.7mm/14mm
Phase Resistance: 1.25Ω Phase Inductance: 8mH
Voltage: 5.25v Phase: 2
Shaft Length: 32mm Driver: DM860H/JKD2060H
High Light:

85BYGH450C Hybrid Stepper Moto

,

85BYGH450C nema34 motor

,

8 Lead Wire nema34 motor

NEMA34 85BYGH450C & 86BYGH450C Hybrid Stepper Motor 8 Lead Wire With Detent Torque



Bipolar stepper motor models provided: 86BYGH450C, 85BYGH450C, 86BYGH450B, 85BYGH450B, 86BYGH450A, 85BYGH450A

Bipolar stepper motor is an open loop control element which transforms electric pulse signal into angular displacement. In the case of non overloading, the speed and stop position of the motor only depend on the frequency and quantity of the pulse signal. When the step driver receives a pulse signal, it drives the step motor to rotate a fixed angle according to the set direction, which is called "step angle". It rotates at a fixed angle and runs step by step. The angular displacement can be controlled by controlling the quantity of pulse signal, so as to achieve the purpose of accurate positioning; similarly, the speed and acceleration of the motor can be controlled by controlling the frequency of pulse signal, so as to achieve the purpose of speed regulation.


1.Genaral Specification of hybrid stepper motors:

  • Bipolar Stepper Motor 86/85BYGH450C Parameter
  • Shaft Diameter: 12.7mm with keyway/14mm with keyway/14mm without keyway
  • Shaft Length: 32mm
  • Flange Size: 86x86x155mm
  • 86BYGH450C Step Motor Length: 155mm
  • Holding Torque: 12.2N.m
  • Step Angle: 1.8°
  • Phase: 2
  • Currency: 4.2A
  • Voltage: 5.25V
  • Resistance: 1.25Ω
  • Inductance: 8.0mH
  • Radial Runout: 0.02mm Max
  • Axial Runout: 0.08mm Max
  • Surroundings Temperature: -20℃ to 50℃
  • Upper Limit Of Step Motor Temperature Rise: 80℃ Max
  • Motor Weight: 5.4KGS



2.Electrical Specification of stepper motor:

Model No.

Step Angle

Motor Length

Current

/Phase

Resistance

/Phase

Inductance

/Phase

Holding Torque

# of Leads

Detent Torque

Rotor Inertia

Mass

  ( °) (L)mm A Ω mH N.m No. Kg.cm g.cmNEMA34 85BYGH450C  8 Lead Wire Hybrid Stepper Motor With Detent Torque 0 Kg
JK86HS68-5904 1.8 67 5.9 0.28 1.7 3.4 4 0.8 1000 1.7
JK86HS68-2808 1.8 67 2.8 1.4 3.9 3.4 8 0.8 1000 1.7
JK86HS78-5504 1.8 78 5.5 0.46 4.0 4.6 4 1.2 1400 2.3
JK86HS78-4208 1.8 78 4.2 0.75 3.4 4.6 8 1.2 1400 2.3
JK86HS97-4504 1.8 97 4.5 0.66 3.0 5.8 4 1.7 2100 3.0
JK86HS97-4008 1.8 97 4.0 0.98 4.1 4.7 8 1.7 2100 3.0
JK86HS100-6004 1.8 100 6.0 0.36 2.8 7.0 4 1.9 2200 3.1
JK86HS115-6004 1.8 115 6.0 0.6 6.5 8.7 4 2.4 2700 3.8
JK86HS115-4208 1.8 115 4.2 0.9 6.0 8.7 8 2.4 2700 3.8
JK86HS126-6004 1.8 126 6.0 0.58 6.5 6.3 4 2.9 3200 4.5
JK86HS155-6004 1.8 155 6.0 0.68 9.0 13.0 4 3.6 4000 5.4
JK86HS155-4208 1.8 155 4.2 1.25 8.0 12.2 8 3.6 4000 5.4

Above only for representative products, products of special request can be made according to the customer request.



3.Drawing of JK86HS155 stepper motor:
NEMA34 85BYGH450C  8 Lead Wire Hybrid Stepper Motor With Detent Torque 1





4. The motor with driver kit : JK86HS155 + DM860H

NEMA34 85BYGH450C  8 Lead Wire Hybrid Stepper Motor With Detent Torque 2

NEMA34 85BYGH450C  8 Lead Wire Hybrid Stepper Motor With Detent Torque 3



5.Produce equipment:

NEMA34 85BYGH450C  8 Lead Wire Hybrid Stepper Motor With Detent Torque 4

6.Production Process:
NEMA34 85BYGH450C  8 Lead Wire Hybrid Stepper Motor With Detent Torque 5

7.Advantages of hybrid Step Motor:



The motor is simple in construction, reliable.
At the standstill condition, the motor has full torque.
The motors are less costly.
They require little maintenance.
The stepper motor has an excellent and accurate starting, stopping and reversing response.

   8.Applications of electric motor:

  • As the stepper motor are digitally controlled using an input pulse, they are suitable for use with computer controlled systems.
  • They are used in numeric control of machine tools.
  • Used in tape drives, floppy disc drives, printers and electric watches.
  • The stepper motor also use in X-Y plotter and robotics.
  • It has wide application in textile industries and integrated circuit fabrications.
  • The other applications of the Stepper Motor are in spacecrafts launched for scientific explorations of the planets etc.
  • These motors also find a variety of commercial, medical and military applications and also used in the production of science fiction movies.
  • Stepper motors of microwatts are used in the wrist watches.
  • In the machine tool, the stepper motors with ratings of several tens of kilowatts is used.
