| Place of Origin: | Jiangsu, China (Mainland) |
| Brand Name: | Jkongmotor |
| Certification: | CE, ROHS,ISO9001 |
| Model Number: | JK42BL60JSX71 |
| Minimum Order Quantity: | 3-10pcs |
|---|---|
| Price: | US $26 - 48 / Unit |
| Packaging Details: | with export carton . big quantity with pallet |
| Delivery Time: | For samples , 7-15 days / For batch , 15-25days |
| Payment Terms: | T/T , paypal , Western Union, L/C |
| Supply Ability: | 30000pcs/month |
| Phase: | 3-phase | Poles: | 8 |
|---|---|---|---|
| Voltage Range: | 24V | Keywords: | Bldc Gear Motor 24v |
| Color: | Black | Output Power: | 11W |
| Rated Speed: | 4000rpm | No Load Speed: | 6800rpm |
| No Load Current: | 0.6A | Rated Torque: | 0.185N.m |
| High Light: | Round geared brushless dc motor,ROHS geared brushless dc motor,Round 24v dc gear motor high torque |
||

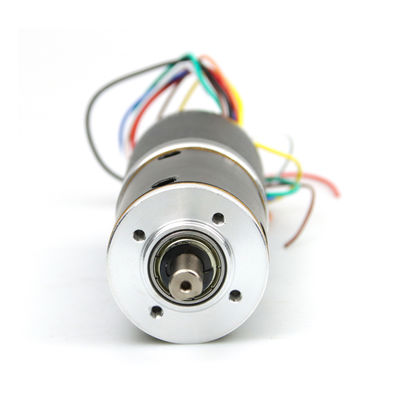

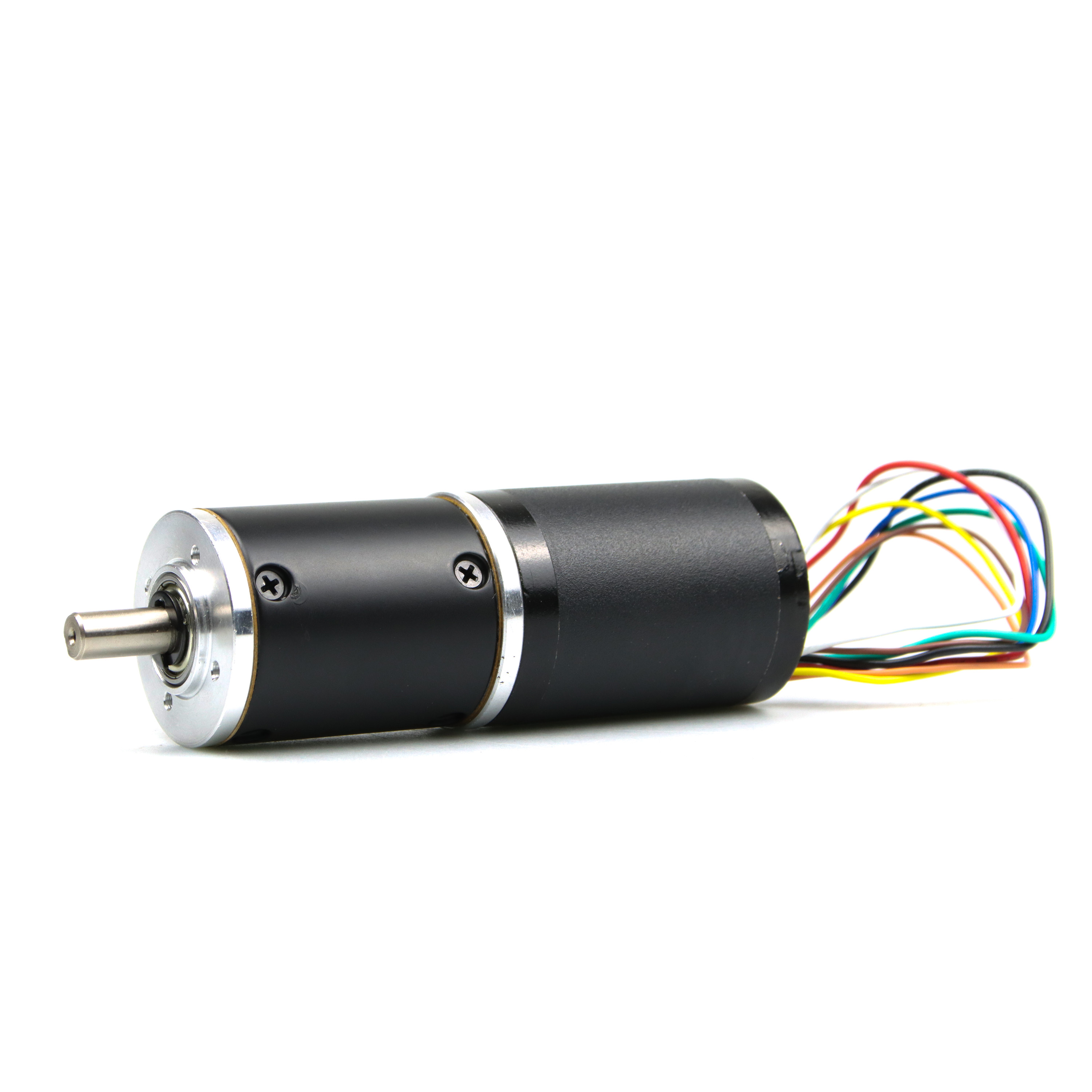

Round 24v 77.5w 2100rpm 71:1 speed ratio dc geared electric motors
A Brushless DC Motor is operated by means of an electronic six-step commutation system. Unlike its Brush DC Motor counterparts, the Brushless DC Motor does not contain any carbon brushes. Instead, the electromagnets within the motor remain stationary along with the armature, while the encased permanent magnets rotate, generating torque. The Brushless DC Motor is synchronous; both the stator and the magnetic field generate the same frequency, therefore avoiding any type of "slip" most induction motors exhibit.
Genaral Specification of electric dc motor:
| Item | Specification |
| Winding type | Star |
| Hall effect angle | 120 degree electrical angle |
| Shaft run out | 0.025mm |
| Radial play | 0.02mm＠450g |
| End play | 0.08mm＠450g |
| Max.radial force | 75N ＠20mm form the flange |
| Max.axial force | 15N |
| Insulation class | Class B |
| Dielectric strength | 500VDC for one minute |
| Insulation resistance | 100MΩ Min.,500VDC |
| Specification | Unit | JK42BL60JSX71 |
| Number Of Phase | Phase | 3 |
| Number Of Poles | Poles | 8 |
| Rated Voltage | VDC | 24 |
| Rated Speed | Rpm | 4000 |
| Rated Torque | N.m | 0.65 |
| Rated Power | W | 77.5 |
| Back E.M.F | V/Krpm | 3.5 |
| Torque Constant | N.m/A | 0.03 |
Products of special request can be made according to the customer request !

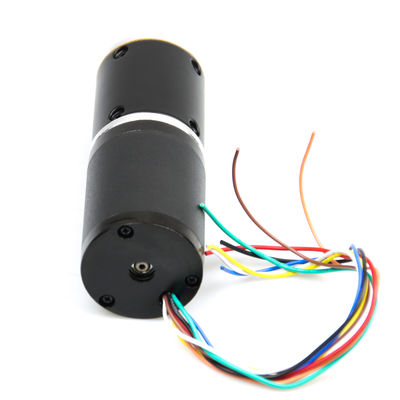

Details of BLDC motor:
Drawing of 42BLS motor:
FAQ(Q=Question, A=Answer)
Q: What's your main products?
A:We currently produce Stepper motors, Brushless Dc Motors, Brushed Dc Motors, Spindle motor, Ac Motors and drivers etc. You can check the specifications for above motors on our website and you can email us to recommend needed motors per your specification too.
Q:How to select a suitable motor?
A:If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed life time and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly.
Q: Do you have customized service for your standard motors?
A:Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape.
Q:Can I have samples for testing first?
A:Yes, definitely you can. After confirmed the needed motor specs, we will quote and provide a proforma invoice for samples.
Q:How do you make sure motor quality?
A:We have our own inspection procedures: for incoming materials, we have signed sample and drawing to make sure qualified incoming materials; for production process, we have tour inspection in the process and final inspection to make sure qualified products before shipping.
