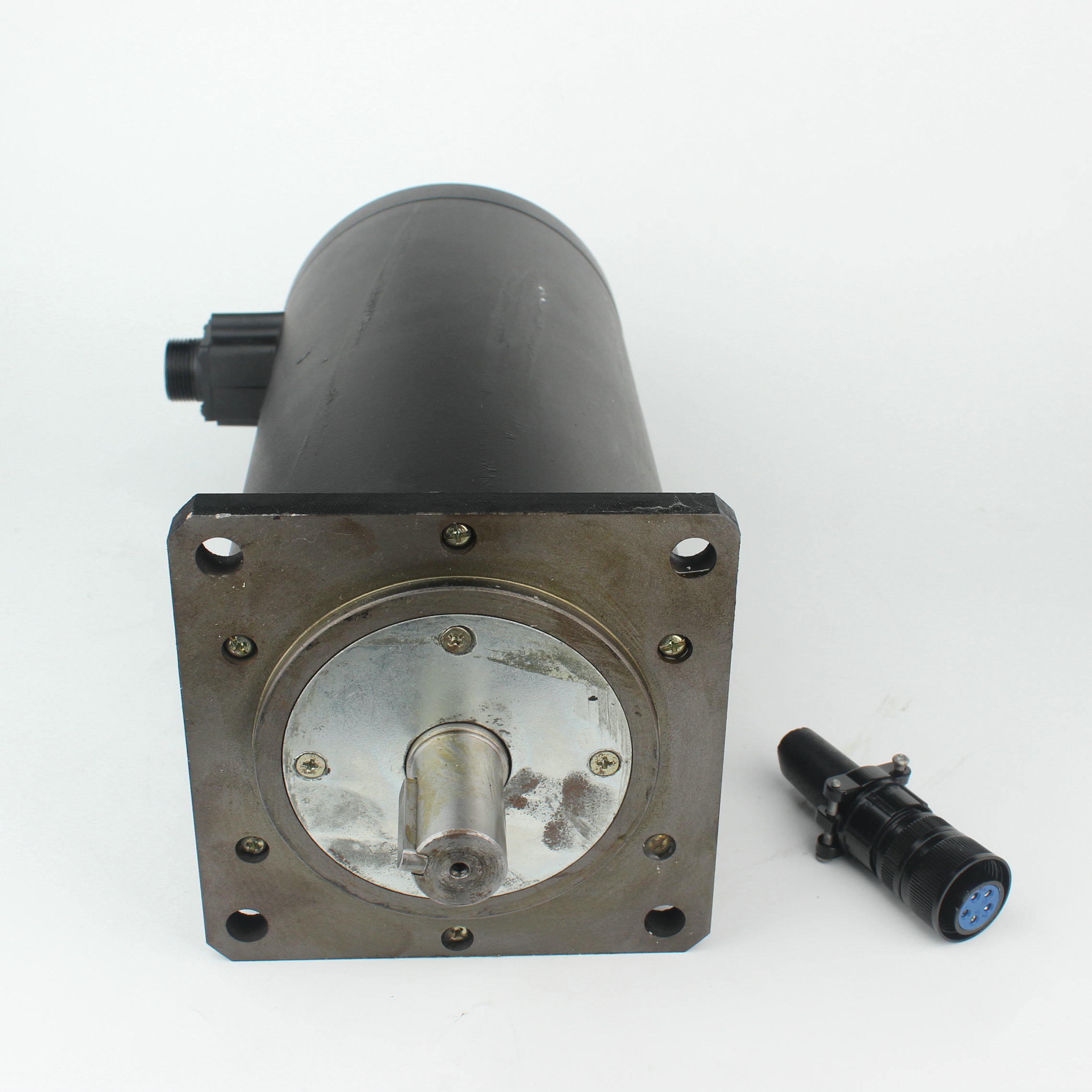

High Torque Nema 52 130mm 50Nm 7A Hybrid Servo Stepper Motor For Cnc Motor Kit

High Torque Nema 52 130mm 50Nm 7A Hybrid Servo Stepper Motor For Cnc Motor Kit

High Torque Nema 52 130mm 50Nm 7A Hybrid Servo Stepper Motor For Cnc Motor Kit
video
High Torque Nema 52 130mm 50Nm 7A Hybrid Servo Stepper Motor For Cnc Motor Kit
Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jkongmotor
Certification: CE, ROHS,ISO9001
Model Number: JK130HS285-7004
Payment & Shipping Terms:
Minimum Order Quantity: 3-10pcs
Price: US $152 - 220 / Pieces
Packaging Details: with export carton . big quantity with pallet
Delivery Time: For samples , 7-15 days / For batch , 15-25days
Payment Terms: T/T , paypal , Western Union, L/C
Supply Ability: 30000 PCS/MONTH
Contact Now
Detailed Product Description
Nema: Hybrid Stepper Motor Phase: 2
Step Angle(degrees): 1.8 Current / Phase: 7A
Color: Black Length: 285mm
Weight: 22.5KG Shaft Diameter: 19mm
Holding Torque: 50N.m Resistance: 0.66Ω
High Light:

CNC Hybrid Servo Stepper Motor

,

Cnc Nema 52 Stepper Motor

,

7A Nema 52 Stepper Motor

wholesale high quality high torque nema 52 130mm 50Nm 7A Stepper Motor for cnc motor kit



The stepper motor is an electromagnetic device that converts digital pulses into mechanical shaft rotation. Advantages of step motors are low cost, high reliability, high torque at low speeds and a simple, rugged construction that operates in almost any environment. The main disadvantages in using a stepper motor is the resonance effect often exhibited at low speeds and decreasing torque with increasing speed.



Description:

130mm high torque stepping motor, 130mm 2 Phase stepper motor.

50N.m 2phase Stepper motor, high torque stepper motor with 130mm size.

50 N.m stepping motor,





Applications:



Used for robots stepper motor,

electronic automatic equipment stepping motor,

medical instrument stepping motor,

advertising instrument stepper motor,

lighting& audio equipment stepper motor,

printer stepper motor, textile machinery stepper motor.

Cnc router stepper motor.





Genaral Specification:

Item Specifications
Step Angle 1.8°
Temperature Rise 80℃max
Ambient Temperature -20℃~+50℃
Insulation Resistance 100 MΩ Min. ,500VDC
Dielectric Strength 1000VAC for 1minute
Shaft Radial Play 0.02Max. (450g-load)
Shaft Axial Play 0.08Max. (450g-load)
Max. radial force 220N (20mm from the flange)
Max. axial force 60N



Specifications:



Model No.

Operating Voltage

Rated Current

Resistance

Inductance

Holding Torque

Noload Frequency Starting Frequency

Weight

Length
  VDC A Ω mH N.m No. g.cm kg mm
JK130HS173-6004 80~325 6 0.75 12.6 25 25000 2300 13.3 173
JK130HS229-6004 80~325 6 0.83 13.2 30 25000 2300 18 229
JK130HS257-7004 80~325 7 0.73 11.7 40 23000 2200 19 257
JK130HS285-7004 80~325 7 0.66 10 50 23000 2200 22.5 285



Wiring Diagram:

High Torque Nema 52 130mm 50Nm 7A Hybrid Servo Stepper Motor For Cnc Motor Kit 0

High Torque Nema 52 130mm 50Nm 7A Hybrid Servo Stepper Motor For Cnc Motor Kit 1



High Torque Nema 52 130mm 50Nm 7A Hybrid Servo Stepper Motor For Cnc Motor Kit 2High Torque Nema 52 130mm 50Nm 7A Hybrid Servo Stepper Motor For Cnc Motor Kit 3



Stepper Motor Advantages

  • Low cost for control achieved
  • High torque at startup and low speeds
  • Ruggedness
  • Simplicity of construction
  • Can operate in an open loop control system
  • Low maintenance
  • Less likely to stall or slip
  • Will work in any environment
  • Can be used in robotics in a wide scale.
  • High reliability
  • The rotation angle of the motor is proportional to the input pulse.
  • The motor has full torque at standstill (if the windings are energized)
  • Precise positioning and repeatability of movement since good stepper motors have an accuracy of 3–5% of a step and this error is non-cumulative from one step to the next.
  • Excellent response to starting/stopping/reversing.
  • Very reliable since there are no contact brushes in the motor. Therefore, the life of the motor is simply dependent on the life of the bearing.
  • The motors response to digital input pulses provides open-loop control, making the motor simpler and less costly to control.
  • It is possible to achieve very low-speed synchronous rotation with a load that is directly coupled to the shaft.
  • A wide range of rotational speeds can be realized as the speed is proportional to the frequency of the input pulses.
