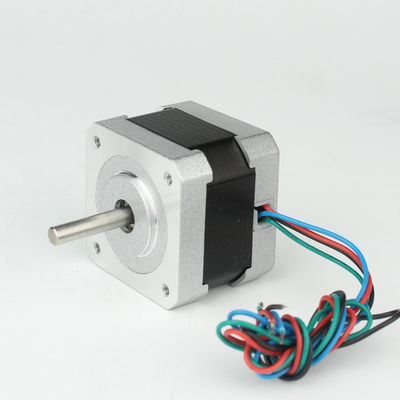

2 Phase 1.8 Degree Nema 17 Geared Stepper Motor 1.33A 2.8v 2.6kg.Cm With Screw Lead

2 Phase 1.8 Degree Nema 17 Geared Stepper Motor 1.33A 2.8v 2.6kg.Cm With Screw Lead

2 Phase 1.8 Degree Nema 17 	Geared Stepper Motor 1.33A 2.8v 2.6kg.Cm With Screw Lead
video
2 Phase 1.8 Degree Nema 17 	Geared Stepper Motor 1.33A 2.8v 2.6kg.Cm With Screw Lead
Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jkongmotor
Certification: CE, ROHS,ISO9001
Model Number: JK42HS34-1334-04LA
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS~5PCS
Price: US$5.5~US$35
Packaging Details: with export carton . big quantity with pallet
Delivery Time: For samples , 7-15 days / For batch , 15-25days
Payment Terms: T/T , paypal , Western Union, L/C
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Name: Stepper Motor Leads: 4
Current: 1.33A Holding Torque: 2.6kg.cm
Step Angle: 1.8 Degree Phase Resistance: 2.1Ω
Phase Inductance: 2.5mH Voltage: 2.8v
Phase: 2
High Light:

Screw Lead Geared Stepper Motor

,

2 phase Nema 17 Stepper Motor

,

25MM Nema 17 Stepper Motor

2 phase 1.8 degree Nema 17 Stepper Motor 1.33A 2.8v 2.6kg.Cm With Screw Lead



The linear stepper motor almost exclusively employs a hybrid design, with two main parts—a base (also referred to as a platen) and a slider (also referred to as a forcer). Unlike other linear motor designs, in a linear stepper motor, the platen is a passive component—a steel (or stainless steel) plate with slots milled into it. The forcer contains laminations with slotted teeth, motor windings, and a permanent magnet. The teeth of the forcer concentrate the magnetic flux that is created when current is applied to the coils. The forcer teeth are also staggered in relation to the platen teeth—typically by ¼ tooth pitch—to ensure that constant attraction is maintained and that the next set of teeth will come into alignment as current is switched in the coils. For each full step of the motor, the forcer moves ¼ tooth pitch.




1.Genaral Specification of hybrid stepper motor:



Item Specifications
Step Angle 1.8°
Temperature Rise 80℃max
Ambient Temperature -20℃~+50
Insulation Resistance 100 MΩ Min. ,500VDC
Dielectric Strength 500VAC for 1minute
Shaft Radial Play 0.02Max. (450g-load)
Shaft Axial Play 0.08Max. (450g-load)
Max. radial force 28N (20mm from the flange)
Max. axial force 10N





2.Electrical Specification of stepper morors:



Model No.

Step Angle

Motor Length

Current

/Phase

Resistance

/Phase

Inductance

/Phase

Holding Torque

# of Leads

Detent Torque

Rotor Inertia

Mass

  ( °) (L)mm A Ω mH N.m No. g.cm g.cm²2 Phase 1.8 Degree Nema 17 	Geared Stepper Motor 1.33A 2.8v 2.6kg.Cm With Screw Lead 0 Kg
JK42HS25-0404 1.8 25 0.4 24 36 1.8 4 75 20 0.15
JK42HS34-1334 1.8 34 1.33 2.1 2.5 2.2 4 120 34 0.22
JK42HS40-1684 1.8 40 1.68 1.65 3.2 3.6 4 150 54 0.28
JK42HS48-1684 1.8 48 1.68 1.65 2.8 4.4 4 260 68 0.35
JK42HS60-1004 1.8 60 1.0 8 13 7.5 4 280 102 0.5



3.Screw rod Specification:



Screw Diameter(mm)

Screw Lead(mm)

Screw Pitch(mm)

Travel per step(mm)

Screw Diameter(mm)

Screw Lead(mm)

Screw Pitch(mm)

Travel per step(mm)

Tr5 1 1 0.005 Tr8 8 2 0.04
  2 1 0.01   10 2 0.05
Tr6 2 1 0.01   12 2 0.06
  4 1 0.02   14 2 0.07
  6 1 0.03 Tr10 2 2 0.01
  12 2 0.06   3 1.5 0.015
Tr8 1 1 0.005   4 2 0.02
  2 2 0.01   8 2 0.04
  3 1.5 0.015   10 2 0.05
  4 2 0.02   12 2 0.06


4.Drawing of JK42HS34 stepper motor:
2 Phase 1.8 Degree Nema 17 	Geared Stepper Motor 1.33A 2.8v 2.6kg.Cm With Screw Lead 1

5.Produce equipment:

2 Phase 1.8 Degree Nema 17 	Geared Stepper Motor 1.33A 2.8v 2.6kg.Cm With Screw Lead 2

6.Production Process:
2 Phase 1.8 Degree Nema 17 	Geared Stepper Motor 1.33A 2.8v 2.6kg.Cm With Screw Lead 3

7.Advantages of hybrid Step Motor:



The motor is simple in construction, reliable.
At the standstill condition, the motor has full torque.
The motors are less costly.
They require little maintenance.
The stepper motor has an excellent and accurate starting, stopping and reversing response.

   8.Applications of electric motor:

  • As the stepper motor are digitally controlled using an input pulse, they are suitable for use with computer controlled systems.
  • They are used in numeric control of machine tools.
  • Used in tape drives, floppy disc drives, printers and electric watches.
  • The stepper motor also use in X-Y plotter and robotics.
  • It has wide application in textile industries and integrated circuit fabrications.
  • The other applications of the Stepper Motor are in spacecrafts launched for scientific explorations of the planets etc.
  • These motors also find a variety of commercial, medical and military applications and also used in the production of science fiction movies.
  • Stepper motors of microwatts are used in the wrist watches.
  • In the machine tool, the stepper motors with ratings of several tens of kilowatts is used.
