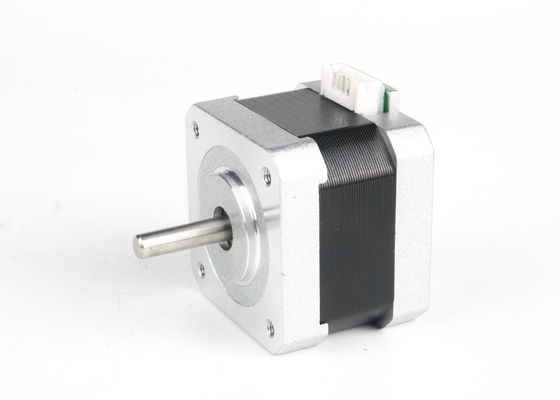

2phase 0.84A 2.8kg.Cm 42HS34 Nema 17 Hybrid Stepper Motor with Connector

2phase 0.84A 2.8kg.cm 42HS34 Nema17 hybrid stepper motor with connector

Stepping motor is an open-loop control element that converts electrical pulse signals into angular displacement or linear displacement. In the case of non-overload, the motor speed and stop position only depend on the frequency and pulse number of the pulse signal, and are not affected by the load change. When the stepper driver receives a pulse signal, it drives the stepper motor The set direction rotates at a fixed angle, called "step angle", and its rotation runs step by step at a fixed angle.


1.Genaral Specification of hybrid stepper motor:

2.Electrical Specification of stepper morors:

Model No.	Step Angle	Motor Length	Current /Phase	Resistance /Phase	Inductance /Phase	Holding Torque	# of Leads	Detent Torque	Rotor Inertia	Mass
	( °)	(L)mm	A	Ω	mH	kg.cm	No.	g.cm	g.cm	Kg
JK42HS25-0404	1.8	25	0.4	24	36	1.8	4	75	20	0.15
JK42HS28-0504	1.8	28	0.5	20	21	1.5	4	85	24	0.22
JK42HS34-1334	1.8	34	1.33	2.1	2.5	2.2	4	120	34	0.22
JK42HS34-0406	1.8	34	0.4	24	15	1.6	6	120	34	0.22
JK42HS34-0956	1.8	34	0.95	4.2	2.5	1.6	6	120	34	0.22
JK42HS40-0406	1.8	40	0.4	30	30	2.6	6	150	54	0.28
JK42HS40-1684	1.8	40	1.68	1.65	3.2	3.6	4	150	54	0.28
JK42HS40-1206	1.8	40	1.2	3	2.7	2.9	6	150	54	0.28
JK42HS48-0406	1.8	48	0.4	30	25	3.1	6	260	68	0.35
JK42HS48-1684	1.8	48	1.68	1.65	2.8	4.4	4	260	68	0.35
JK42HS48-1206	1.8	48	1.2	3.3	2.8	3.17	6	260	68	0.35
JK42HS60-0406	1.8	60	0.4	30	39	6.5	6	280	102	0.5
JK42HS60-1704	1.8	60	1.7	3	6.2	7.3	4	280	102	0.5
JK42HS60-1206	1.8	60	1.2	6	7	5.6	6	280	102	0.5

3.Drawing of JK42HS34 stepper motor:


4.Produce equipment:



5.Production Process:

6.Advantages of hybrid Step Motor:

The motor is simple in construction, reliable.
At the standstill condition, the motor has full torque.
The motors are less costly.
They require little maintenance.
The stepper motor has an excellent and accurate starting, stopping and reversing response.

   7.Applications of electric motor:

• As the stepper motor are digitally controlled using an input pulse, they are suitable for use with computer controlled systems.
• They are used in numeric control of machine tools.
• Used in tape drives, floppy disc drives, printers and electric watches.
• The stepper motor also use in X-Y plotter and robotics.
• It has wide application in textile industries and integrated circuit fabrications.
• The other applications of the Stepper Motor are in spacecrafts launched for scientific explorations of the planets etc.
• These motors also find a variety of commercial, medical and military applications and also used in the production of science fiction movies.
• Stepper motors of microwatts are used in the wrist watches.
• In the machine tool, the stepper motors with ratings of several tens of kilowatts is used.
