Hybrid Nema 17 Reducer With Planetary Gearbox 1.33A 2.6kg Cm 2.8V 1.8 Degree

Hybrid Nema 17 Reducer With Planetary Gearbox 1.33A 2.6kg Cm 2.8V 1.8 Degree

Hybrid Nema 17 Reducer  With Planetary Gearbox 1.33A 2.6kg Cm 2.8V 1.8 Degree
video
Hybrid Nema 17 Reducer  With Planetary Gearbox 1.33A 2.6kg Cm 2.8V 1.8 Degree
Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jkongmotor
Certification: CE, ROHS,ISO9001
Model Number: JK42HS34-1334APG13.7
Payment & Shipping Terms:
Minimum Order Quantity: 1 - 3 Unit/Units
Price: US $15.8 - 22.8 / Units
Packaging Details: with export carton . big quantity with pallet
Delivery Time: For samples , 7-15 days / For batch , 15-25days
Payment Terms: T/T , paypal , Western Union, L/C
Supply Ability: 30000 pcs/month
Contact Now
Detailed Product Description
Phase: 2-phase Type: Hybrid
Step Angle: 1.8 Degree Holding Torque: 2.6kg.cm
Motor Length: 34mm Voltage Range: 2.8V
Suitable Motor: Nema 17 Stepping Motor Stepper Driver Model: JK0220
Current: 1.33A Reduction Ratio: 13.7
High Light:

Hybrid nema 17 reducer

,

Planetary Gearbox nema 17 reducer

,

1.8 Degree nema stepper motor driver

 1.33A 2.6kg.cm 2.8V 1.8 Degree Nema 17 Stepper Motor with planetary gearbox



The Nema 17 Stepper Motor Bipolar with 13.7:1 Planetary Gearbox is a stepper motor with 34mm body and 1.33A rated current, integrated a planetary gearbox of 13.7:1  gear ratio. Adding a gearbox to a stepper motor system can improve the motor’s performance by decreasing the load-to-motor inertia ratio, increasing torque to the load, and reducing motor oscillations.



Compared to the other two types of stepper motors, hybrid stepper motors provide higher torque with smaller step angle and have a better dynamic property. With the development of science and technology, especially the development of permanent magnet materials, semiconductor technology and computer technology, these stepper motors have been widely used in industrial automation, robotics, textile and medical industries.



Electrical Specification of Nema 17 stepper motor gear reducer:



Step Angle   1.8°
Step Angle Accuracy ±5%(full step,no load)
Resistance Accuracy ±10%
Inductance Accuracy ±20%
Temperature Rise 80℃max
Ambient Temperature -20℃~+50℃
Insulation Resistance 100 MΩ Min. ,500VDC
Dielectric Strength 500VAC for 1minute
Shaft Radial Play 0.02Max. (450g-load)
Shaft Axial Play 0.08Max. (450g-load)
Max. radial force 28N (20mm from the flange)
Max. axial force 10N



Nema 17 step motor planetary Gearbox Specifications:

Housing Material

Metal

Bearing at Output

Ball Bearings

Max.Radial Load(12mm from flange)

80N

Max.Shaft Axial Load

30N

Radial Play of Shaft (near to Flange)

0.06mm

Axial Play of Shaft

0.3mm

Backlash at No-load

1.5°



42HS Hybrid Stepping Motor Specifications :


Model No.

Step Angle

Motor Length

Current

/Phase

Resistance

/Phase

Inductance

/Phase

Holding Torque

# of Leads

Detent Torque

Rotor Inertia

Mass

( °)

(L)mm

A

Ω

mH

kg.cm

No.

g.cm

g.cm

Kg

JK42HS34-1334

1.8

34

1.33

2.1

2.5

2.2

4

120

34

0.22



Specifications of 42mm stepper motor with gearbox:


Reduction ratio

3.71

5.18

13.76

19.2

26.8

51

71

99.5

139

Number of gear trains

1

2

3

Length(L2)   mm

27.3

35

42.7

Max.rated torque    kg.cm

20

30

40

Short time permissible torque  kg.cm

40

60

80

Weight      g

350

450

550



Details of Geared Stepper Motors Nema 17:



The matching driver of Nema17 stepper motor is: JKD0220

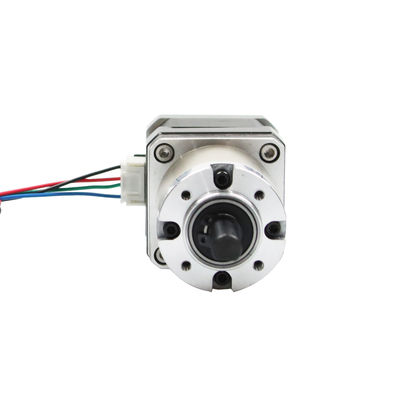

Hybrid Nema 17 Reducer  With Planetary Gearbox 1.33A 2.6kg Cm 2.8V 1.8 Degree 0Hybrid Nema 17 Reducer  With Planetary Gearbox 1.33A 2.6kg Cm 2.8V 1.8 Degree 1Hybrid Nema 17 Reducer  With Planetary Gearbox 1.33A 2.6kg Cm 2.8V 1.8 Degree 2



Applications of 42mm stepper motor gearbox :



Used for robots stepper motor, Electronic automatic equipment stepping motor, Medical instrument stepping motor, Advertising instrument stepper motor, Lighting& audio equipment stepper motor, Printer stepper motor, textile machinery stepper motor, Cnc router stepper motor. 3D printer



Stepper Motors, Stepper Motor Drivers and Controllers

Stepper motors enable accurate positioning with ease. They are used in various types of equipment for accurate rotation angle and speed control using pulse signals. Stepper motors generate high torque with a compact body, and are ideal for quick acceleration and response. Stepper motors also hold their position at stop, due to their mechanical design. Stepper motor solutions consist of a driver (takes pulse signals in and converts them to motor motion) and a stepper motor.
