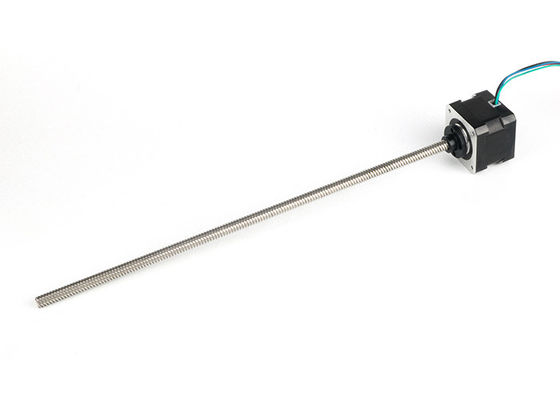

1.8deg 1A 3kg.cm 320mm 4 Wires Nema 17 Linear Stepping Motor

1.8° 1A 3kg.cm 320mm 4wires Nema17 linear stepping motor

Similar to their rotary counterparts in operation and performance, a linear stepper motor is typically run as open-loop systems and are capable of providing high resolution at high speeds and accelerations.The linear stepper motor almost exclusively employs a hybrid design, with two main parts—a base (also referred to as a platen) and a slider (also referred to as a forcer).

1.Genaral Specification of nema 17 stepper motors:

• Step angle: 1.8°
• Temperature rise: below 80 ℃
• Ambient temperature: -20 ℃ ~ + 50 ℃
• Insulation resistance: minimum 100MΩ, 500VDC
• Dielectric strength: 500VAC for 1 minute
• Shaft radial clearance: 0.02 max (450 g load)
• Shaft axial clearance: 0.08Max. (450 g load)
• Maximum radial force: 28N (20mm from flange)
• Maximum axial force: 10N
• size: Approximately 42x42x34mm

2.Electrical Specification of 42mm stepper moror:

3.Screw rod Specification:

4.Drawing of 42HS step motor:

5.Produce equipment:

6.Production Process:

7.Advantages of Hybrid Stepper Motor

• Low cost for control achieved
• High torque at startup and low speeds
• Ruggedness
• Simplicity of construction
• Can operate in an open loop control system
• Low maintenance
• Less likely to stall or slip
• Will work in any environment
• Can be used in robotics in a wide scale.
• High reliability
• The rotation angle of the motor is proportional to the input pulse.
• The motor has full torque at standstill (if the windings are energized)
• Precise positioning and repeatability of movement since good stepper motors have an accuracy of 3–5% of a step and this error is non-cumulative from one step to the next.
• Excellent response to starting/stopping/reversing.
• Very reliable since there are no contact brushes in the motor. Therefore, the life of the motor is simply dependent on the life of the bearing.
• The motors response to digital input pulses provides open-loop control, making the motor simpler and less costly to control.
• It is possible to achieve very low-speed synchronous rotation with a load that is directly coupled to the shaft.
• A wide range of rotational speeds can be realized as the speed is proportional to the frequency of the input pulses.

8.Applications of step motors:
