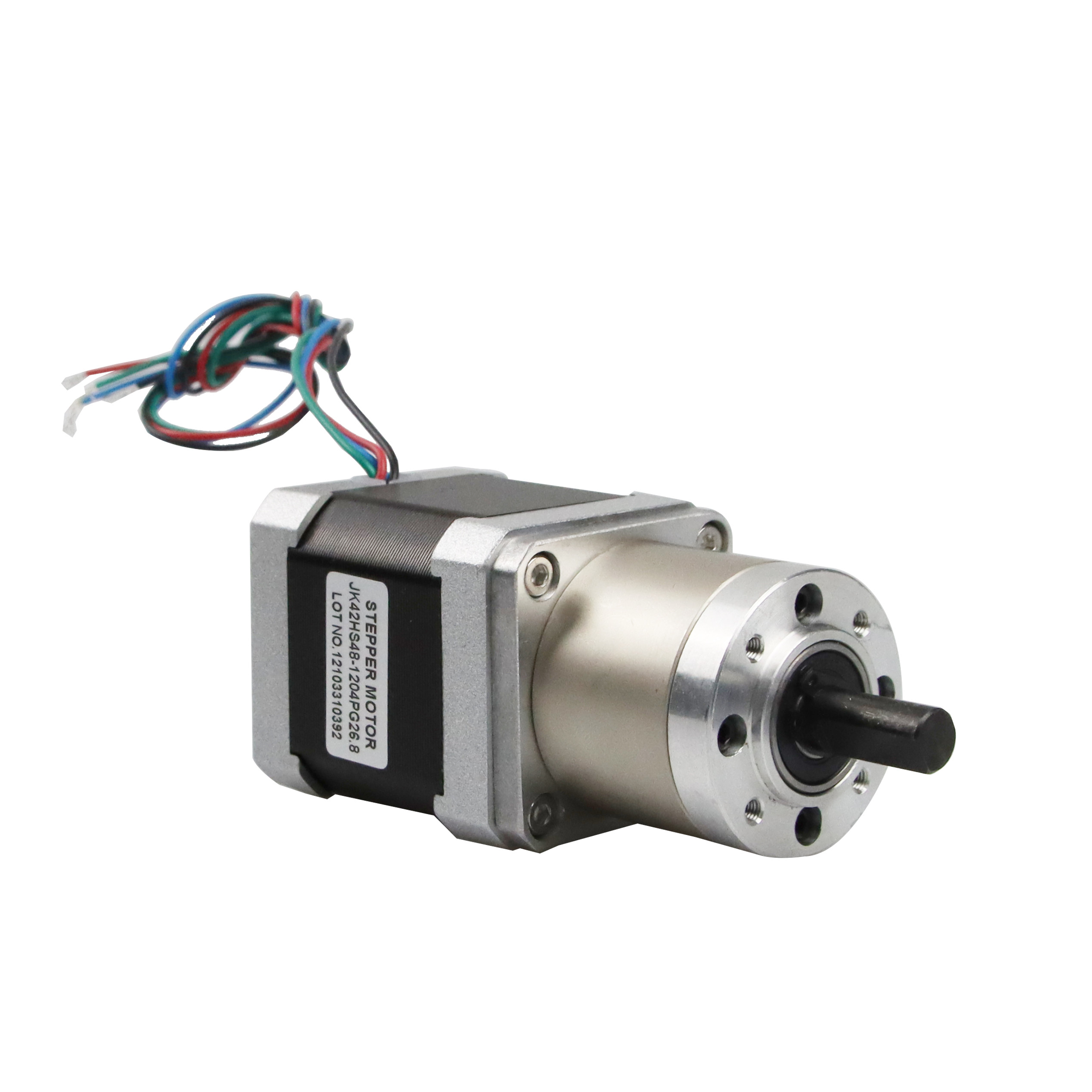

CE Nema 17 Geared Stepper Motor 5.6kg.Cm 78oz.In 1.2A 1.8 Degree For 3D Printer

CE Nema 17 Geared Stepper Motor 5.6kg.Cm 78oz.In 1.2A 1.8 Degree For 3D Printer

CE Nema 17 Geared Stepper Motor 5.6kg.Cm 78oz.In 1.2A 1.8 Degree  For 3D Printer
video
CE Nema 17 Geared Stepper Motor 5.6kg.Cm 78oz.In 1.2A 1.8 Degree  For 3D Printer
Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jkongmotor
Certification: CE, ROHS,ISO9001
Model Number: JK42HS60-1206
Payment & Shipping Terms:
Minimum Order Quantity: 1 - 3 Unit/Units
Price: US $18.5 - 28 / Units
Packaging Details: with export carton . big quantity with pallet
Delivery Time: For samples , 7-15 days / For batch , 15-25days
Payment Terms: T/T , paypal , Western Union, L/C
Supply Ability: 30000 pcs/month
Contact Now
Detailed Product Description
Phase: 2-phase Type: Hybrid
Step Angle: 1.8 Degree Holding Torque: 5.6kg.cm
Motor Length: 60mm Voltage Range: 24V~48VDC
Suitable Motor: Nema 17 Stepping Motor Stepper Driver Model: JK0220
High Light:

nema 17 stepper motor for 3d printer

,

CE nema 17 hybrid stepper motor

,

60mm nema 17 hybrid stepper motor


5.6kg.Cm 78oz.In 1.2A 1.8 Degree Nema 17 Geared Stepper Motor For 3D Printer



The Nema 17 Stepper Motor Bipolar with 5.18:1 Planetary Gearbox is a stepper motor with 60 mm body and 1.2A rated current, integrated a planetary gearbox of 5.18:1  gear ratio. It's a good solution to applications with limited space but need low speed and/or high torque.



Genaral Specification of Nema 17 stepper motor gear reducer:

  • Step Angle : 1.8°
  • Step Angle Accuracy : ±5%(full step,no load)
  • Resistance Accuracy : ±10%
  • Inductance Accuracy : ±20%
  • Temperature Rise : 80℃max
  • Ambient Temperature : -20℃~+50℃
  • Insulation Resistance : 100 MΩ Min. ,500VDC
  • Dielectric Strength : 500VAC for 1minute
  • Shaft Radial Play : 0.02Max. (450g-load)
  • Shaft Axial Play : 0.08Max. (450g-load)
  • Max. radial force : 28N (20mm from the flange)
  • Max. axial force : 10N



Housing Material

Metal

Bearing at Output

Ball Bearings

Max.Radial Load(12mm from flange)

80N

Max.Shaft Axial Load

30N

Radial Play of Shaft (near to Flange)

0.06mm

Axial Play of Shaft

0.3mm

Backlash at No-load

1.5°



42HS Hybrid Stepping Motor Specifications of Nema 17 stepper motor for 3D printer:


Model No.

Step Angle

Motor Length

Current

/Phase

Resistance

/Phase

Inductance

/Phase

Holding Torque

# of Leads

Detent Torque

Rotor Inertia

Mass

( °)

(L)mm

A

Ω

mH

kg.cm

No.

g.cm

g.cm

Kg

JK42HS60-1206

1.8

60

1.2

6

7

5.6

6

280

102

0.5



Specifications of Nema 17 stepper motor with gearbox:


Reduction ratio

3.71

5.18

13.76

19.2

26.8

51

71

99.5

139

Number of gear trains

1

2

3

Length(L2)   mm

27.3

35

42.7

Max.rated torque    kg.cm

20

30

40

Short time permissible torque  kg.cm

40

60

80

Weight      g

350

450

550



Details of Geared Stepper Motor Nema 17:

CE Nema 17 Geared Stepper Motor 5.6kg.Cm 78oz.In 1.2A 1.8 Degree  For 3D Printer 0

CE Nema 17 Geared Stepper Motor 5.6kg.Cm 78oz.In 1.2A 1.8 Degree  For 3D Printer 1



Stepper Motor Applications:

  • As the stepper motor are digitally controlled using an input pulse, they are suitable for use with computer controlled systems.
  • They are used in numeric control of machine tools.
  • Used in tape drives, floppy disc drives, printers and electric watches.
  • The stepper motor also use in X-Y plotter and robotics.
  • It has wide application in textile industries and integrated circuit fabrications.
  • The other applications of the Stepper Motor are in spacecrafts launched for scientific explorations of the planets etc.
  • These motors also find a variety of commercial, medical and military applications and also used in the production of science fiction movies.
  • Stepper motors of microwatts are used in the wrist watches.
  • In the machine tool, the stepper motors with ratings of several tens of kilowatts is used.



We also can customized motor according to your special requirements.

There are few different types of stepper motor with gearbox.

You can choose reducer ratio.

CE Nema 17 Geared Stepper Motor 5.6kg.Cm 78oz.In 1.2A 1.8 Degree  For 3D Printer 2

The common product include hybrid stepper motor,linear stepper motor,Planetary gear reducer stepper motor,

stepper motor with brake,brushless dc motor,dc motor,ac servo motor,spindle motor,stepper driver,bldc driver,

planetary gear reducer bldc motor,couplings,pulley,power supply and so on.
