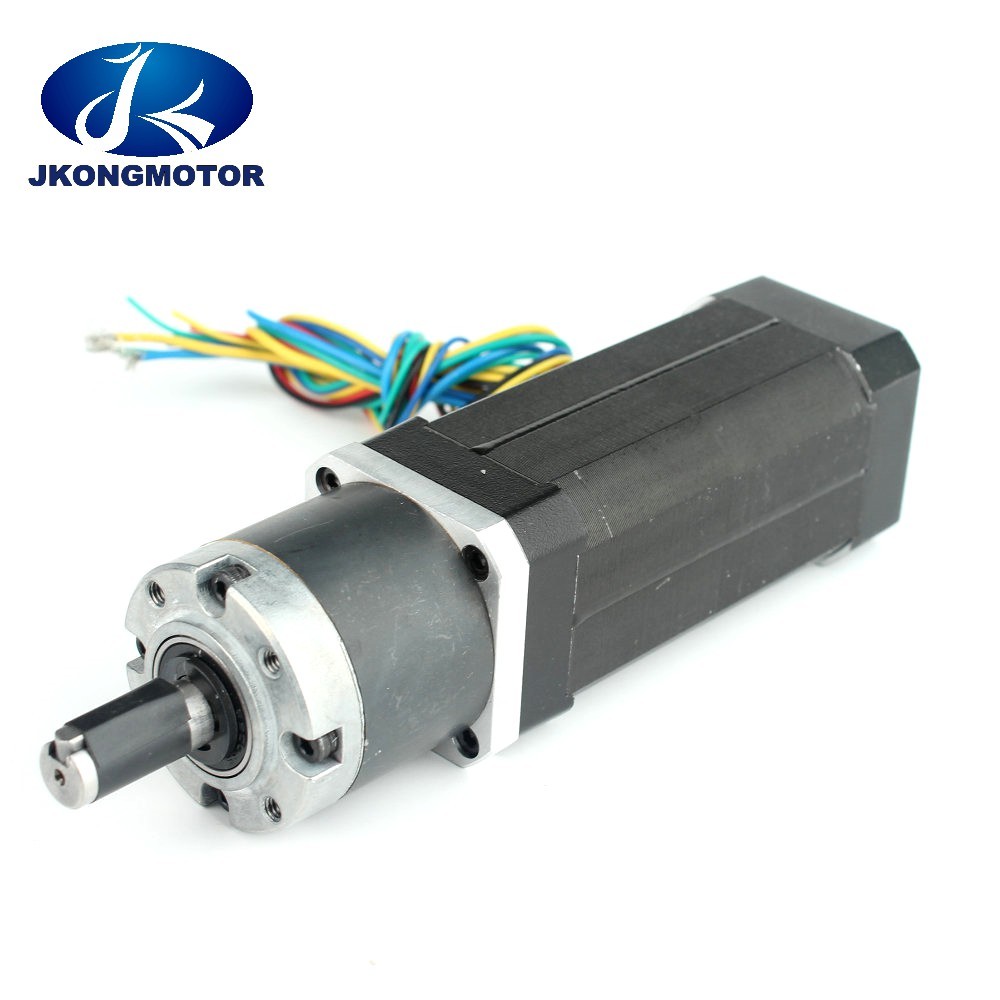

48v 3000rpm 3 Phase Planetary Nema 34 Bldc Motor 8 Poles

48v 3000rpm 3 Phase Planetary Nema 34 Bldc Motor 8 Poles

48v 3000rpm 3 Phase Planetary Nema 34 Bldc Motor 8 Poles
video
48v 3000rpm 3 Phase Planetary Nema 34 Bldc Motor 8 Poles
Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jkongmotor
Certification: CE, ROHS,ISO9001
Model Number: NEMA34 JK86BLSP
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS~3PCS
Price: US$73~US$155
Packaging Details: with export carton . big quantity with pallet
Delivery Time: For samples , 7-15 days / For batch , 15-25days
Payment Terms: T/T , paypal , Western Union, L/C
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Rated Voltage: 48V - 310V Rated Speed: 1000rpm - 3000rpm
Rated Power: 110W - 660W Rated Torque: 0.35N.m - 2.1N.m
Rated Current: 3A - 18A Ratio: 1:4 - 1:100
High Light:

Planetary nema 34 bldc motor

,

3000rpm nema 34 bldc motor

,

48v bldc planetary gear motor



NEMA34 Planetary Geared Brushless Dc motor 48v 3000rpm 3 Phase


1. General Specification

Winding type: Star
Hall effect angle : 120 degree electrical angle

Shaft run out : 0.025mm

Radial play : 0.02mm@450g

End play: 0.08mm@450g

Max.radial force : 220N @20mm form the flange

Max.axial force : 60N

Insulation class : Class B

Dielectric strength : 500VDC for one minute

Insulation resistance : 100MΩ Min.,500VDC




2. Electrical Specification



    Model
Specification Unit JK86BLS58 JK86BLS71 JK86BLS84 JK86BLS98 JK86BLS125
 Number Of Phase Phase 3
 Number Of Poles Poles 8
 Rated Voltage VDC 48
 Rated Speed Rpm 3000
 Rated Torque N.m 0.35 0.7 1.05 1.4 2.1
 Rated Current Amps 3 6.3 9 11.5 18
 Rated Power W 110 220 330 440 660
 Peak Torque N.m 1.05 2.1 3.15 4.2 6.3
 Peak Current Amps 9 19 27 35 54
 Back E.M.F V/Krpm 13.7 13 13.5 13.7 13.5
 Torque Constant N.m/A 0.13 0.12 0.13 0.13 0.13
 Rotor Inertia g.c㎡ 400 800 1200 1600 2400
 Body Length mm 71 84.5 98 111.5 138.5
 Weight Kg 1.5 1.9 2.3 2.7 4
 Sensor Honeywell
 Insulation Class B
 Degree of Protection IP30
 Storage Temperature -25~+70℃
 Operating Temperature -15~+50℃
 Working Humidity 85% or under 85% RH(non condensing)
 Working Environment outdoor(no direct sunlight),Non-corrosive Gas,
Non-inflammable gas, No oil fog, No dust
 Altitude 1000m or under 1000m





3. Gearbox Electrical Specification:

 Reduction ratio 4 5 10 16 20 25 40 50 100
 Number of geartrains 1 3
 Transmission efficiency 91% 82%
 Rated torque 50 N.m 80 N.m
 Max rated torque 100 N.m 160 N.m
 L2 length(mm) 75 90



Matching Stepper motor Driver: JKBLS300 JKBLS750

4. Dimensions: (Unit=mm)

48v 3000rpm 3 Phase Planetary Nema 34 Bldc Motor 8 Poles 0

5.The main parameters to be referenced in the selection of brushless DC motor are as follows:



Maximum torque: this can be obtained by adding the load torque, moment of inertia and friction. In addition, additional factors such as air gap air resistance influence the maximum torque.



Square modulus torque: can be approximately considered as the continuous output torque required for practical application, determined by many factors: maximum torque, load torque, moment of inertia, acceleration, deceleration, and running time, etc.



Speed: this is the required speed, which can be determined according to the speed trapezoidal curve of the motor, usually 10% margin should be left in the calculation.



6. Applications:

(Stepper motor, electrical motor,brake motor,motor driver,gear motor,bldc motor,brushless motor)

  • 3d printers
  • CNC routers
  • Engraving Machines
  • Stage lighting control
  • Security surveillance
  • Video equipment
  • Laserworkstation
  • Carving machine
  • Office automation
  • Smart toy
  • Digital controlled machinery
  • Medical instrument
  • Other automatic equipment
