|Place of Origin:||Jiangsu, China (Mainland)|
|Minimum Order Quantity:||1PCS~5PCS|
|Packaging Details:||with export carton . big quantity with pallet|
|Delivery Time:||For samples , 7-15 days / For batch , 15-25days|
|Payment Terms:||T/T , paypal , Western Union, L/C|
|Nema:||42mm Square Bldc Motor||Holding Torque:||0.25N.m|
|Number Of Phase:||3phase||Number Of Poles:||8|
|Rated Voltage:||24v||Rated Speed:||4000rpm|
|Rated Power:||105w||Matching Driver:||JKBLD120|
|Degree Of Protection:||IP30|
bldc motor with driver controller,
42mm 24v brushless dc motor,
105W 24v brushless dc motor

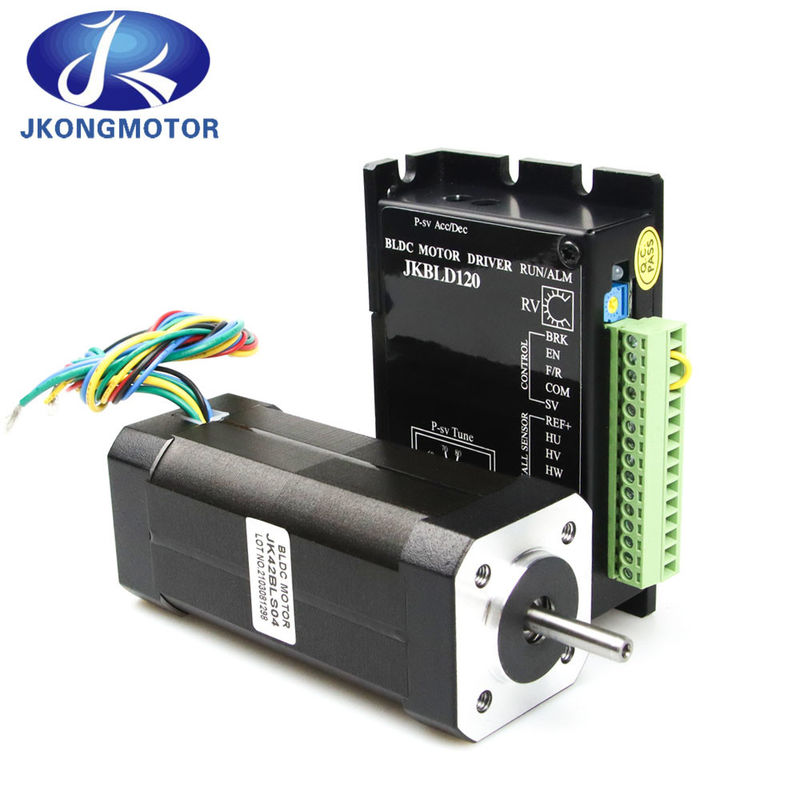

12v/24v 4000rpm 105W 42mm bldc motor with driver controller
Brushless DC motors (BLDC) feature high efficiency and excellent controllability, and are widely used in many applications. The BLDC motor has power-saving advantages relative to other motor types.
BLDC motors can be controlled, using feedback mechanisms, to delivery precisely the desired torque and rotation speed. Precision control in turn reduces energy consumption and heat generation, and—in cases where motors are battery powered—lengthens the battery life.
motores paso a pas
1.Genaral Specification of bldc motor:
|Place of Origin||China|
|Model Number||42mm Brushless dc motor|
|Usage||BOAT, Car, Electric Bicycle, FAN, Home Appliance, Cosmetic instrument, SMART HOME|
|Hall effect angle||120degree electrical angle|
2. Electrical Specification of brushless dc motors:
|Number Of Phase||Phase||3|
|Number Of Poles||Poles||8|
|Degree of Protection||IP30|
|Working Humidity||85% RH|
|Working Environment||Outdoor (no direct sunlight), no corrosive gas, no flammable gas, no oil mist, no dust|
|Altitude||1000 meters or less|
The matching bldc Driver: JKBLD120
4.Dimensions of 12v/24v bldc motor: (Unit=mm)
5.Advantages of 4000rpm bldc motor:
A BLDC motor with three coils on the stator will have six electrical wires (two to each coil) extending from these coils. In most implementations three of these wires will be connected internally, with the three remaining wires extending from the motor body (in contrast to the two wires extending from the brushed motor described earlier). Wiring in the BLDC motor case is more complicated than simply connecting the power cell’s positive and negative terminals; we will look more closely at how these motors work in the second session of this series. Below, we conclude by looking at the advantages of by BLDC motors.
6.Applications of brushless dc motor:
We can expect to see BLDC motors used in a wider range of applications in the future. For example, they will probably be widely used to drive service robots—small robots that deliver services in fields other than manufacturing. One might think that stepper motors would be more suitable in this type of application, where pulses could be used to precisely control positioning. But BLDC motors are better suited to controlling the force. And with a stepper motor, holding the position of a structure such as a robot arm would require a relatively large and continuous current. With a BLDC motor, all that would be required is a current proportionate to the external force—allowing for more power-efficient control. BLDC motors may also be replacing simple brushed dc motors in golf carts and mobility carts. In addition to their better efficiency, BLDC motors can also deliver more precise control—which in turn can further extend battery life.
BLDC motors are also ideal for drones. Their ability to deliver precision control makes them especially suited for multirotor drones, where the drone’s attitude is controlled by precisely controlling the rotational speed of each rotor.
7.Customized of brushless electric motor:
