Place of Origin: | Jiangsu, China (Mainland) |
Brand Name: | Jkongmotor |
Certification: | CE, ROHS,ISO9001 |
Model Number: | JK42HS40-1004A-02F |
Minimum Order Quantity: | 3-10pcs |
---|---|
Price: | US$3~US$5 |
Packaging Details: | with export carton . big quantity with pallet |
Delivery Time: | For samples , 7-15 days / For batch , 15-25days |
Payment Terms: | T/T , paypal , Western Union, L/C |
Supply Ability: | 100000pcs/month |
Shaft: | Single Or Double | Leads: | 4 |
---|---|---|---|
Current: | 1A | Holding Torque: | 4.0kg.cm |
Step Angle: | 1.8 Degree | Weight: | 0.28kg |
MOQ: | 10pcs | ||
Highlight: | electric stepper motor,nema stepper motor |

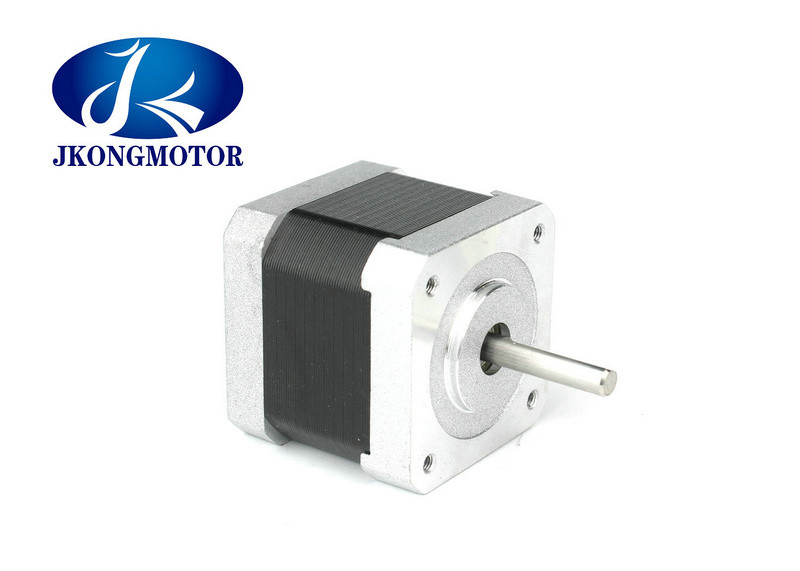

Nema17 Hybrid Stepper Motor High Torque 4.0kg.cm 56oz.in With Fast Connector D-shaft For 3d Printer
Stepping motor is an open-loop control element that converts electrical pulse signals into angular displacement or linear displacement. In the case of non-overload, the motor speed and stop position only depend on the frequency and pulse number of the pulse signal, and are not affected by the load change. When the stepper driver receives a pulse signal, it drives the stepper motor The set direction rotates at a fixed angle, called "step angle", and its rotation runs step by step at a fixed angle. The angular displacement can be controlled by controlling the number of pulses, so as to achieve the purpose of accurate positioning; at the same time, the speed and acceleration of the motor rotation can be controlled by controlling the pulse frequency, so as to achieve the purpose of speed regulation.
Genaral Specification:
Item | Specifications |
Step Angle | 1.8° |
Temperature Rise | 80℃max |
Ambient Temperature | -20℃~+50℃ |
Insulation Resistance | 100 MΩ Min. ,500VDC |
Dielectric Strength | 500VAC for 1minute |
Shaft Radial Play | 0.02Max. (450g-load) |
Shaft Axial Play | 0.08Max. (450g-load) |
Max. radial force | 28N (20mm from the flange) |
Max. axial force | 10N |
Electrical Specification:
Model No. | Step Angle | Motor Length |
Current /Phase |
Resistance /Phase |
Inductance /Phase |
Holding Torque | # of Leads | Detent Torque | Rotor Inertia | Mass |
( °) | (L)mm | A | Ω | mH | kg.cm | No. | g.cm | g.cm | Kg | |
JK42HS40-1004A-02F | 1.8 | 40 | 1 | 3.9 | 8.9 | 4.0 | 4 | 150 | 54 | 0.28 |
Dimensions: (Unit=mm)
Wiring Diagram:
Customized
Stepper Motor Applications
