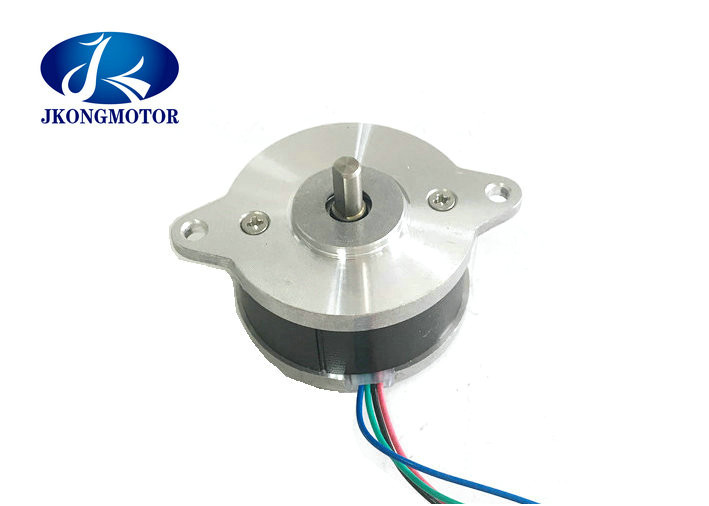

Thin Round Hybrid Stepper Motor 0.9 Degree 12mm High Precision

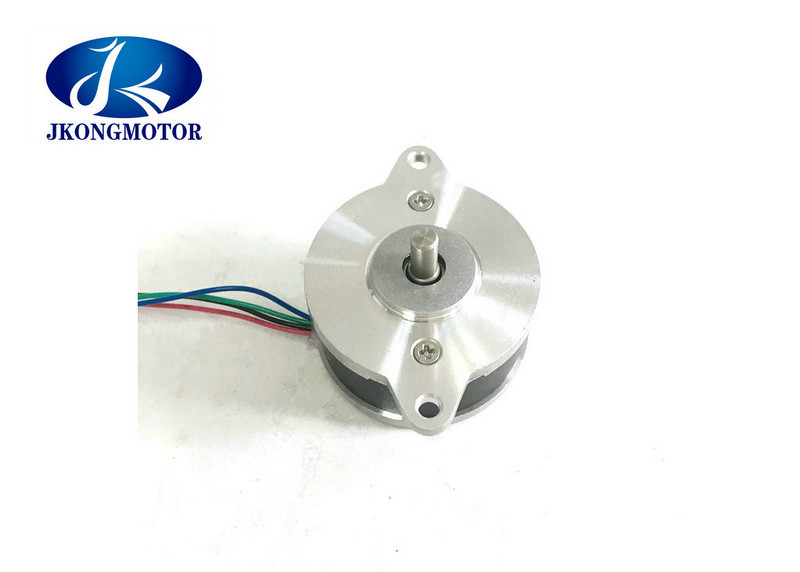

Thin Round Hybrid Stepper Motor 0.9 Degree 12mm High Precision

Thin Round Hybrid Stepper Motor 0.9 Degree 12mm High Precision
video
Thin Round Hybrid Stepper Motor 0.9 Degree 12mm High Precision
Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jkongmotor
Certification: CE, ROHS,ISO9001
Model Number: JK36HM12-0304
Payment & Shipping Terms:
Minimum Order Quantity: 3-10pcs
Price: US $4.2 - 9 / Pieces
Packaging Details: with export carton . big quantity with pallet
Delivery Time: For samples , 7-15 days / For batch , 15-25days
Payment Terms: T/T , paypal , Western Union, L/C
Supply Ability: 30000 pcs/month
Contact Now
Detailed Product Description
Phase: 2 Type: Hybrid
Step Angle: 0.9 Degree Holding Torque: 420g.cm
Current / Phase: 0.3A Motor Shape: Round Stepper Motor
Motor Length: 12mm Motor Wires: 4
High Light:

electric stepper motor

,

nema stepper motor



0.9 Degree Hybrid Stepper Motor 12mm Thin Round Step Motor High precision



1.8degree NEMA14 thin stepper motor with round shaft

1) CE & ROHS Approved

2)   Accept customized





Genaral Specification:



Step Accuracy ------------------------------ ±5%

Resistance Accuracy ----------------------- ±10%
Inductance Accuracy ---------------------- ±20%
Temperature Rise -------------------------- 80°C MAX.
Ambient Temperature Range ------------- -20°C~ +50°C
Storage Temperature Range ------------- -30°C~ +60°C
Insulation Resistance ---------------------- 100M Ω MIN. 500V DC
Dielectric Strength ------------------------- 500V AC 1min
Radial Play --------------------------------- 0.02mm MAX. (450g Load)
End Play ------------------------------------ 0.08mm MAX. (450g Load)



Model No.

Step Angle

Motor Length

Current

/Phase

Resistance

/Phase

Inductance

/Phase

Holding Torque

# of Leads

Detent Torque

Rotor Inertia

Mass

  ( °) (L)mm A Ω mH g.cm No. g.cm g.cm Kg
JK36HM12-0304 0.9 12 0.3 16.8 8.5 420 4 80 4 0.06
JK36HM18-0404 0.9 19 0.4 12 5 560 4 100 6 0.1
JK36HM21-0404 0.9 21 0.425 9 5 810 4 125 7 0.13





Thin Round Hybrid Stepper Motor 0.9 Degree 12mm High Precision 0



Advantages

  • Low cost for control achieved
  • High torque at startup and low speeds
  • Ruggedness
  • Simplicity of construction
  • Can operate in an open loop control system
  • Low maintenance
  • Less likely to stall or slip
  • Will work in any environment
  • Can be used in robotics in a wide scale.
  • High reliability
  • The rotation angle of the motor is proportional to the input pulse.
  • The motor has full torque at standstill (if the windings are energized)
  • Precise positioning and repeatability of movement since good stepper motors have an accuracy of 3–5% of a step and this error is non-cumulative from one step to the next.
  • Excellent response to starting/stopping/reversing.
  • Very reliable since there are no contact brushes in the motor. Therefore, the life of the motor is simply dependent on the life of the bearing.
  • The motors response to digital input pulses provides open-loop control, making the motor simpler and less costly to control.
  • It is possible to achieve very low-speed synchronous rotation with a load that is directly coupled to the shaft.
  • A wide range of rotational speeds can be realized as the speed is proportional to the frequency of the input pulses.

Applications

As the stepper motor are digitally controlled using an input pulse, they are suitable for use with computer controlled systems.

They are used in numeric control of machine tools.

Used in tape drives, floppy disc drives, printers and electric watches.

The stepper motor also use in X-Y plotter and robotics.

It has wide application in textile industries and integrated circuit fabrications.

The other applications of the Stepper Motor are in spacecrafts launched for scientific explorations of the planets etc.

These motors also find a variety of commercial, medical and military applications and also used in the production of science fiction movies.

Stepper motors of microwatts are used in the wrist watches.

In the machine tool, the stepper motors with ratings of several tens of kilowatts is used.
