1.5kw High Speed Spindle Motors ER11 , ER16 Water Cooled Spindle Motors For Cnc Machines

1.5kw High Speed Spindle Motors ER11 , ER16 Water Cooled Spindle Motors For Cnc Machines

  • 1.5kw  High Speed Spindle Motors ER11 ,  ER16 Water Cooled Spindle Motors For Cnc Machines
  • 1.5kw  High Speed Spindle Motors ER11 ,  ER16 Water Cooled Spindle Motors For Cnc Machines
1.5kw  High Speed Spindle Motors ER11 ,  ER16 Water Cooled Spindle Motors For Cnc Machines
Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jkongmotor
Certification: CE, ROHS,ISO9001
Model Number: 1.5 KW Spindle Motor
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece/Pieces
Price: US $87 - 135 / Pieces
Packaging Details: with export carton . big quantity with pallet
Delivery Time: For samples , 7-15 days / For batch , 15-25days
Payment Terms: T/T , paypal , Western Union, L/C
Supply Ability: 3000 PCS/MOMTH
Contact Now
Detailed Product Description
Application: CNC Product Name: Water Cooled Spindle Motor
Voltage: 220v / 380V Frequencies: 400HZ
Radial Runout: 0.01mm Proper Alignment: 0.025mm
High Light:

air cooled spindle motor

,

water cooled spindle motor



1.5kw Water / Air Cooling Cnc High Speed Spindle Motor ER11 ER16 ER20

CHANGZHOU JKONGMOTOR CO., LTD sells 2 types of spindle motors for CNC machine, wood carving/engraving machine, which are air cooled type spindle motor from 800W to 7.5kW and water cooled spindle motor from 1.5kW to 6kW. They features with simple and compact configuration, stable performance, reasonable price, high precision bearings, long service life and high speed to 24000rpm. Working at 3 phase 300Hz/400Hz 380V AC power supply, need to be equipped with VFD to use.



Features:

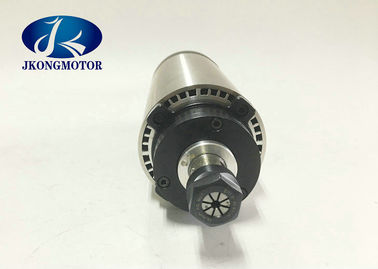

Cooling: Water cooling, Power: 1.5kW, Current: 8A, Collet: ER11

Voltage: 110V/220V/380V AC at 400Hz, cooled spindle motor speed: 1-24000 R/min

Fast response, strong overload capacity, low noise and high mechanical precision.

Tight sealing and two-layer dustproof design.

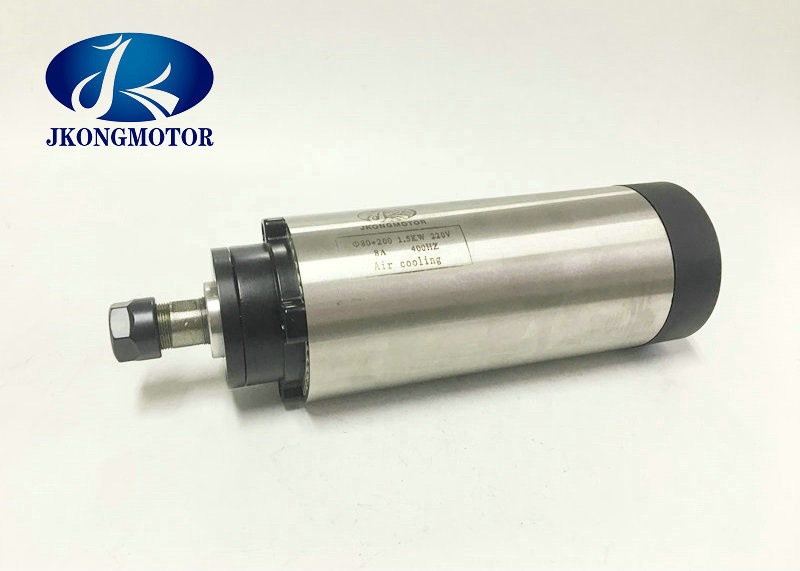

Cooling: Air cooling, Power: 1.5kW, Current: 8A, Collet: ER16

Voltage: 110V/220V/380V AC at 400Hz, cooled spindle motor speed: 1-24000 R/min

Fast response, strong overload capacity, low noise and high mechanical precision.

Tight sealing and two-layer dustproof design.



Electrical Specification:

1.5kw  High Speed Spindle Motors ER11 ,  ER16 Water Cooled Spindle Motors For Cnc Machines 0

1.5kw  High Speed Spindle Motors ER11 ,  ER16 Water Cooled Spindle Motors For Cnc Machines 1

1.5kw  High Speed Spindle Motors ER11 ,  ER16 Water Cooled Spindle Motors For Cnc Machines 2

Air cooled spindle motor ,2.2kw air cooling spindle motor,3kw water cooling spindle motor,

4.5kw spindle motor, 24000rpm

Model Speep (RPM)

Power

(KW)

Voltate

(V)

current

(A)

frequency
(HZ)

weight

(KG)

Bearings type Joint of nose lubrication cool Phase
JK2 Φ65 *208 1-2.4 1.5 220 8 400 3.2 c7002*2 c7002*2 ER11Φ3.175 -Φ6 grease air 3
JK3 Φ80*200 1-2.4 1.5 220 8 400 3.7 c7002*2 c7002*2 ER11-16Φ3.175 -Φ6 grease air 3





TIPS:

The spindle motor of woodworking engraving machine is an important component of woodworking engraving machine. The advantages and disadvantages of the spindle motor directly affect the processing speed and accuracy of the engraving machine. How to select high-quality spindle motor is very important. The main points of woodworking engraving machine spindle selection for the reference of users:

1. If we pursue the efficiency of woodworking engraving machine, we should not only have a high speed, but also a large amount of knives. For example, when processing solid wood, we need a spindle motor with a power of more than 3KW.

2. Whether the spindle motor of woodworking engraving machine adopts high-precision bearings or not, if it does not use high-precision bearings, the performance is that the spindle motor overheated after long-term high-speed rotation, which affects the service life of the spindle motor.

3. Whether the spindle of woodworking engraving machine rotates at different speeds, especially at high speeds, the sound is uniform and harmonious.

4. Whether the radial force of the principal axis of woodworking engraving machine is applied. The main reference is whether the material with hard texture can be cut at high speed. Some spindle motors can only cut hard materials at very low speed, otherwise the performance of the motor will be seriously lost, which will affect the accuracy of the spindle after a period of time, or even cause faults.



Inverter

1.5kw  High Speed Spindle Motors ER11 ,  ER16 Water Cooled Spindle Motors For Cnc Machines 3
