Geared Stepper Motor Nema 17 1.8 Degree 2 Phase Stepper Motor Gear Reducer 5.6kg.Cm 78oz.In For 3D Printer

Geared Stepper Motor Nema 17 1.8 Degree 2 Phase Stepper Motor Gear Reducer 5.6kg.Cm 78oz.In For 3D Printer

  • Geared Stepper Motor Nema 17 1.8 Degree  2 Phase Stepper Motor Gear Reducer 5.6kg.Cm 78oz.In For 3D Printer
  • Geared Stepper Motor Nema 17 1.8 Degree  2 Phase Stepper Motor Gear Reducer 5.6kg.Cm 78oz.In For 3D Printer
Geared Stepper Motor Nema 17 1.8 Degree  2 Phase Stepper Motor Gear Reducer 5.6kg.Cm 78oz.In For 3D Printer
Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jkongmotor
Certification: CE, ROHS,ISO9001
Model Number: JK42HS60-1206
Payment & Shipping Terms:
Minimum Order Quantity: 3-10pcs
Price: US $18.5 - 28 / Units
Packaging Details: with export carton . big quantity with pallet
Delivery Time: For samples , 7-15 days / For batch , 15-25days
Payment Terms: T/T , paypal , Western Union, L/C
Supply Ability: 30000 pcs/month
Contact Now
Detailed Product Description
Phase: 2-phase Type: Hybrid
Step Angle: 1.8 Degree Holding Torque: 5.6kg.cm
Motor Length: 60mm Voltage Range: 24V~48VDC
Suitable Motor: Nema 17 Stepping Motor Stepper Driver Model: JK0220
High Light:

gear reduction motor

,

worm gear stepper motor


NEMA17 5.6kg.cm 78oz.in Planetary Geared Stepper Motor Ratio 3.71:1 - 139:1




Genaral Specification of nema 17 stepper motor gear reducer:



Housing Material

Metal

Bearing at Output

Ball Bearings

Max.Radial Load(12mm from flange)

80N

Max.Shaft Axial Load

30N

Radial Play of Shaft (near to Flange)

0.06mm

Axial Play of Shaft

0.3mm

Backlash at No-load

1.5°



42HS Hybrid Stepping Motor Specifications of nema 17 stepper motor for 3D printer:


Model No.

Step Angle

Motor Length

Current

/Phase

Resistance

/Phase

Inductance

/Phase

Holding Torque

# of Leads

Detent Torque

Rotor Inertia

Mass

( °)

(L)mm

A

Ω

mH

kg.cm

No.

g.cm

g.cm

Kg

JK42HS60-1206

1.8

60

1.2

6

7

5.6

6

280

102

0.5



Specifications of nema 17 stepper motor with gearbox:


Reduction ratio

3.71

5.18

13.76

19.2

26.8

51

71

99.5

139

Number of gear trains

1

2

3

Length(L2)   mm

27.3

35

42.7

Max.rated torque    kg.cm

20

30

40

Short time permissible torque  kg.cm

40

60

80

Weight      g

350

450

550



Details of Geared Stepper Motor Nema 17:

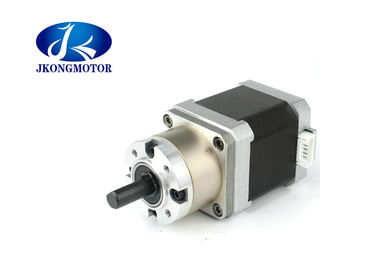

Geared Stepper Motor Nema 17 1.8 Degree  2 Phase Stepper Motor Gear Reducer 5.6kg.Cm 78oz.In For 3D Printer 0

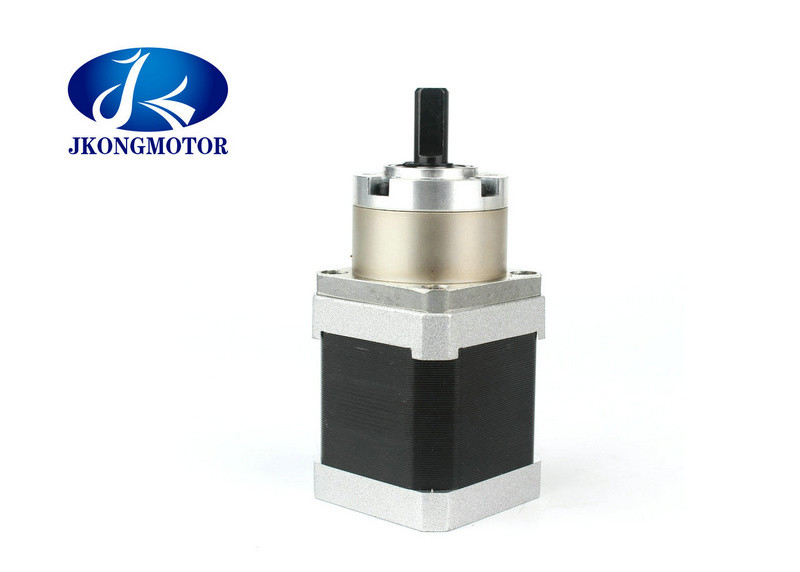

Geared Stepper Motor Nema 17 1.8 Degree  2 Phase Stepper Motor Gear Reducer 5.6kg.Cm 78oz.In For 3D Printer 1



We also can customized motor according to your special requirements.

There are few different types of stepper motor with gearbox.

You can choose reducer ratio.

Geared Stepper Motor Nema 17 1.8 Degree  2 Phase Stepper Motor Gear Reducer 5.6kg.Cm 78oz.In For 3D Printer 2

The common product include hybrid stepper motor,linear stepper motor,Planetary gear reducer stepper motor,

stepper motor with brake,brushless dc motor,dc motor,ac servo motor,spindle motor,stepper driver,bldc driver,

planetary gear reducer bldc motor,couplings,pulley,power supply and so on.

Geared Stepper Motor Nema 17 1.8 Degree  2 Phase Stepper Motor Gear Reducer 5.6kg.Cm 78oz.In For 3D Printer 3
