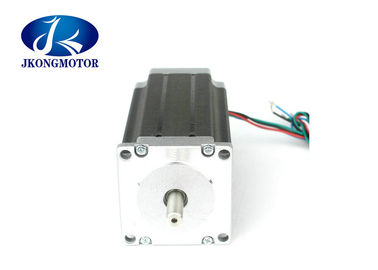

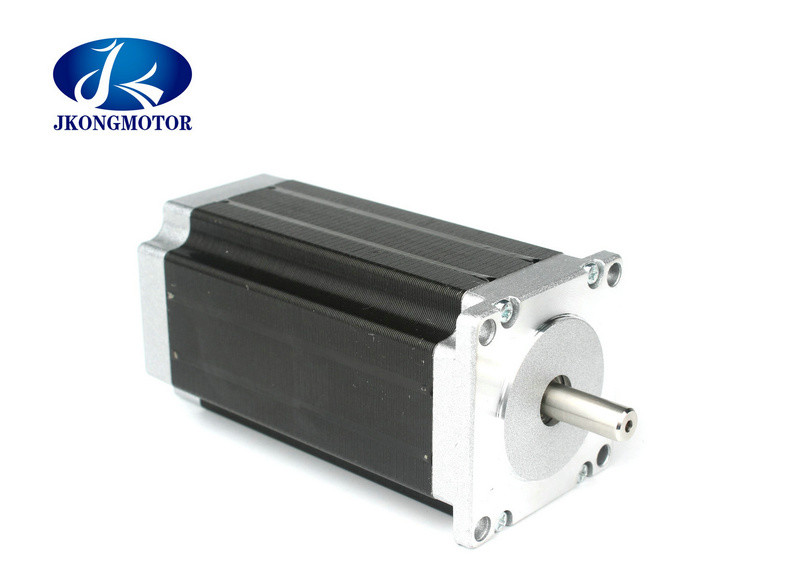

Nema23 Stepper Motor High Torque 3N.M 425oz.In For CNC Mill Lathe Router

Nema23 Stepper Motor High Torque 3N.M 425oz.In For CNC Mill Lathe Router

  • Nema23 Stepper Motor High Torque  3N.M 425oz.In For CNC Mill Lathe Router
  • Nema23 Stepper Motor High Torque  3N.M 425oz.In For CNC Mill Lathe Router
Nema23 Stepper Motor High Torque  3N.M 425oz.In For CNC Mill Lathe Router
Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jkongmotor
Certification: CE, ROHS,ISO9001
Model Number: JK57HS112-3004
Payment & Shipping Terms:
Minimum Order Quantity: 3-10pcs
Price: US$13.5~US$18
Packaging Details: with export carton . big quantity with pallet
Delivery Time: For samples , 7-15 days / For batch , 15-25days
Payment Terms: T/T , paypal , Western Union, L/C
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Shaft: 8mm Round Leads: 4
Current: 3A Holding Torque: 3.0N.m
Step Angle: 1.8 Degree Motor Length: 112mm
Type: Nema 23 Stepper Motor Application: Cnc Machine
High Light:

micro stepper motor

,

nema stepper motor

Nema23 Hybrid Stepper Motor 30kg.cm 425oz.in CNC Mill Lathe Router


1.Electrical Specification of nema 23 stepper motor:

Motor Length: 112mm

Current/Phase :  3A

Resistance/Phase : 1.6Ω

Inductance/Phase : 7.5mH

Holding Torque : 3 N.m

# of Leads : 4

Detent Torque : 1200g.cm

Rotor Inertia : 800g.cm

Mass : 1.4KG

Matching Stepper Driver : JKD5056S


2.Genaral Specification of  57BYG stepper motor:

 Item  Specifications
 Step Angle  1.8°
 Temperature Rise  80℃max
 Ambient Temperature  -20℃~+50℃
 Insulation Resistance  100 MΩ Min. ,500VDC
 Dielectric Strength  500VAC for 1minute
 Shaft Radial Play  0.02Max. (450g-load)
 Shaft Axial Play  0.08Max. (450g-load)
 Max. radial force  75N (20mm from the flange)
 Max. axial force  15N


3.Drawing of 57mm stepper motor
Nema23 Stepper Motor High Torque  3N.M 425oz.In For CNC Mill Lathe Router 0

Details of FL57STH115-3004A

Nema23 Stepper Motor High Torque  3N.M 425oz.In For CNC Mill Lathe Router 1

Nema23 Stepper Motor High Torque  3N.M 425oz.In For CNC Mill Lathe Router 2

4.Applications of nema 23 high torque stepping motor:

Use for

  • Industry of automation
  • Medical and health care equipment
  • 3d printer machines
  • Packing devices
  • Information Technology
  • Household appliance products
