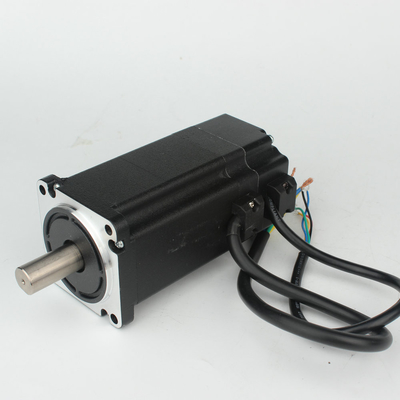

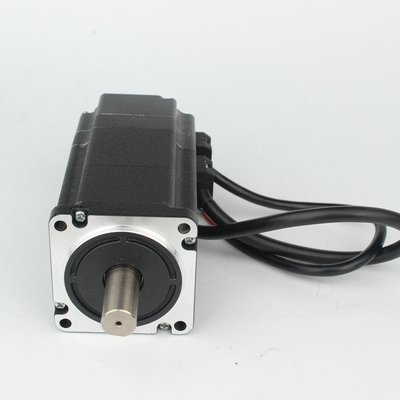

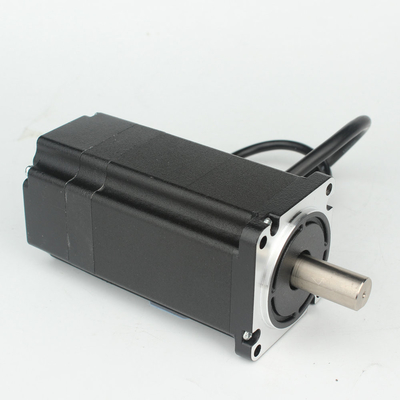

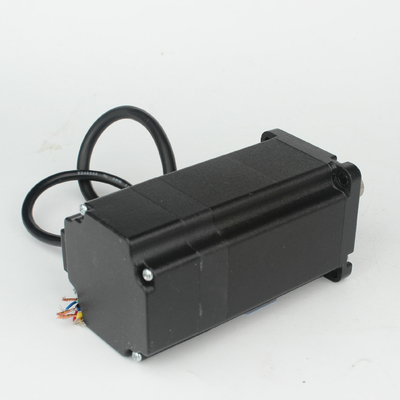

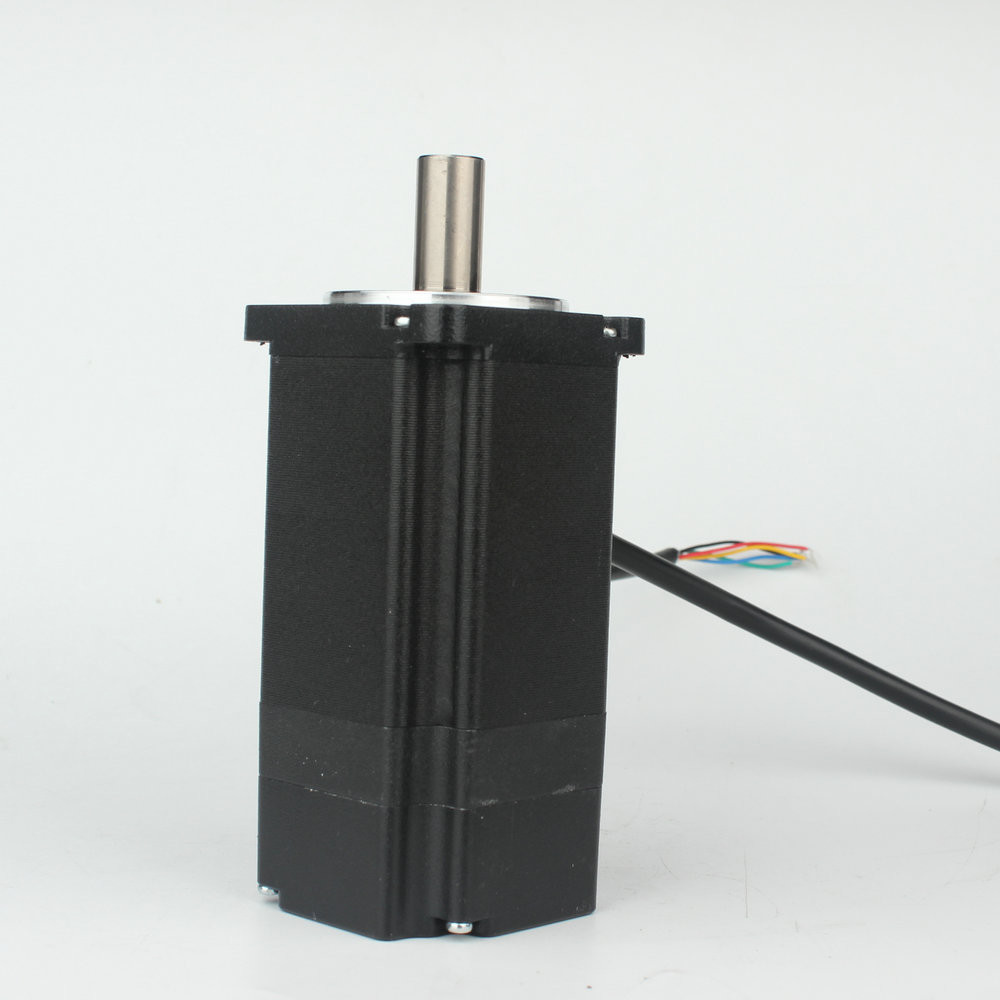

60mm Square BLDC motor

60mm Square BLDC motor

60mm Square BLDC motor
video
60mm Square BLDC motor
Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jkongmotor
Certification: CE, ROHS,ISO9001
Model Number: JK60BLS01
Payment & Shipping Terms:
Minimum Order Quantity: 3-10pcs
Price: US$17.50~$20.00/PC
Packaging Details: with export carton . big quantity with pallet
Delivery Time: For samples , 7-15 days / For batch , 15-25days
Payment Terms: T/T , paypal , Western Union, L/C
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Product Type: Brushless DC Motor Model Name: JK60BLS01
Phase No: 3 Phase Poles No: 8
VDC: 48 Rated Speed: 3000 Rpm
Rated Torque: 0.3N.m Rated Current: 2.8 Amps
Rated Power: 94W MOQ: 3pcs
Highlight:

60mm Square BLDC motor

,

60mm BLDC motor

,

Square BLDC motor

JK60BLS 60mm Square BLDC motor

基本性能/General Specification
项目(Item) 性能(Specification)
绕组连接方式 Winding type 星型连接 Star
霍尔分布角度 Hall effect angle 120度电角度 120 degree electrical angle
转轴跳动 Shaft run out 0.025mm
径向间隙 Radial play 0.02mm@450g
轴向间隙 End play 0.08mm@450g
径向最大承受力 Max.radial force 115N @20mm form the flange
轴向最大承受力 Max.axial force 45N
绝缘等级 Insulation class Class B
介电强度 Dielectric strength 500VDC for one minute
绝缘电阻 Insulation resistance 100MΩ Min.,500VDC

60mm Square BLDC motor 0

60mm Square BLDC motor 1





60mm Square BLDC motor 2



60mm Square BLDC motor 3

60mm Square BLDC motor 4


60mm Square BLDC motor 5

60mm Square BLDC motor 6

60mm Square BLDC motor 7

60mm Square BLDC motor 8

60mm Square BLDC motor 9




60mm Square BLDC motor 10

FAQ:



Q: 1. Can you make the gearbox or gearmotor with custom specifications?
A: YES. We have strong R&D capability, also a great term of engineers, each of them have many work years experience.

Q: 2. Do you provide the samples?
A: YES. Our company can provide the samples to you

Q:3.Do you provide technology support?
A: YES. Our company have strong R&D capability, we can provide technology support if you need.

Q: 4. why should you buy from us not from other suppliers?
A: Professional one-to-one motor customized . The world's large enterprise of choice for high quality suppliers . ISO9001:2008 quality management system certification, through the CE, ROHS certification.

Q: 5. How to ship to us?
A: We will ship the samples to you according to the DHL or UPS or FEDEX etc account you provide.

Q: 6. How can I know the product is suitable for me?
A: Frist, you need to provide us the more details information about the product. We will recommend the item to you according to your requirement of specification. After you confirm, we will prepare the samples to you. also we will offer some good advances according to your product use.
