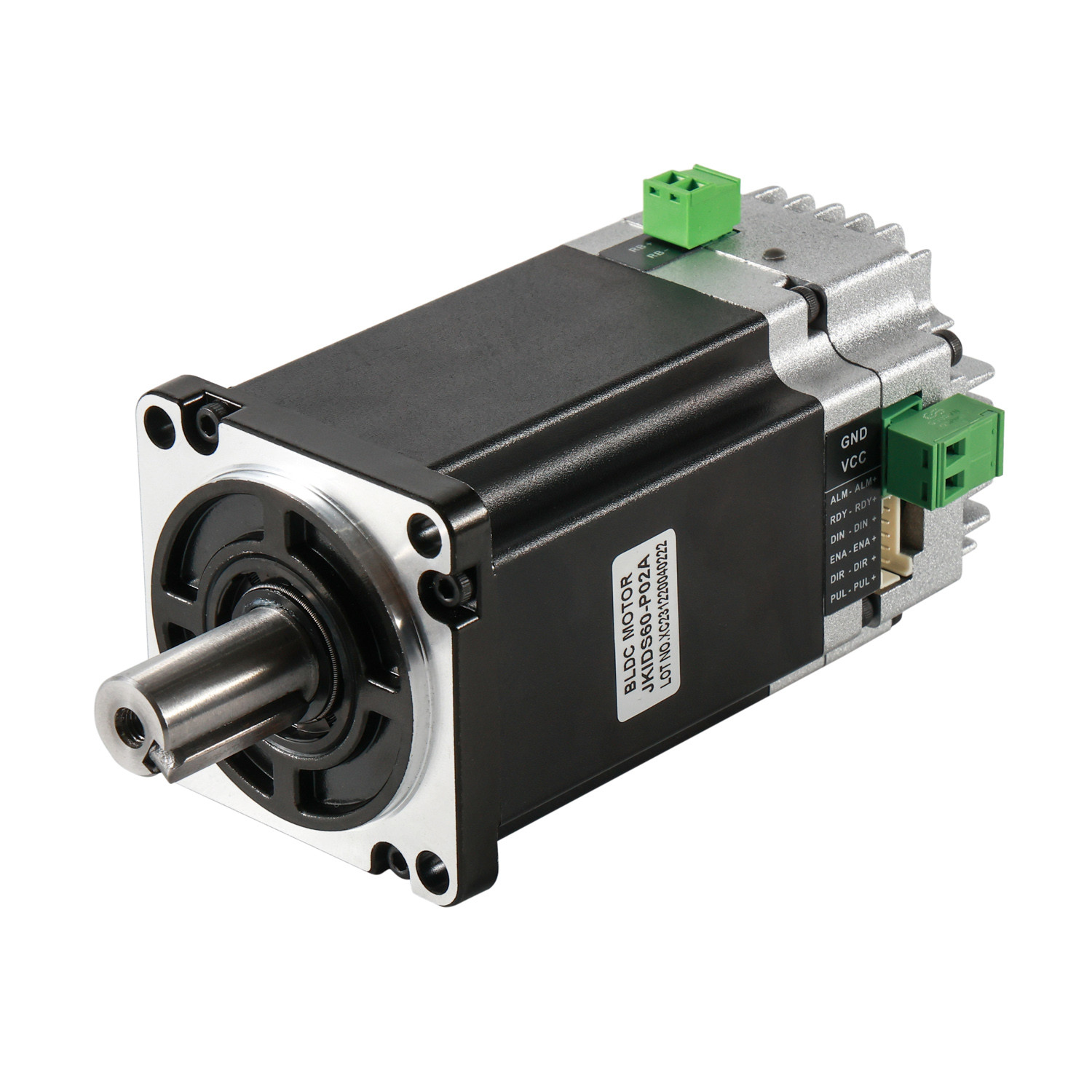

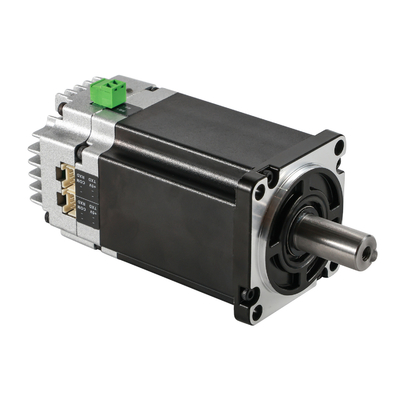

Name: 60mm Square Integrated DC Servo Motor 200/400W RS485 Control
Brand: CHANGZHOU JKONGMOTOR CO.,LTD
SKU: JKIDS60-P02A
Price: 75.00 USD
Availability: InStock

Home Products Brushless DC Motor

60mm Square Integrated DC Servo Motor 200/400W RS485 Control

Product Details:

Place of Origin:	Jiangsu, China (Mainland)
Brand Name:	Jkongmotor
Certification:	CE, ROHS,ISO9001
Model Number:	JKIDS60-P02A

Payment & Shipping Terms:

Minimum Order Quantity:	3-10pcs
Price:	USD75.00
Packaging Details:	with export carton . big quantity with pallet
Delivery Time:	For samples , 7-15 days / For batch , 15-25days
Payment Terms:	T/T , paypal , Western Union, L/C
Supply Ability:	100000pcs/month

Contact Now

Detailed Product Description

Name:	BL DC Motor	Current:	11.5A
Rated Torque:	1.27N.m	Rated Speed:	3000±10%rpm
Rated Power:	400w	Phase Inductance:	0.49±20%
Phase Resistance:	0.25±10%
Highlight:	200/400W Integrated DC Servo Motor , RS485 Control DC Servo Motor , 60mm Square DC Servo Motor

1.Genaral Specification of 60mm Square Integrated DC Servo Motor 200/400W RS485 Control :

Model: JKIDS60-P02A
Power: 400W
Rated Voltage:48V
Rated Current: 11A
Rated Speed:3000rpm
Rated Torque: 1.27N.m
Total Height: 112mm

2.Electrical Specification of 60mm Square Integrated DC Servo Motor 200/400W RS485 Control:

Model No.	Power	Rated Voltage	Rated Current	Rated Speed	Rated Torque	Total Height	Encoder	Control method
Model No.	( w)	(VDC)	(A)	(rpm)	(N.m)	(L)mm		(optional)
JKIDS60-P01A	200	24	11.5	3000	0.63	94	17bit	pulse	RS485	CANopen
JKIDS60-P02A	400	48	11.5	3000	1.27	112	17bit	pulse	RS485	CANopen

3.Drawing of 60mm Square Integrated DC Servo Motor 200/400W RS485 Control:

60mm Square Integrated DC Servo Motor 200/400W RS485 Control 0

4.Produce equipment:

5.Production Process:

6.Advantages of 60mm Square Integrated DC Servo Motor 200/400W RS485 Control:

Adopting a new 32-bit M4+core with120M or 240M main frequency
Stable torque characteristics from low to high speeds,with high speed and precision
Equipped with brake resistor interface to prevent damage to the electromechanical braking system
Wide speed range,low temperature rise and high efficiency
Integrated motor and drive ,compact size,simple wiring,and drive
Good compatibility with the motor
Equipped with overcurrent,overvoltage,over temperature,and over differential protection functions
Configure a 17 bit single turn absolute encoder

60mm Square Integrated DC Servo Motor 200/400W RS485 Control 3
