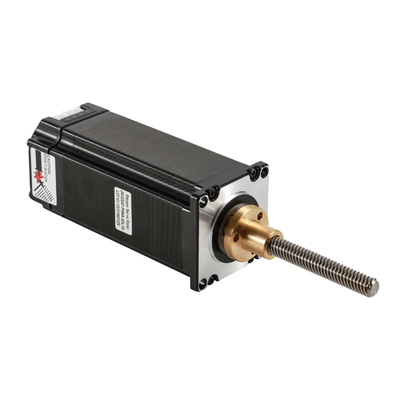

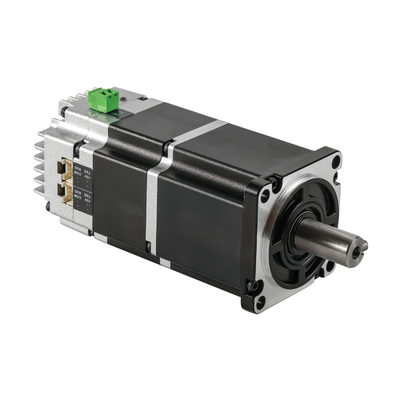

Jkongmotor RS485 Canopen Stepper Electric Engine NEMA 17 23 Integrated Servo Motor with Gearbox or Brake for Textile

Jkongmotor RS485 Canopen Stepper Electric Engine NEMA 17 23 Integrated Servo Motor with Gearbox or Brake for Textile

  • Jkongmotor RS485 Canopen Stepper Electric Engine NEMA 17 23 Integrated Servo Motor with Gearbox or Brake for Textile
  • Jkongmotor RS485 Canopen Stepper Electric Engine NEMA 17 23 Integrated Servo Motor with Gearbox or Brake for Textile
  • Jkongmotor RS485 Canopen Stepper Electric Engine NEMA 17 23 Integrated Servo Motor with Gearbox or Brake for Textile
  • Jkongmotor RS485 Canopen Stepper Electric Engine NEMA 17 23 Integrated Servo Motor with Gearbox or Brake for Textile
  • Jkongmotor RS485 Canopen Stepper Electric Engine NEMA 17 23 Integrated Servo Motor with Gearbox or Brake for Textile
  • Jkongmotor RS485 Canopen Stepper Electric Engine NEMA 17 23 Integrated Servo Motor with Gearbox or Brake for Textile
  • Jkongmotor RS485 Canopen Stepper Electric Engine NEMA 17 23 Integrated Servo Motor with Gearbox or Brake for Textile
  • Jkongmotor RS485 Canopen Stepper Electric Engine NEMA 17 23 Integrated Servo Motor with Gearbox or Brake for Textile
  • Jkongmotor RS485 Canopen Stepper Electric Engine NEMA 17 23 Integrated Servo Motor with Gearbox or Brake for Textile
  • Jkongmotor RS485 Canopen Stepper Electric Engine NEMA 17 23 Integrated Servo Motor with Gearbox or Brake for Textile
  • Jkongmotor RS485 Canopen Stepper Electric Engine NEMA 17 23 Integrated Servo Motor with Gearbox or Brake for Textile
Jkongmotor RS485 Canopen Stepper Electric Engine NEMA 17 23 Integrated Servo Motor with Gearbox or Brake for Textile
Product Details:
Place of Origin: China
Brand Name: Jkongmotor
Certification: CE, Rohs, Reach, ISO9001, ISO14001
Model Number: Integrated Stepper Servo Motor
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: USD10-40
Packaging Details: sample with export carton . big quantity with pallet
Delivery Time: For samples , 7-15 days / For batch , 15-35days
Payment Terms: T/T, Western Union, paypal, L/C
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Model: Integrated Stepper Motor Key: Integrated Stepper Motor Controller
Keyword: Integrated Stepper Motor Driver Keywords: Integrated Stepper Servo Motor
Product: Integrated Lead Screw Stepper Motor
High Light:

RS485 Integrated Servo Motor

,

Brake Integrated Servo Motor

,

NEMA 17 Integrated Servo Motor

Jkongmotor RS485 Canopen Stepper Electric Engine NEMA 17 23 Integrated Servo Motor with Gearbox or Brake for Textile
Product Description:
Characteristics of Integrated Stepper Servo Motor
1. Compact: Integrated design of integrated drive motor Easy installation, small footprint, and simple wiring.
2. Multiple motion control modes: Supports the CiA402 standard protocol, including Relative position mode, absolute position mode, speed Mode, torque mode, and origin regression mode.
3. low-power consumption: Adopting low internal resistance MOS to ensure motor performance Excellent torque utilization while reducing motor power consumption And heat generation, effectively extending the service life of
the motor.
4. control mode: Supports pulse/RS485/CANopen.
5. Multi segment position speed function: With multi segment position function and multi segment speed function.
6. Safe and reliable: Driver built-in in place and alarm output signal Convenient for upper computer detection and control built-in Multiple alarm functions such as over differential, over undervoltage, and over temperature Can ensure the safe operation of processing equipment.



integrated stepper servo motor

1. Company name abbreviation
2. Product series model, indicating that the motor is an ISS series, referring to the acronym for integrated stepper servo
3. Frame number (42/57), expressed in millimeters by the dimensions of the motor casing and mounting plate
4. Control method optional (P/R/C) P represents pulse, R represents RS485, and C represents CANopen bus
5. The motor model, such as (01/02/03/04/05/06), represents the model of the motor
6.Encoder type: A represents 1000lines, B represents 2500lines, C represents a 17 bit single turn absolute encoder


Jkongmotor has a wide range of micro motor production lines in the industry, including Stepper Motor, DC Servo Motor, AC Motor, Brushless Motor, Planetary Gear Motor, Planetary Gearbox etc. Through technical innovation and customization, we help you create outstanding application systems and provide flexible solutions for various industrial automation situations.

Features:
1. Adopting a new 32-bit M4+core with 120M or 240M main frequency
2. Stable torque characteristics from low to high speeds, with high speed and precision
3. Equipped with brake resistor interface to prevent damage to the electromechanical braking system
4. Wide speed range, low temperature rise, and high efficiency
5. Integrated motor and drive, compact size, simple wiring, and drive Good compatibility with the motor
6. Equipped with overcurrent, overvoltage, over temperature, and over differential protection functions
7. Configure a 17bit single turn absolute encoder

Communication method:
1. Pulse type
2. RS485 MOdbus RTU network type
3. CANopen network type

Protection level:
Waterproof type: IP30, IP54, IP65, optional

Usage:
Medical equipment, logistics transportation, industrial automation, textile machinery, laser, drawing, traditional Chinese
medicine ingredient industry, etc

42mm Integrated Stepper Servo Motor (Gearbox optional)
Model step Angle (1.8°) phase Current (A) Rated Resistance (0) Rated Torque (N.m) Total body height L (mm) Encoder Control method (optional)
JKISS42-P01A 1.8 1.3 2.1 0.22 54 1000ppr/17bit pulse RS485 CANopen
JKISS42-P02A 1.8 1.68 1.65 0.42 60 1000ppr/17bit pulse RS485 CANopen
JKISS42-P03A 1.8 1.68 1.65 0.55 68 1000ppr/17bit pulse RS485 CANopen
JKISS42-P04A 1.8 1.7 3 0.8 80 1000ppr/17bit pulse RS485 CANopen

integrated stepper motors

nema 17 integrated stepper motorintegrated stepper motor jvlbest integrated stepper motor

57mm Integrated Stepper Servo Motor (Gearbox optional)

Model step Angle (1.8°) phase Current (A) Rated Resistance (0) Rated Torque (N.m) Total body height L (mm) Encoder Control method (optional)
JKISS57-P01A 1.8 2 1.4 0.55 65 1000ppr/17bit pulse RS485 CANopen
JKISS57-P02A 1.8 2.8 0.9 1.2 80 1000ppr/17bit pulse RS485 CANopen
JKISS57-P03A 1.8 2.8 1.1 1.89 100 1000ppr/17bit pulse RS485 CANopen
JKISS57-P04A 1.8 3 1.2 2.2 106 1000ppr/17bit pulse RS485 CANopen
JKISS57-P05A 1.8 4.2 0.75 2.8 124 1000ppr/17bit pulse RS485 CANopen
JKISS57-P06A 1.8 4.2 0.9 3 136 1000ppr/17bit pulse RS485 CANopen
small integrated stepper motor
stepperonline integrated stepper motor driverstepper motor with integrated encoderstepper motor with integrated encoder

Integrated Servo motor customized:

Professional dc motor manufacture in China
