| Place of Origin: | China |
| Brand Name: | Jkongmotor |
| Model Number: | 86HSN120 |
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | 45USD/PC |
| Packaging Details: | CARTON |
| Supply Ability: | 1000PCS/MONTH |
| Phase Resistance: | Customized | Weight: | 1.2kg |
|---|---|---|---|
| Holding Torque: | 12N.m | Voltage: | 24V |
| Shaft Type: | Flat/Keyway/Round | Rated Current: | Customized |
| Phase Inductance: | Customized | Encoder Type: | Encremental Encoder |
| High Light: | 2Phase Closed Loop Stepper Motor,6A Closed Loop Stepper Motor,Nema34 Closed Loop Motor |
||

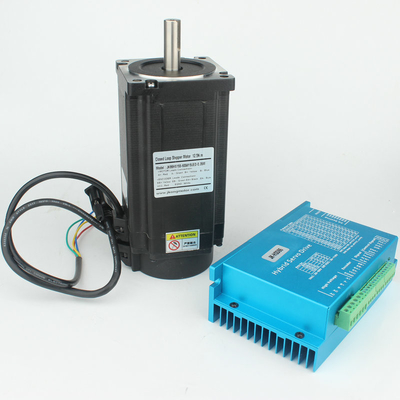

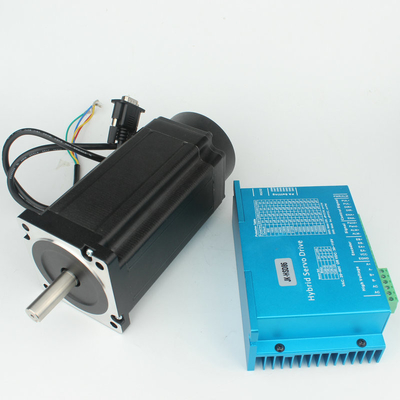

2 Phase Nema 34 Closed Loop Stepper Motor Set 12N.m 6A 86 Closed Loop Stepping Motor Encoder
Product Description:
Closed-Loop Stepper Motor is a highly efficient and reliable motor with numerous advantages. It has a rotor inertia of 1400/g.cm², a weight of 1.2 kg, an adjustable phase inductance, a voltage of 24V, and an incremental encoder type. It is suitable for applications where high precision and accuracy are required. Due to the closed-loop control, the motor is able to maintain its position and velocity with a high degree of accuracy. Additionally, the motor offers a reliable and efficient operation, as well as a wide speed range. The driver also provides a variety of features such as over-voltage protection, over-current protection, and temperature control. With its robust design and high performance, the Closed-Loop Stepper Motor is a perfect fit for many applications.
| Attribute | Value |
|---|---|
| Frame Size | 86mm |
| Weight | 1.2kg |
| Voltage | 24V |
| Encoder Type | Incremental Encoder |
| Motor Type | Closed Loop Stepper Motor |
| Holding Torque | 4.5N.m/8.5N.m/12N.m |
| Shaft Type | Flat/Keyway/Round |
| Encoder Resolution | 1000 Ppr |
| Step Angle | 1.8° |
| Rated Current | Customized |
Jkongmotor's closed-loop stepper motor (model number: 86HSN120) is a highly reliable and precise motor designed for motion control applications. The motor is made in China and has a customized phase resistance. It has a 1.8° step angle and a rotor inertia of 1400/g.cm². It requires a voltage of 24V for operation.
The closed-loop stepper motor is widely used in various applications like robotic arms, 3D printers, CNC machines, medical equipment, and other precision machinery. It provides accurate and stable movements for a variety of applications. With its high torque, speed, and accuracy, it is ideal for both commercial and industrial applications. The motor is also highly resistant to shock and vibration, making it reliable for long-term use.
Jkongmotor's closed-loop stepper motor is designed to provide superior performance and durability. It is perfect for users who require reliable, precise, and efficient motion control. The motor is easy to install and use, making it suitable for both professional and amateur users. With its high torque and low power consumption, it is a cost-effective way to improve the performance of your motion control applications.
Are you looking for an optimal Closed Loop Stepper Motor for your application? Look no further, Jkongmotor has the right solution for you.
Our Closed Loop Stepper Motor is perfect for any application that requires high-accuracy and smooth motion. With features such as a model number of 86HSN120, a voltage of 24V, a step angle of 1.8°, an encoder resolution of 1000 Ppr, and a weight of 1.2kg, you can be sure that you are getting the highest quality Closed Loop Stepper Motor available.
We are committed to providing our customers with the highest quality Closed Loop Stepper Motor that is guaranteed to meet your expectations. So if you are looking for a Closed Loop Stepper Motor that is reliable and long-lasting, then Jkongmotor is the right choice for you.
We provide technical support and service for our Closed Loop Stepper Motor products. Our team of experts can answer any questions you may have regarding our products and help you find the right solution for your needs.
We can provide on-site installation and diagnostic services, if needed. We also provide troubleshooting and repairs, as well as replacement parts and accessories.
If you need help with setup, software, or any other issue, our team is available to answer your questions and assist you. We also offer training and educational resources to help you get the most out of your Closed Loop Stepper Motor.
If you have any questions or concerns regarding our Closed Loop Stepper Motor products, please don’t hesitate to contact us. We look forward to hearing from you.
Closed Loop Stepper Motor is shipped in an anti-static bag, and securely stored in a sturdy cardboard box. The box is sealed with packaging tape and includes the following items:
The package is then shipped via a reliable shipping company, with tracking information provided for customers' convenience.
