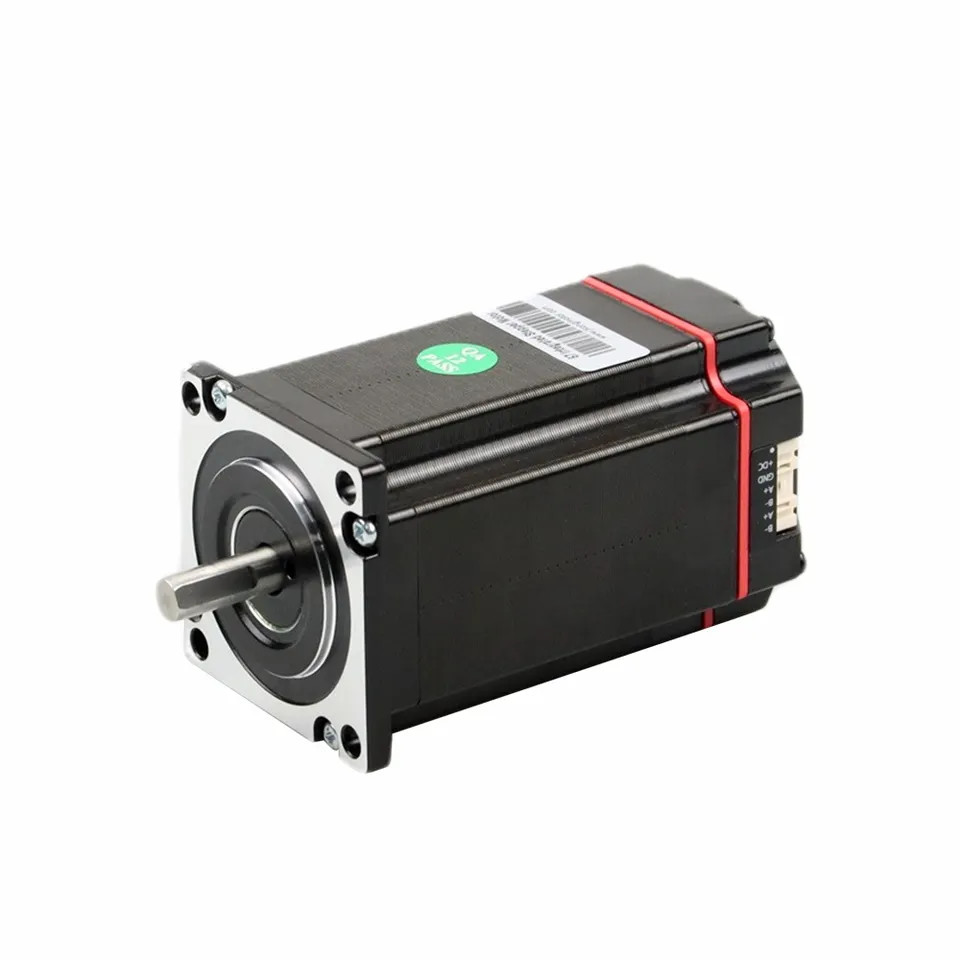

Nema17 RS485 0.48N.M 42mm Integrated Drive Stepper Motor CANopen

Nema17 RS485 0.48N.M 42mm Integrated Drive Stepper Motor CANopen

Nema17 RS485 0.48N.M 42mm Integrated Drive Stepper Motor CANopen
video
Nema17 RS485 0.48N.M 42mm Integrated Drive Stepper Motor CANopen
Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: JK
Certification: CE, ROHS,ISO9001
Model Number: ISM42 integrated stepper motor
Payment & Shipping Terms:
Minimum Order Quantity: 3-10pcs
Price: USD46-52.00
Packaging Details: with export carton . big quantity with pallet
Delivery Time: For samples , 7-15 days / For batch , 15-35days
Payment Terms: T/T, Western Union, paypal, L/C
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Name: Nema 17 23 Integrated Stepper Motor Model: Integrated Step Servo Motor
Motor Type: Integrated Stepper Motor Controller Driver Rated Voltage: 21v ~ 50v
Holding Torque: 0.48N.m ~ 3N.m Step Angle: 1.8 Degree Integrated Drive Stepper Motor
Current: 0.8A ~ 5.0A Shaft: 5mm D-cut Shaft
Support Control: RS485 / CANopen CiA402 Usage: JKM CANopen RS485 NEMA 17 23 Integrated Step Servo Motors Output 0.72NM With 1000Line Encoder Closed Loop Stepper System
High Light:

42mm Integrated Drive Stepper Motor

,

RS485 Drive Stepper Motor

,

CANopen Integrated Stepper Motor

Nema17 RS485 0.48N.m 42mm Integrated drive Stepper Motor CANopen

The ISM42 & ISM57 Integrate Stepper Servo Motor is merged the stepper servo driver and motor together. This motor system integrates the servo control technology into the digital stepper drive perfectly. And this product adopts an optical encoder with high speed position sampling feedback of 50 μ s, once theposition deviation appears, it will be fixed immediately. This product is compatible the advantages of the stepper drive and the servo drive, such as lower heat, less vibration, fast acceleration, and so on.

Customized Design: Customization accept, such as encoder, various gearbox, brake, or other parameters customer need.

Key Features:

  • Integrated compact size for saving mounting space
  • Without losing step, high accuracy in positioning
  • 100% rated output torque
  • Variable current control technology, high current efficiency
  • Small vibration, smooth and reliable moving at low speed
  • Accelerate and decelerate control inside, great improvement in smoothness of starting or stopping the motor
  • User-defined micro steps
  • No adjustment in general applications
  • Over current, over voltage and over position error protection
  • Green light means running while red light means protection or off line
Name
nema 17 23 integrated stepper motor
Model
integrated step servo motor
Motor Type
integrated stepper motor controller driver
Rated Voltage
21v ~ 50v
Holding Torque
0.48N.m ~ 3N.m
Step Angle
1.8 degree integrated drive stepper motor
Current
0.8A ~ 5.0A
Shaft
5mm D-cut Shaft
Support Control
RS485 / CANopen CiA402
Usage
JKM CANopen RS485 NEMA 17 23 Integrated Step Servo Motors Output 0.72NM with 1000Line Encoder Closed Loop Stepper System

Features of integrated easy servo stepper motor with controller driver:

  1. A new generation of 32-bit DSP technology.
  2. Support standard CANopen CiA402 protocol.
  3. 4-way input function terminal, 2-way output function terminal.
  4. The torque decay is reduced, and the speed can reach 3000rpm.
  5. Built-in alarm output for easy monitoring and control.
  6. Intelligently adjust current, reduce vibration, noise and heat, and increase efficiency by 35%.
  7. Voltage range: DC24~36V.
  8. 16 adjustable subdivisions, the default is 1000pulse/r.
  9. Excellent high speed and rigidity, perfect integration of servo and stepper.
  10. With overvoltage, undervoltage, overcurrent and other protection functions.
  11. Integrated design with drive motor. Easy installation, small footprint and simple wiring.

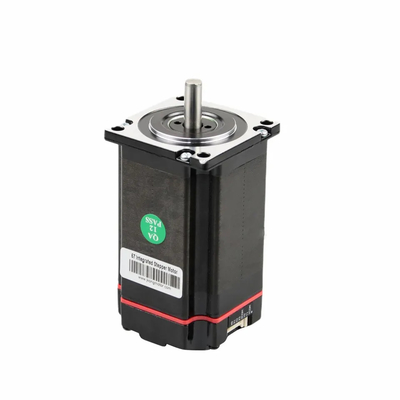

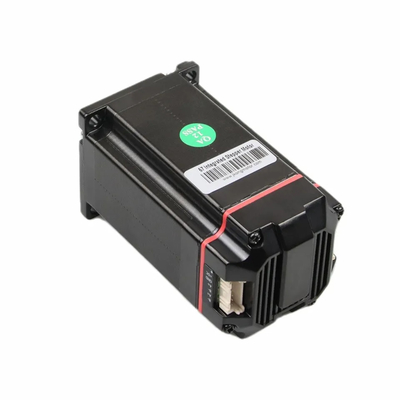

Nema17 RS485 0.48N.M 42mm Integrated Drive Stepper Motor CANopen 0Nema17 RS485 0.48N.M 42mm Integrated Drive Stepper Motor CANopen 1

Application of integrated servo stepper motor:

Printing, AOI, panel bonding, transfer equipment, etc. in PCB related equipment; camera related equipment such as camera and fingerprint; solid crystal machine, wire bonding machine, dispensing machine, beam splitter, and package tape machine in packaging.
Nema17 RS485 0.48N.M 42mm Integrated Drive Stepper Motor CANopen 2
Specification
ISM42-C Series
Unit
Minimum
Typical
Maximum
Output current
A
0.8~2.0
-
2
Input voltage
Vdc
24
24
36
Rated input current
mA
10
10
50
Rated input voltage
V
-
24
24
Pulse frequency
kHz
0
-
200
Insulation resistance
MΩ
100
-
-
Above only for representative products, products of special request can be made according to the customer request.
Techical Data
Name
Unit
ISM42-C1
ISM42-C2
phase
Phase
2
2
Rated Voltage
V(DC)
21~36
24 ~ 36
Output Current
A
0.8~2.0
0.8~2.0
Holding Torque
N.m
0.48
0.72
Motor Length
mm
47
60
Weight
Kg
0.5
0.65
Insulation Grade
-
B
B
Operating Temperature
℃
0~55
0~55
Above only for representative products, products of special request can be made according to the customer request.
Terminal Description
Pin
Function
Note
PWR
Power indicator
Power on indicator
ALM
Alarm indicator
Alarm fishing indicator
X0-X3
4 input terminal
Input/Output terminal, signal power supply 24V, support NPN and PNP two wiring modes, support terminal function software
modification
XCOM
Input common
Y0-Y1
2 output terminal
YCOM
Output common
CANH
Communication terminal
CANH communication cable
CANL
Communication terminal
CANL communication cable
+DC
Power input positive terminal
DC24~36V
GND
Power input negative terminal
Above only for representative products, products of special request can be made according to the customer request.
Input / Output terminal:
Pin
Name
Function
X0
Input terminal
Input/Output terminal, signal power supply 24V, support NPN and PNP two wiring modes, support terminal function software
modification
X1
X2
X3
XCOM
Common input terminal
Y0
Output terminal
Output terminal, the maximum driving current is 50mA, support terminal function software modificatio
Y1
YCOM
Common output terminal
DIP switch settings:
Pin
Sign
Function
1
SW1
SW1: Terminal resistance
2
SW2
SW2-5: Address setting
3
SW3
4
SW4
5
SW5
Power port setting:
Pin
Name
Function
CANL
Communication port
CANL CANH Communication line
CANH
CGND
Communication address
CAN Communication line
NC


GND
Power port
DC: 24V~ 36V
+DC

Nema17 RS485 0.48N.M 42mm Integrated Drive Stepper Motor CANopen 3

Nema17 RS485 0.48N.M 42mm Integrated Drive Stepper Motor CANopen 4

Nema17 RS485 0.48N.M 42mm Integrated Drive Stepper Motor CANopen 5
