Nema23 Cnc Stepper Motor Kit 57hs112 4-Lead 2.8nm 3nm 57bygh Stepping Motor For 3d Printer

Nema23 Cnc Stepper Motor Kit 57hs112 4-Lead 2.8nm 3nm 57bygh Stepping Motor For 3d Printer

  • Nema23 Cnc Stepper Motor Kit 57hs112 4-Lead 2.8nm 3nm 57bygh Stepping Motor For 3d Printer
  • Nema23 Cnc Stepper Motor Kit 57hs112 4-Lead 2.8nm 3nm 57bygh Stepping Motor For 3d Printer
  • Nema23 Cnc Stepper Motor Kit 57hs112 4-Lead 2.8nm 3nm 57bygh Stepping Motor For 3d Printer
  • Nema23 Cnc Stepper Motor Kit 57hs112 4-Lead 2.8nm 3nm 57bygh Stepping Motor For 3d Printer
Nema23 Cnc Stepper Motor Kit 57hs112 4-Lead 2.8nm 3nm 57bygh Stepping Motor For 3d Printer
Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jkongmotor
Certification: CE, ROHS,ISO9001
Model Number: JK86HSN
Payment & Shipping Terms:
Minimum Order Quantity: 3-10pcs
Price: US$200~US$320
Packaging Details: with export carton . big quantity with pallet
Delivery Time: For samples , 7-15 days / For batch , 15-25days
Payment Terms: T/T , paypal , Western Union, L/C
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Model Number: Nema 34 Closed Loop Stepper Motor Kits Phase: 2
Current: 6.0A Holding Torque: 4.6N.m - 13N.m
Resistance: 0.27Ω - 0.44Ω Inductance: 2mH - 3.8mH
Detent Torque: 1.2kg.cm - 3.6kg.cm Warranty: 12 Months
Place Of Origin: China Number Of Leads: 4
Key Words: 3axis 4axis Stepper Motor Kits
High Light:

Monitor Equipment Cnc Stepper Motor Kits

,

Cnc Stepper Motor Kit With Driver Dm542

,

2.8nm Nema 34 Closed Loop Stepper Motor

Nema34 4.6N.m - 13N.m Closed Loop Stepper Motor with Driver Kit & power supply



Genaral Specification of closed loop stepper motor:



 Item  Specifications
 Step Angle  1.8°
 Temperature Rise  80℃max
 Ambient Temperature  -20℃~+50℃
 Insulation Resistance  100 MΩ Min. ,500VDC
 Dielectric Strength  820VAC for 1minute
 Shaft Radial Play  0.02Max. (450g-load)
 Shaft Axial Play  0.08Max. (450g-load)
 Max. radial force  220N (20mm from the flange)
 Max. axial force  60N




Electrical Specification of nema 34 closed loop stepper motor:



Model No. Step Angle Motor Length

Current

/Phase

Resistance

/Phase

Inductance

/Phase

Holding Torque # of Leads Detent Torque Rotor Inertia
  ( °) (L)mm A Ω mH N.m No. Kg.cm g.cm²
JK86HSN45 1.8 78 6 0.27 2 4.6 4 1.2 1400
JK86HSN65 1.8 100 6 0.27 2.2 6.8 4 1.9 2200
JK86HSN85 1.8 115 6 0.36 3.8 8.5 4 2.4 2700
JK86HSN120 1.8 155 6 0.44 3.8 12.5 4 3.6 4000
Above only for representative products, products of special request can be made according to the customer request.

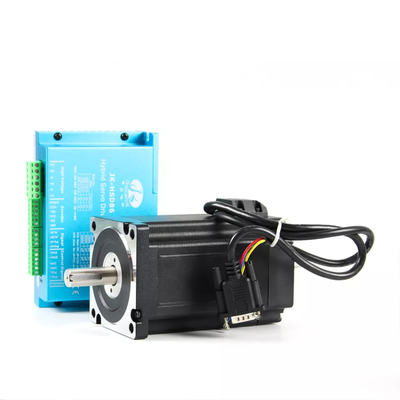

closed loop Stepper motor Driver: JK-HSD86


Parameter Min Typical Max Unit
Input Voltage (JK-HSD86) 20 36 48 50 VDC
Input Voltage (JK-HSD86C) 24 36 48 80 VDC
Input Voltage (SC8680C) 24VAC 60AC 80VAC 100VDC VVDC
Output Current 0.1 - 10(Peak) A
Pulse Input Frequency 0 - 200 kHz
Logic Signal Current 7 10 16 mA
Isolation Resistance 500 - -



Suitable Power Supply Parameters:

Power Supply Model Input voltage Ouput voltage Power Weight Size
S-300-48 AC110V/220V DC48V 300W 0.7kg 215*115*50mm
S-1000-48 AC110V/220V DC48V 1000W 1.5kg 245*245*65mm
S-360-60 AC110V/220V DC60V 360W 0.7kg 215*115*50mm
S-1200-60 AC110V/220V DC60V 1200W 1.5kg 245*245*65mm





Power Supply Features:

This series of products has strong versatility and can be applied to various types of products such as lamps, monitoring, security, communication equipment, etc.



You may receive:

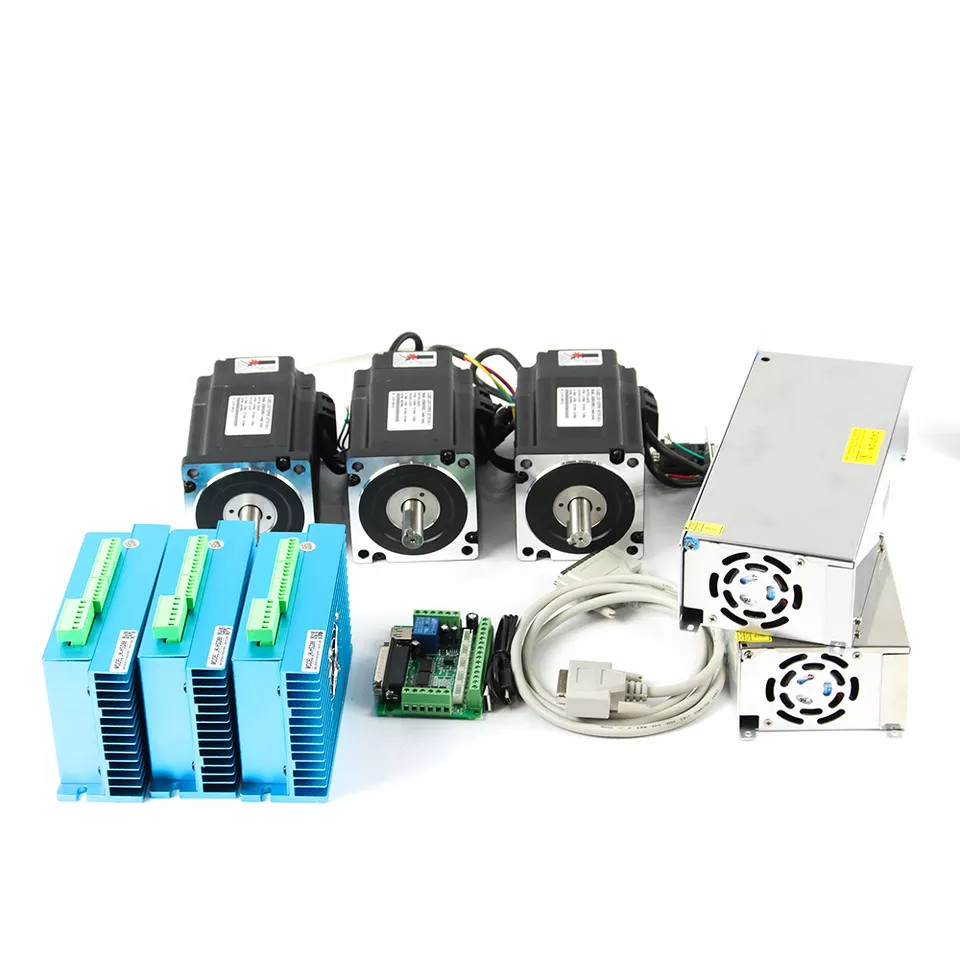

1. 3Pcs Nema 34 Closed Loop Stepper Motor + 3Pcs Power Supply + 3PCS JK-HSD86 Driver + other parts
2. 3Pcs Nema 34 Closed Loop Stepper Motor + 1Pcs Power Supply + 3PCS JK-HSD86 Driver + other parts



No. Output Voltage Motor Quantity Supply Quantity Driver Other
1 48V 3pcs closed loop motor 3pcs ——300W 3pcs —— JK-HSD86 board + cable + usb
2 48V 3pcs closed loop motor 1pcs ——1000W 3pcs —— JK-HSD86
3 60V 3pcs closed loop motor 3pcs ——360W 3pcs —— JK-HSD86
4 60V 3pcs closed loop motor 1pcs ——1200W 3pcs —— JK-HSD86



closed loop stepper motor Drawing:

Nema23 Cnc Stepper Motor Kit 57hs112 4-Lead 2.8nm 3nm 57bygh Stepping Motor For 3d Printer 0



Nema23 Cnc Stepper Motor Kit 57hs112 4-Lead 2.8nm 3nm 57bygh Stepping Motor For 3d Printer 1

Nema23 Cnc Stepper Motor Kit 57hs112 4-Lead 2.8nm 3nm 57bygh Stepping Motor For 3d Printer 2





Details of product:

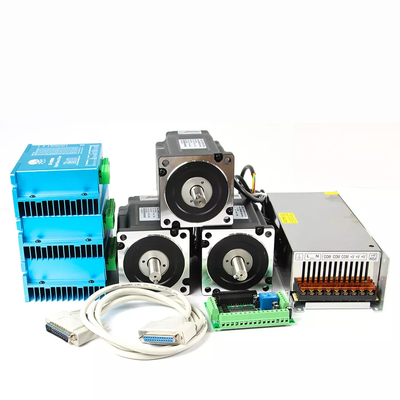

One set includes stepper motor and stepper driver with board + cable + usb with power supply
