Place of Origin: | CHINA |
Brand Name: | Jkongmotor |
Certification: | CE, ROHS, ISO |
Model Number: | JK86HSN120 |
Minimum Order Quantity: | 3-10pcs |
---|---|
Price: | 80-90 |
Packaging Details: | carton |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 5000PCS/month |
Phase: | 2 Phase | Current/Phase: | 6A |
---|---|---|---|
Step Angle: | 1.8° | Induction: | 3.8mH |
Motor Length: | 155MM | Rated Torque: | 12N.m |
Weight: | 6.5KGS | ||
High Light: | 12.5N.m Nema 34 Closed Loop Stepper,2 Phase Closed Loop Stepper Motor Nema 34,Nema 34 Closed Loop Stepper High Torque |

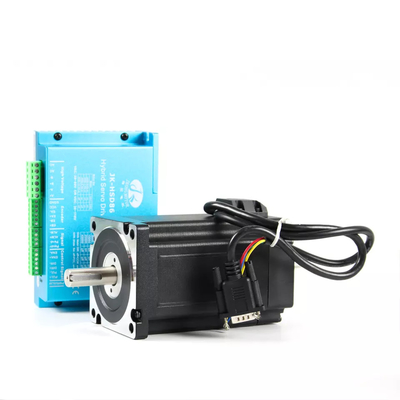

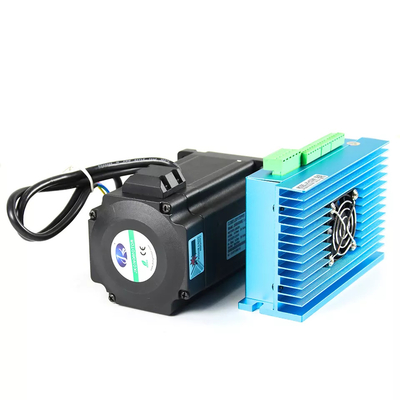

12.5N.m High Torque NEMA 34 Closed Loop Stepper Motor 4 Axis CNC Kit
1. Detailed Parameters:
2. Suitable Power Supply Parameters
Power supply features:
This series of products has strong versatility and can be applied to various types of products such as lamps, monitoring, security, communication equipment, etc.
You may receive:

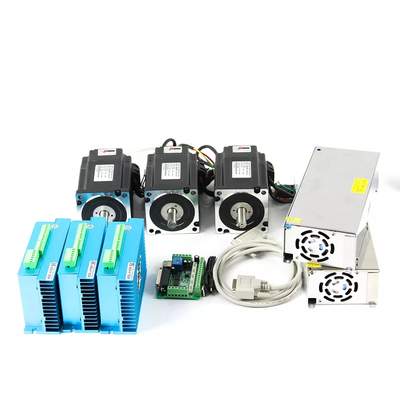

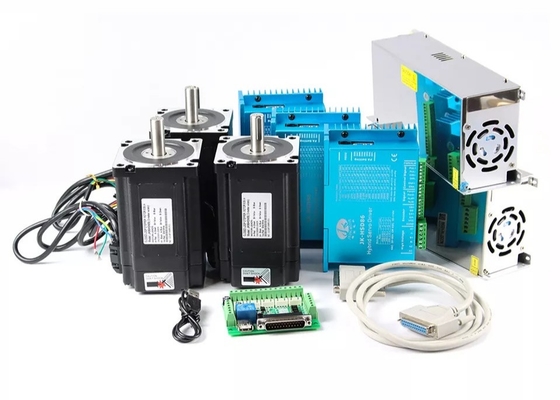

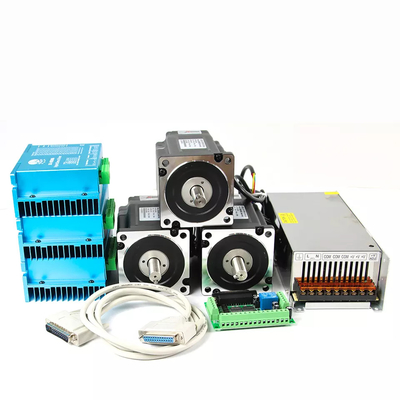

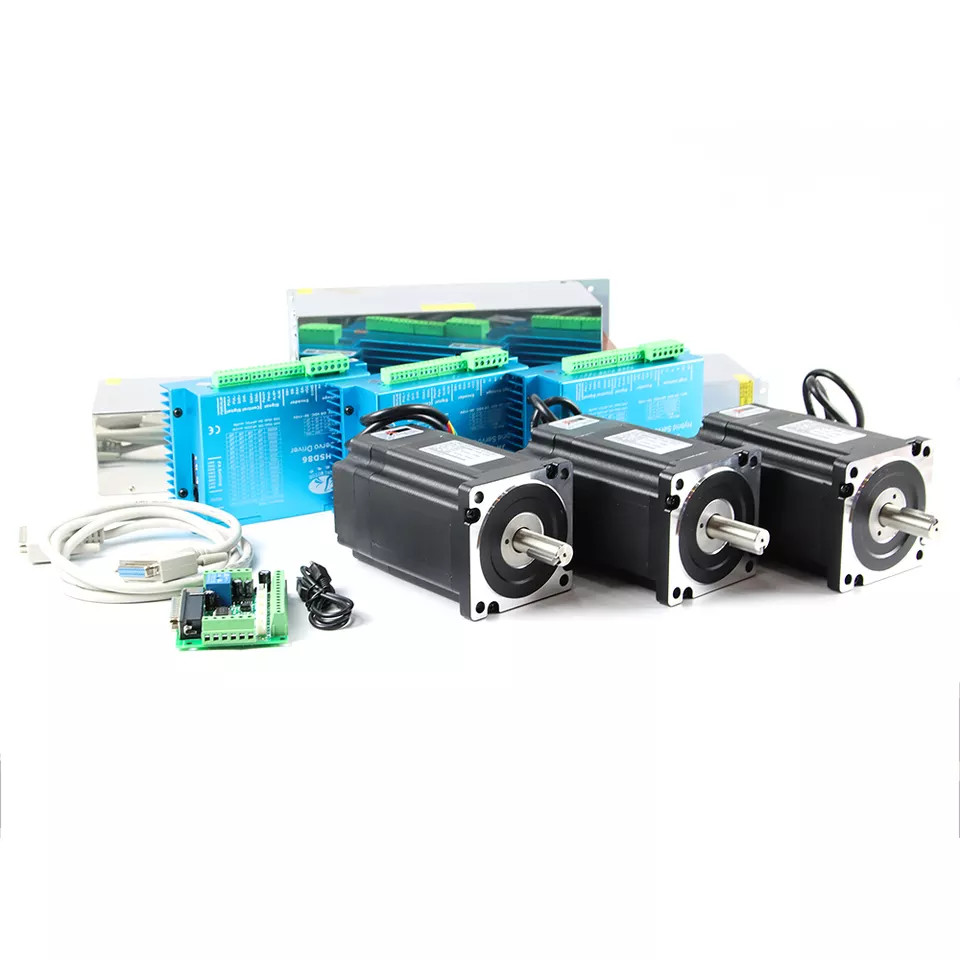

1. 3Pcs Nema 34 Closed Loop Stepper Motor + 3Pcs Power Supply + 3PCS JK-HSD86 Driver + other parts
3. Motor features:
1. Low heat (static, the current is almost zero, no heat).
2.Smoothing (based on the feedback vector space vector current control algorithm and vector smoothing filtering technology, the
traditional stepping motor troubled low frequency resonance has a very good resistance).
3. Applicable industry: dispenser / woodworking machine / welding machine / screw machine / zipper machine / winding machine /
placement machine / packaging machine / engraving machine / laser machine / LED / electronic equipment.
4. Large torque output in some cases can simplify the complexity of the machine.
4. Application:
JKONGMOTOR’s stepper motors are widely used in engraving machine, cutting plotter, textile machine, 3D printer, medical
devices,stage lighting equipment, robot, CNC machine, music fountain and other industrial automatic equipment.
5. The characteristic of the output torque:
1) The larger the actual current of the motor, the greater the output torque, but the more copper loss (P=I²R) of the motor, the more heat the motor generates;
