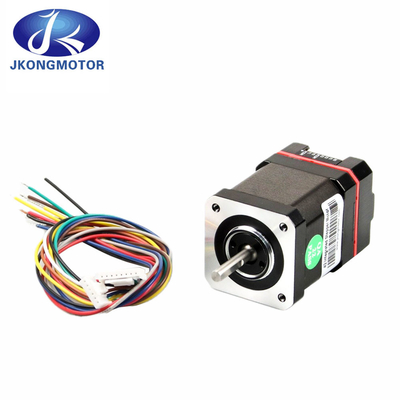

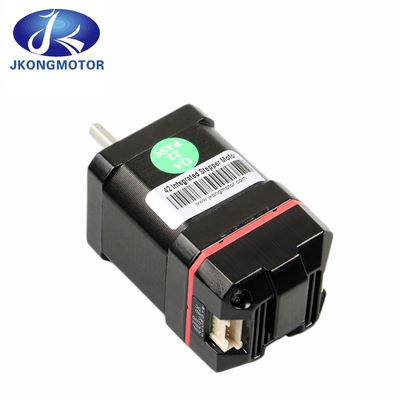

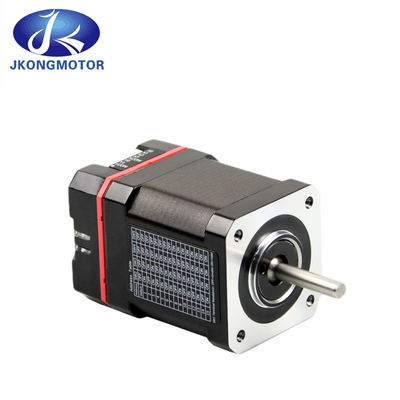

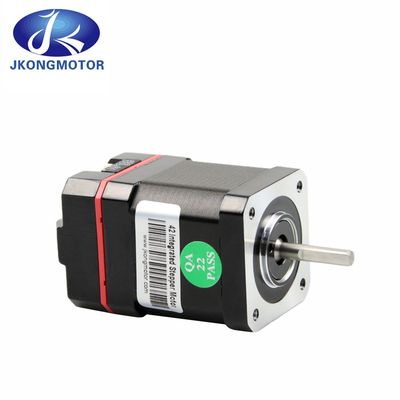

CANopen RS485 Nema 17 1000PPR Encoder Integrated Step Servo Motor 0.48N.M / 0.72N.M 21-36VDC

CANopen RS485 Nema 17 1000PPR Encoder Integrated Step Servo Motor 0.48N.M / 0.72N.M 21-36VDC

  • CANopen RS485 Nema 17 1000PPR Encoder Integrated Step Servo Motor 0.48N.M / 0.72N.M 21-36VDC
  • CANopen RS485 Nema 17 1000PPR Encoder Integrated Step Servo Motor 0.48N.M / 0.72N.M 21-36VDC
  • CANopen RS485 Nema 17 1000PPR Encoder Integrated Step Servo Motor 0.48N.M / 0.72N.M 21-36VDC
  • CANopen RS485 Nema 17 1000PPR Encoder Integrated Step Servo Motor 0.48N.M / 0.72N.M 21-36VDC
  • CANopen RS485 Nema 17 1000PPR Encoder Integrated Step Servo Motor 0.48N.M / 0.72N.M 21-36VDC
  • CANopen RS485 Nema 17 1000PPR Encoder Integrated Step Servo Motor 0.48N.M / 0.72N.M 21-36VDC
  • CANopen RS485 Nema 17 1000PPR Encoder Integrated Step Servo Motor 0.48N.M / 0.72N.M 21-36VDC
  • CANopen RS485 Nema 17 1000PPR Encoder Integrated Step Servo Motor 0.48N.M / 0.72N.M 21-36VDC
  • CANopen RS485 Nema 17 1000PPR Encoder Integrated Step Servo Motor 0.48N.M / 0.72N.M 21-36VDC
  • CANopen RS485 Nema 17 1000PPR Encoder Integrated Step Servo Motor 0.48N.M / 0.72N.M 21-36VDC
CANopen RS485 Nema 17 1000PPR Encoder Integrated Step Servo Motor 0.48N.M / 0.72N.M 21-36VDC
Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jkongmotor
Certification: CE, Rohs, ISO,Reach...
Model Number: Integrated Step Servo Motor
Payment & Shipping Terms:
Minimum Order Quantity: 3-10pcs

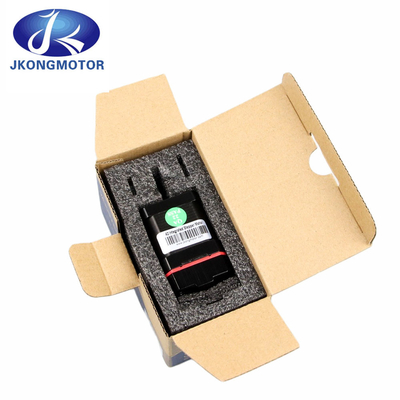

Packaging Details: sample with export carton . big quantity with pallet
Delivery Time: For samples , 7-15 days / For batch , 15-25days
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Name: Integrated Step Servo Motor Motor Type: Nema 17 Integrated Stepper Motor
Model Name: Integrated Stepper Motor For Cnc Step Angle: 1.8 Degree Stepping Motor
Size: Nema 17 42x42mm Current: 2.0A
Holding Torque: 0.48N.m / 0.72N.m Body Length: 47mm / 60mm
Flange Size: 42x42mm Usage: Stepper Motor Are Widely Applied In 3D Printer, Mini Cnc Router, Engraving Machine, Textile Machine, Packing Machine, Medical Insturment, Stage Light Equipment, Robotic Arm, CNC Router, Music Fountain, And Other Industrial Automatic System.
High Light:

42x42mm Integrated Step Servo Motor

,

1000PPR Integrated Stepper Motor Driver

,

2.0A Integrated Stepper Motor For Cnc

CANopen RS485 42x42mm Nema 17 1000PPR Encoder Integrated Step Servo Motor 0.48N.M / 0.72N.M 21-36VDC

The STM is a drive + motor + control unit, fusing step motor, drive, and controller technologies into a single device, offering savings on space, wiring and cost over conventional motor and drive solutions. The "S" models offer control options such as step and direction, analog input, joystick control, and host commands using the Si Command Language (SCL). SCL allows for control via serial commands sent from a host device such as a PC or PLC. This permits the user to perform a variety of motion, I/O, and system status tasks in real time via a host serial device.



The modern design incorporates closed-loop operation - providing higher torque, faster acceleration, torque control, stall free operation and quieter movements than traditional stepper motor systems.


JKONGMOTOR has higher efficiency and runs cooler because motor phase currents are regulated up and down according to need. Performance of closed-loop steppers are similar to servo motors, but with higher torque and often without the need of a gearbox, resulting in cost savings.
Design safety factors have always been high for stepper motors to ensure stall-free operation – now with JKONGMOTOR closed-loop the motors can be operated very close to the limit resulting in even lower costs and more compact designs.



1. 42mm Hybrid Nema 17 Integrated Stepper Motor Genaral Specification:

Name Integrated Step Servo Motor
Model Nema 17 Integrated Stepper Motor
Motor Type Integrated stepper motor for cnc
Rated Voltage 21v ~ 36v
Holding Torque 0.48N.m
Step Angle 1.8 degree stepping motor
Current 0.8A ~ 2.0A
Shaft 5mm D-cut Shaft
Support Control CANopen CiA402
Usage Printing, AOI, panel bonding, transfer equipment, etc. in PCB related equipment; camera related equipment such as camera and fingerprint; solid crystal machine, wire bonding machine, dispensing machine, beam splitter, and package tape machine in packaging



2,Features of integrated easy servo stepper motor with controller driver:

1): A new generation of 32-bit DSP technology.

2): Support standard CANopen CiA402 protocol.

3): 4-way input function terminal, 2-way output function terminal.

4): The torque decay is reduced, and the speed can reach 3000rpm.

5): Built-in alarm output for easy monitoring and control.

6): Intelligently adjust current, reduce vibration, noise and heat, and increase efficiency by 35%.

7): Voltage range: DC24~36V.

8): 16 adjustable subdivisions, the default is 1000pulse/r.

9): Excellent high speed and rigidity, perfect integration of servo and stepper.

10): With overvoltage, undervoltage, overcurrent and other protection functions.

11): Integrated design with drive motor. Easy installation, small footprint and simple wiring.



Changzhou Jkongmotor Co., Ltd was a high technology industry zone in changzhou, china. Our products used in many kinds of machines, such as 3d printer CNC machine, medical equipment, weaving printing equipments and so on.

JKONGMOTOR warmly welcome 'OEM' & 'ODM' cooperations and other companies to establish long-term cooperation with us.
Company spirit of sincere and good reputation, won the recognition and support of the broad masses of customers, at the same time with the domestic and foreign suppliers close community of interests, the company entered the stage of stage of benign development, laying a solid foundation for the strategic goal of realizing only really the sustainable development of the company.



3,Application of integrated servo stepper motor:

Printing, AOI, panel bonding, transfer equipment, etc. in PCB related equipment; camera related equipment such as camera and fingerprint; solid crystal machine, wire bonding machine, dispensing machine, beam splitter, and package tape machine in packaging.



4,General Specification of integrated step servo motor:

Specification ISM42-C Series
Unit Minimum Typical Maximum
Output current A 0.8~2.0 - 2
Input voltage Vdc 24 24 36
Rated input current mA 10 10 50
Rated input voltage V - 24 24
Pulse frequency kHz 0 - 200
Insulation resistance 100 - -

5,Techical Data:

Techical Data
Name Unit ISM42-C1 ISM42-C2
phase Phase 2 2
Rated Voltage V(DC) 21~36 24~36
Output Current A 0.8~2.0 0.8~2.0
Holding Torque N.m 0.48 0.72
Motor Length mm 47 60
Weight Kg 0.5 0.65
Insulation Grade - B B
Operating Temperature 0~55 0~55

6,Terminal Description:

Terminal Description
Pin Function Note Interface Schematic
PWR Power indicator Power on indicator integrated stepper motor
ALM Alarm indicator Alarm fishing indicator
X0-X3 4 input terminal Input/Output terminal, signal power supply 24V, support NPN and PNP two wiring modes, support terminal function software modification
XCOM Input common
Y0-Y1 2 output terminal
YCOM Output common
CANH Communication terminal CANH communication cable
CANL Communication terminal CANL communication cable
+DC Power input positive terminal DC24~36V
GND Power input negative terminal

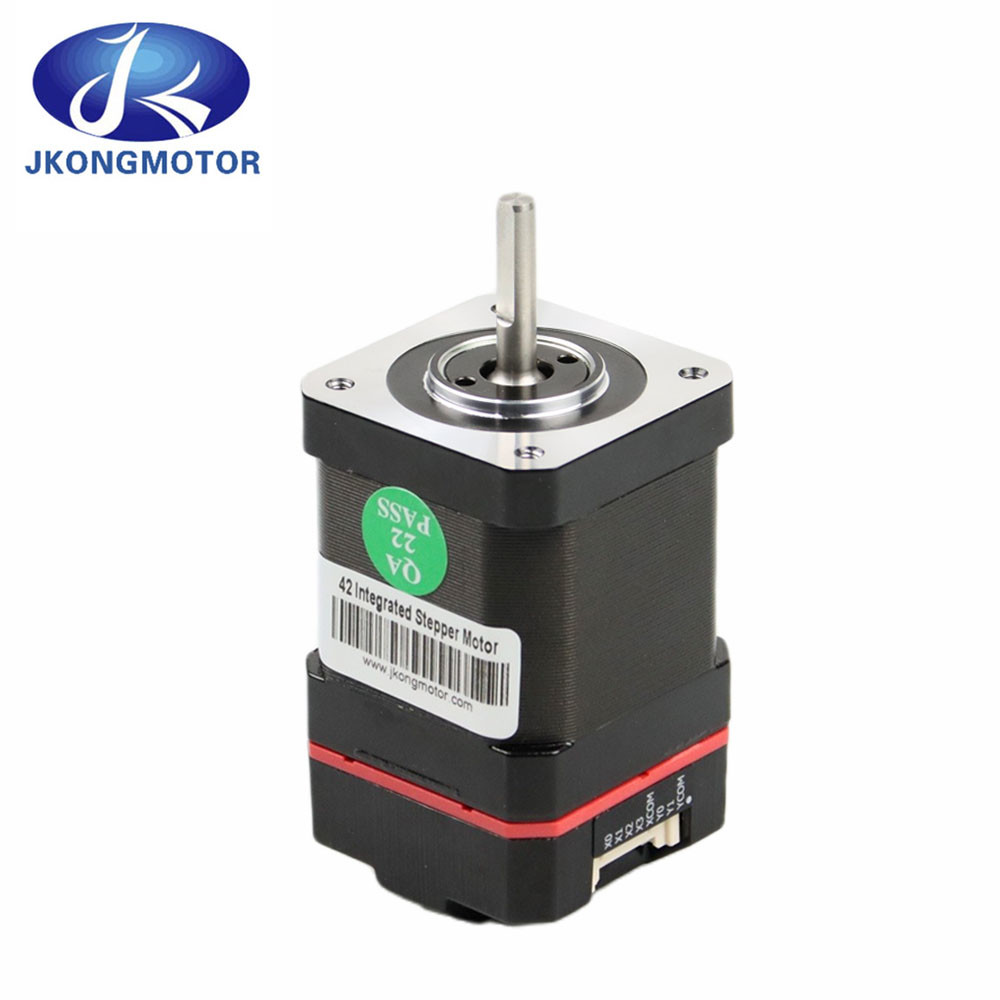

7,Input / Output terminal:

Input / Output terminal:
Pin Name Function
X0 Input terminal Input/Output terminal, signal power supply 24V, support NPN and PNP two wiring modes, support terminal function software modification
X1
X2
X3
XCOM Common input terminal
Y0 Output terminal Output terminal, the maximum driving current is 50mA, support terminal function software modificatio
Y1
YCOM Common output terminal

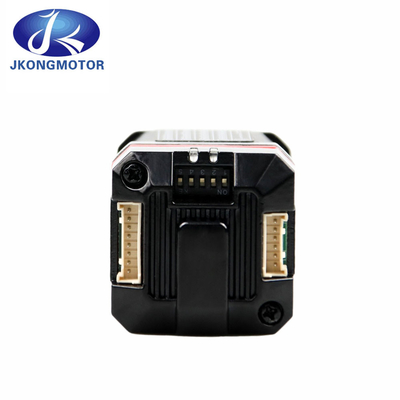

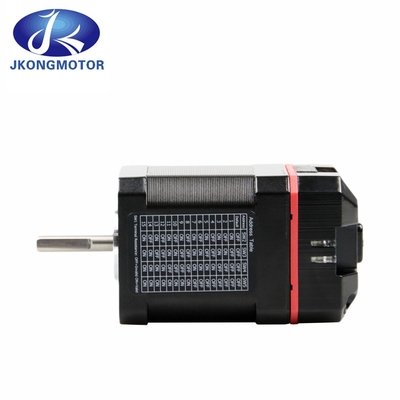

8,DIP switch settings:

DIP switch settings:
Pin Sign Function
1 SW1 SW1: Terminal resistance
2 SW2 SW2-5: Address setting
3 SW3
4 SW4
5 SW5

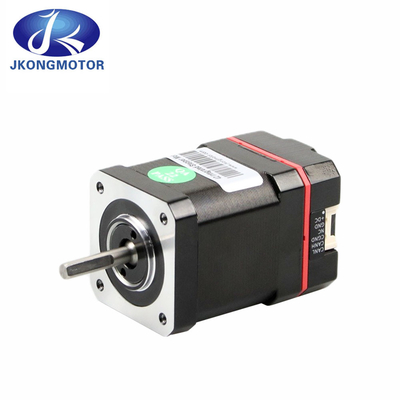

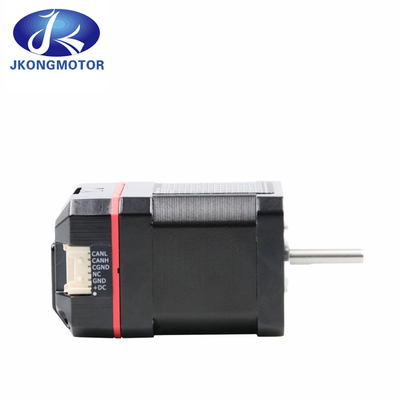

9,Power port setting:

Power port setting:
Pin Name Function
CANL Communication port CANL CANH Communication line
CANH
CGND Communication address CAN Communication line
NC
GND Power port DC: 24V~ 36V
+DC



10,Alarm release:

Alarm release:
Error code Error information ALM warning light Resetting
Err1: (0x01) Overcurrent or phase-to-phase short circuit integrated stepper motor controller driver Power-down reset
Err2: (0x02) Power supply voltage is too high integrated stepper motor driver Lock/Auto reset
Err3: (0x03) Power supply voltage is too low jvl integrated stepper motor Lock/Auto reset
Err5: (0x05) Out of torlance  integrated drive stepper motor Power-down reset

11,Use environment:

Use environment:
Cooling method Heat sink cooling
Use environment: Use environment Keep away from other heating equipment as far as possible, avoid dust, oil mist, corrosive gas, strong vibration places, prohibit flammable gas and conductive dust
Temperature 0℃ ~ 50℃
Humidity 40 ~ 90 %RH (no condensation)
Shock 10 ~ 55Hz/0.15mm
Storage temperature -20℃ ~ +80℃

12,Product Dimensions: (Unit=mm)



integrated stepper motor

13,Customized Design:

If this motor do not match with your request. Please feel free to contact with us,We can make customized shaft / winding / mounting flange / cable / connector / Encoder / Brake / Gearbox and others. We will works side-by-side with you and your team to design a motor that will fit the precise needs of your application. All Engineering and Support is done in-house.

STM integrated steppers

14,Customized Shaft Types:

STM integrated steppers

STM-R Integrated Steppers
