| Place of Origin: | Jiangsu, China |
| Brand Name: | Jkongmotor |
| Certification: | CE, ROHS,ISO9001 |
| Model Number: | JK110BLS02 |
| Minimum Order Quantity: | 3-10pcs |
|---|---|
| Price: | US$121.38~US$138.70 |
| Packaging Details: | with export carton . big quantity with pallet |
| Delivery Time: | For samples , 7-15 days / For batch , 15-25days |
| Payment Terms: | T/T , paypal , Western Union, L/C, |
| Supply Ability: | 100000pcs/month |
| Name: | Brushless Dc Motor | Voltage: | 310V |
|---|---|---|---|
| Frame Size: | 110*110mm | Rated Power:: | 1570 W |
| Rated Current:: | 5.6 A | Rated Torque:: | 5 Nm |
| Peak Current: | 15 Nm | Certification: | CE,ROHS,ISO |
| Model Number: | JK110BLS03 | High Light:: | 3000rpm Brushless Dc Motor 86mm, Brushless Dc Motor 86mm 4.2NM, 48v 400w Bldc Motor |
| Rated Speed:: | 3000rmp | Body Length:: | 143mm |
| High Light: | 3 Phase 1570W BLDC MOTOR,3000RPM Dc Brushless Electric Motor,110mm 3 Phase Brushless Dc Motor |
||

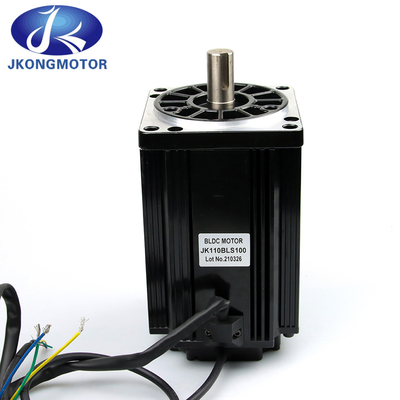

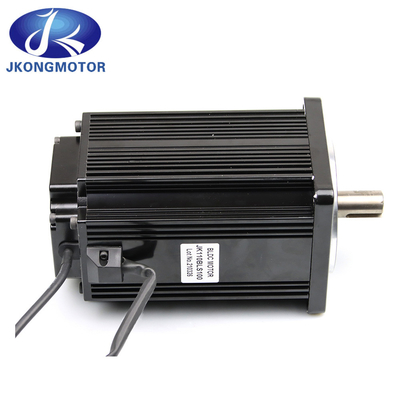

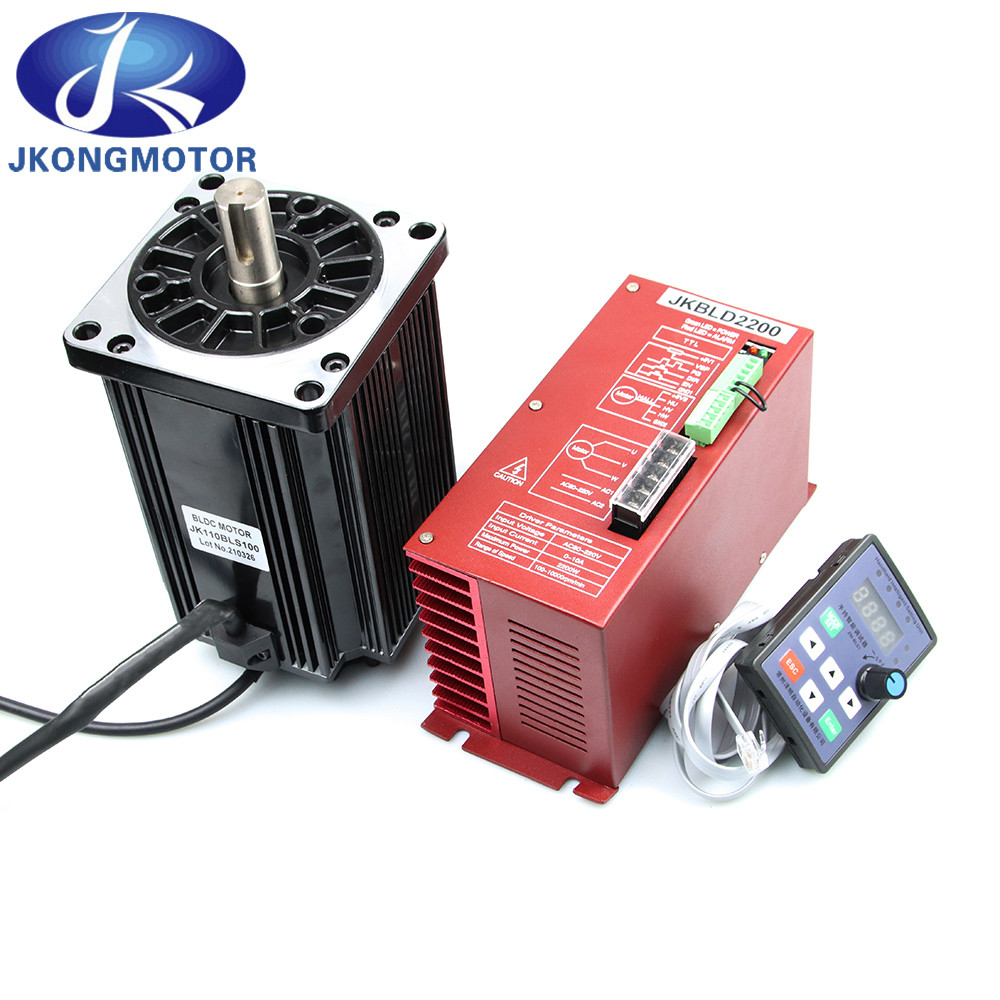

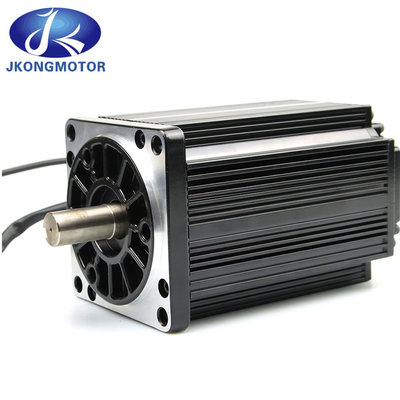

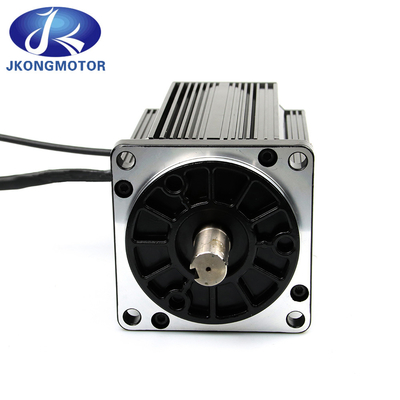

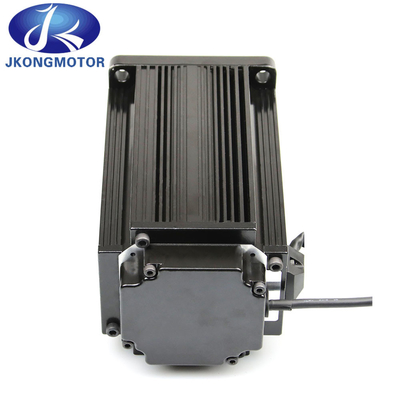

310VDC 220VAC 110mm Dc Brushless Electric Motorcycle Motor 3000RPM 1570W
Specification:
Brushless dc motor features:
High speed
Long using life
Low cost
Low interference
High efficiency
Low noise
Energy Saving
We are a comprehensive company which specializes in producing and researching stepper motor and motor driver, closed loop stepper motor, step servo motor, brushless dc motor, brushless dc driver, spindle motor.
Our company is located in Changzhou city, Jiangsu province, China. We have an excellent group with rich experience in manufacturing and researching. We can solve the actual using problems for customers. Our products are highly commended by customers because of its easy operation, long using life, stable performance, low failure rate and high technical content.
Applications:
Brushless dc motor are widely used in textile machine, medical equipment, CNC, industrial automation, laboratory instrument, packing machine, drone etc.
Electrical Specification:
Electrical Connection:
| Lead No. | Lead color | Lead gauge | Function | Description | ||||
| 1 | Red | UL3266/28AWG | VCC+5VDC | SUPPLY VOLTAGE FOR HALL SENSORS | ||||
| 2 | Black | GND | GROUND FOR HALL SENSORS | |||||
| 3 | Yellow | HALL A | SIGNAL OF HALL A | |||||
| 4 | Green | HALL B | SIGNAL OF HALL B | |||||
| 5 | Blue | UL3266/22AWG | HALL C | SIGNAL OF HALL C | ||||
| 1 | Yellow | PHASE U | MOTOR PHASE U | |||||
| 2 | Green | PHASE V | MOTOR PHASE V | |||||
| 3 | Blue | PHASE W | MOTOR PHASE W | |||||
Diagram:
Brushless dc motor features:
High speed
Long using life
Low cost
Low interference
High efficiency
Low noise
Energy Saving
