| Place of Origin: | Jiangsu, China |
| Brand Name: | Jkongmotor |
| Certification: | CE, ROHS,ISO9001 |
| Model Number: | JK86BLS98 |
| Minimum Order Quantity: | 3-10pcs |
|---|---|
| Price: | US$38.93~US$47.91 |
| Packaging Details: | with export carton . big quantity with pallet |
| Delivery Time: | For samples , 7-15 days / For batch , 15-25days |
| Payment Terms: | T/T , paypal , Western Union, L/C, |
| Supply Ability: | 100000pcs/month |
| Name: | 86mm Electric Brushless Motor With Hall Sensor | Voltage: | 24V/36V/48V |
|---|---|---|---|
| Power: | 110w/220w/330w/440w/660w | Speed: | 3000rpm/4000rpm/5000rpm/6000rmp |
| Sensor: | Honeywell | Spare: | Brushless Dc Motor Controller/driver |
| Brand Name: | JK | Certification: | CE,ROHS,ISO |
| Model Number: | JK86BLS98 | High Light:: | 3000rpm Brushless Dc Motor 86mm, Brushless Dc Motor 86mm 4.2NM, 48v 400w Bldc Motor |
| High Light: | JK86BLS98 Brushless DC Motor,IP40 Industrial Brushless Dc Motor,3000rpm 48 Volt Brushless Dc Motor |
||

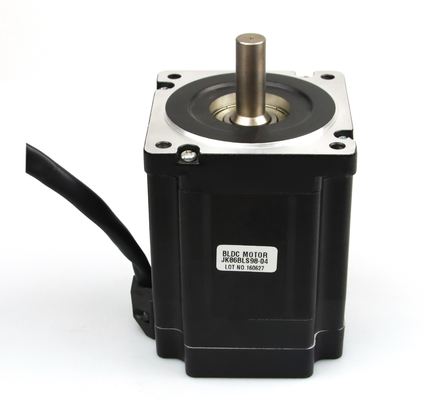

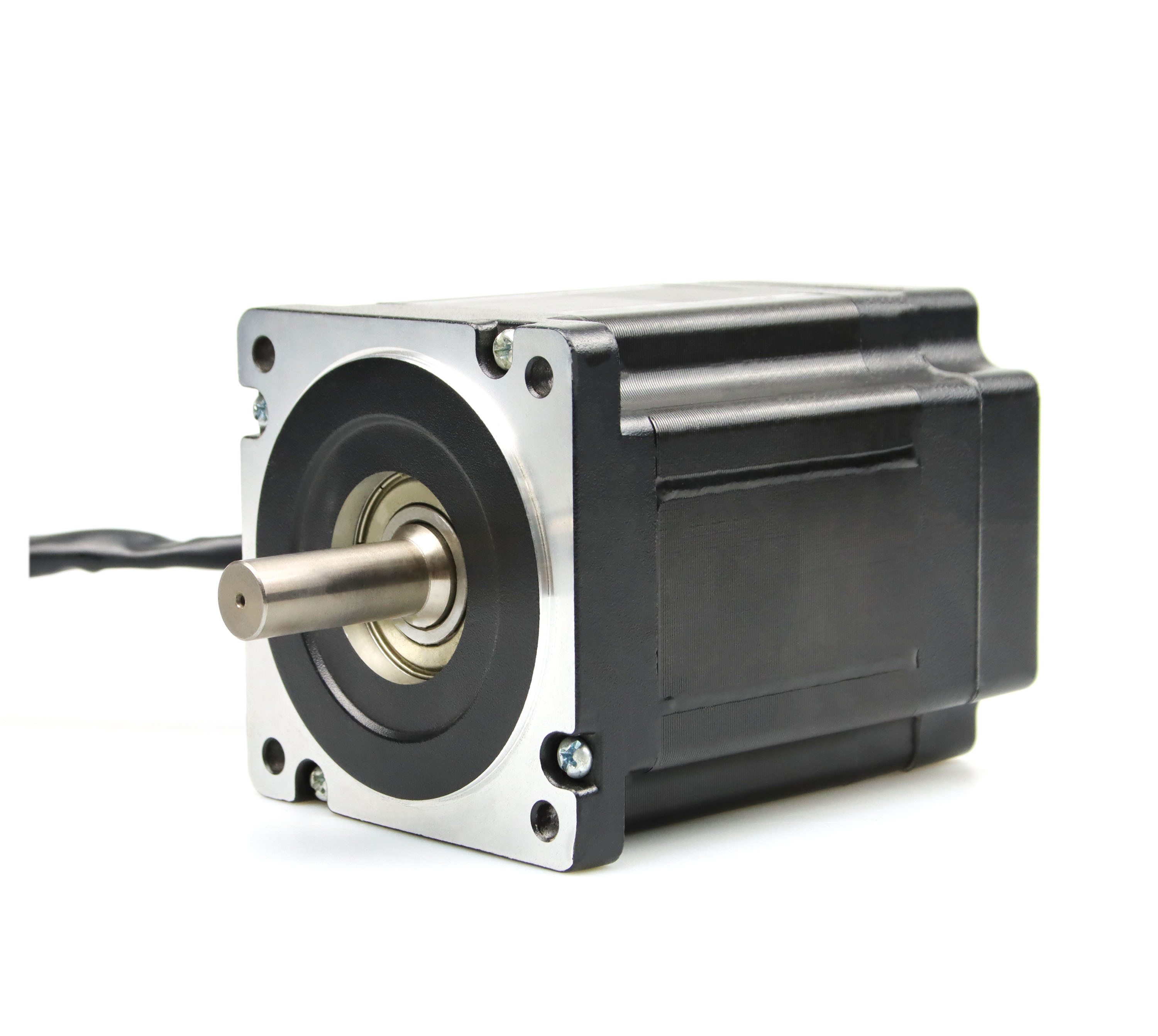

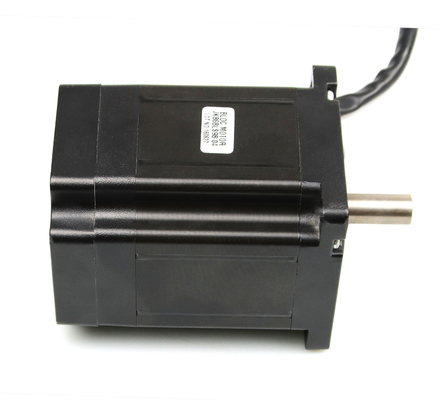

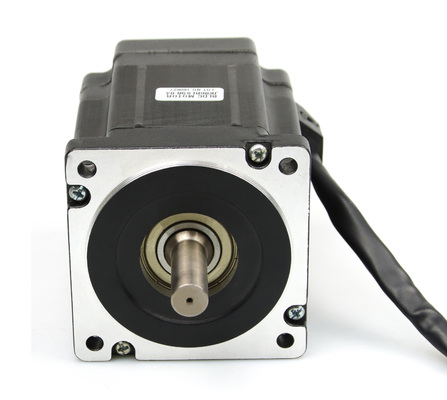

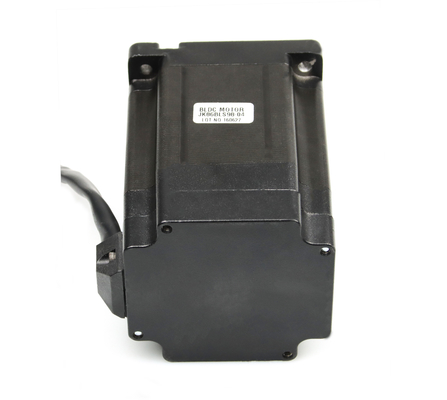

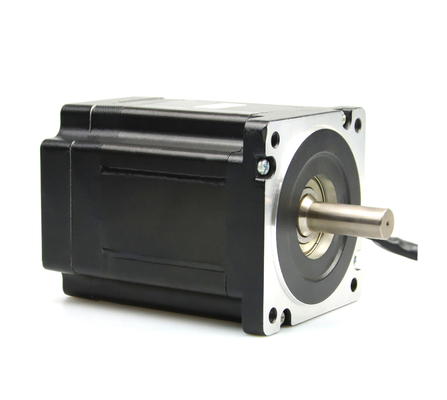

Industrial 86mm Brushless Dc Motor Flange 440W 48Vdc 3000rpm
Changzhou Jkongmortor Co. Ltd. is located in Changzhou city, Jiangsu province, China. We are a comprehensive company which specializes in producing and researching motors and drivers. Our main products include hybrid step motor, and step driver, step servo motor and driver, integrated step servo motor, linear stepper motor, geared stepper motor, stepper motor with brake, brushless dc motor. And we are always researching and developing new products.
our main products:
hybrid stepper motor and drives
Brushless DC motor and drives
planetary gearbox
AC servo motor
Spindle motor
Linear guide and its pairs
Ball screw and its pairs
General specification:
| Item | Specification |
| Widing type | Star/Delta |
| Hall effect angle | 120 degree electrice angle |
| Shaft runout | 0.025mm |
| Radial play | 0.02mm/50g |
| End play | 0.08mm/50g |
| Max radial force | 220N/20mm from the flange |
| Max axial force | 60N |
| Insulation class | Class B |
| IP class | IP 40 |
| Dielectric strength | 500VDC for one minute |
| Insulation Resistance | 100MΩmin 500VDC |
Electrical Specification:
| Model | Rated Voltage(VDC) | Rated Current(A) | Rated Power(W) | Rated Torque(N.m) | Peak Torque(N.m) | Rated Speed(rpm) | Length(mm) | Mass(kg) |
| JK86BLS58 | 48 | 3 | 110 | 0.35 | 1.05 | 3000 | 71 | 1.5 |
| JK86BLS71 | 48 | 6 | 220 | 0.7 | 2.1 | 3000 | 90 | 1.8 |
| JK86BLS84 | 48 | 9 | 330 | 1.05 | 3.15 | 3000 | 98 | 2.3 |
| JK86BLS98 | 48 | 12 | 440 | 1.4 | 4.2 | 3000 | 117 | 2.4 |
| JK86BLS125 | 48 | 18 | 660 | 2.1 | 6.3 | 3000 | 144 | 3.8 |
Electrical Connection:
| Lead No. | Lead Color | Lead Gauge | Function | Description |
| 1 | Red | UL3266/28AWG | VCC+5VDC | SUPPLY VOLTAGE FOR HALL SENSORS |
| 2 | Black | GND | GROUND FOR HALL SENSORS | |
| 3 | Yellow | HALL A | SIGNAL OF HALL A | |
| 4 | Green | HALL B | SIGNAL OF HALL B | |
| 5 | Blue | UL3266/20AWG | HALL C | SIGNAL OF HALL C |
| 1 | Yellow | PHASE U | MOTOR PHASE U | |
| 2 | Green | PHASE V | MOTOR PHASE V | |
| 3 | Blue | PHASE W | MOTOR PHASE W |
