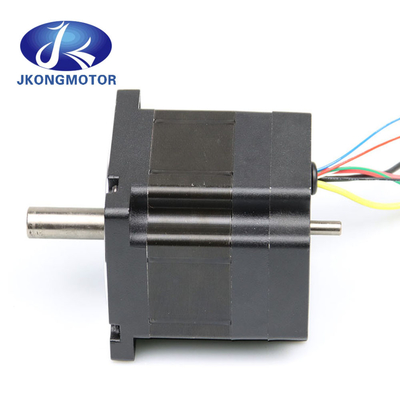

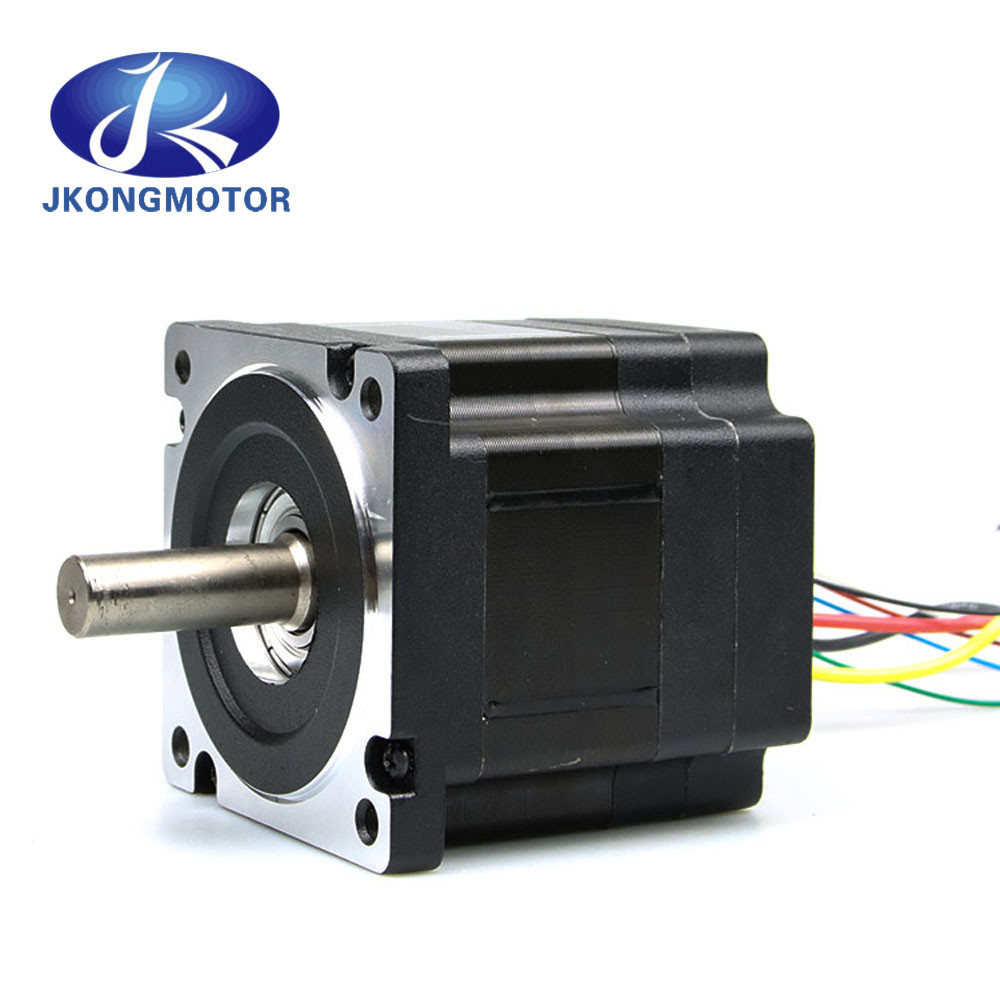

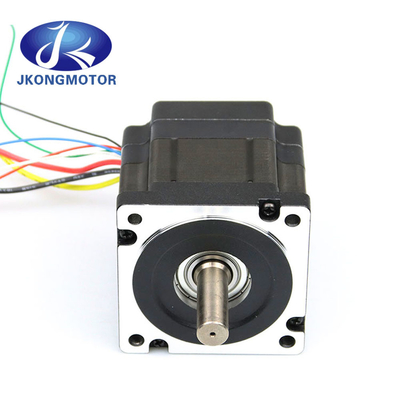

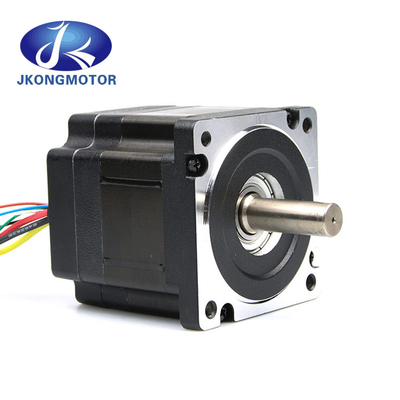

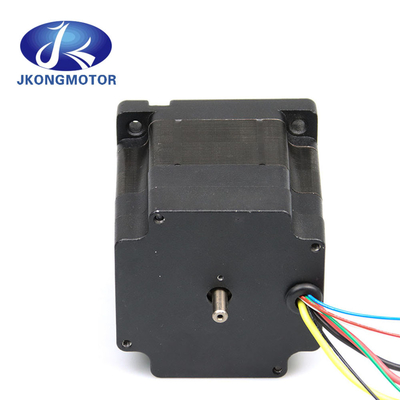

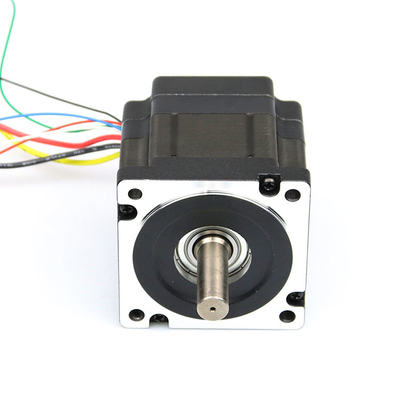

86mm Daul Shaft 24V 48V 3000- 5000rpm BLDC Motor With Hall Sensor Brushless DC Motor For Doner Robot

86mm Daul Shaft 24V 48V 3000- 5000rpm BLDC Motor With Hall Sensor Brushless DC Motor For Doner Robot

86mm Daul Shaft 24V 48V 3000- 5000rpm BLDC Motor With Hall Sensor Brushless DC Motor For Doner Robot
video
86mm Daul Shaft 24V 48V 3000- 5000rpm BLDC Motor With Hall Sensor Brushless DC Motor For Doner Robot
Product Details:
Place of Origin: Jiangsu, China
Brand Name: Jkongmotor
Certification: CE, ROHS,ISO9001
Model Number: JK86BLS71-X020
Payment & Shipping Terms:
Minimum Order Quantity: 3-10pcs
Price: US$30~US$35
Packaging Details: with export carton . big quantity with pallet
Delivery Time: For samples , 7-15 days / For batch , 15-25days
Payment Terms: T/T , paypal , Western Union, L/C
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Name: 86mm Electric Brushless Motor With Hall Sensor Voltage: 24V/36V/48V
Power: 110w/220w/330w/440w/660w Speed: 3000rpm/4000rpm/5000rpm/6000rmp
Sensor: Honeywell Spare: Brushless Dc Motor Controller/driver
Useage: Doner Robot Flange: Carré Bride
Body Length: 71mm/84.5mm/98mm/111.5mm/138.5mm Shaft: Single Shaft/daul Shaft
MOQ: 10pcs
High Light:

86mm Brushless DC Motor

,

5000rpm Brushless DC Motor

,

86mm Electric brushless motor

86mm daul shaft  48V 3000rpm with hall sensor Brushless DC motor for Doner robot


1. Descrition



A brushless DC electric motor (BLDC motor or BL motor), also known as an electronically commutated motor (ECM or EC motor) or synchronous DC motor, is a synchronous motor using a direct current (DC) electric power supply.



Seven Advantages of Brushless DC Motors
  • Better speed versus torque characteristics.
  • High dynamic response.
  • High efficiency.
  • Long operating life due to a lack of electrical and friction losses.
  • Noiseless operation.
  • Higher speed ranges



​In comparison with brushed DC motors, BLDC motors are considered more energy efficient. The lack of friction in brushes enables BLDC motors to convert more electrical power into mechanical power, which is why they are more efficient than brushed motors.



2. Genaral Specification of brushless dc motor





rand Name:
Jkongmtor
Product Name:
Bldc motor with hall sensor
Model Name:
JK86BLS71-X020
Number of Poles:
8
No load Speed:
3700rpm
Nominal Voltage:
48V
Rated Torque:
0.11N.m
Rated Speed:
3000rpm
Output Power:
220w
Torque Constant
0.124N.m/A
Back EMF constant:
13v/krpm
Insulation Class:
B
Size:
86*86mm
Body Length:
86mm





3. Electrical Specification of brushless



Product Series
Poles No.
Rated Voltage
Rated Speed
Rated Torque
Rated Power
Motor Length
42mm BLDC Motor
8
24v
4000rpm
0.0625~0.25N.m
26~105w
41~100mm
57mm BLDC Motor
4
36v
4000rpm
0.055~0.44N.m
23~184w
37~107mm
60mm BLDC Motor
8
48v
3000rpm
0.3~1.2N.m
94~377w
78~120mm
80mm BLDC Motor
4
48v
3000rpm
0.35~1.4N.m
110~440w
78~138mm
86mm BLDC Motor
8
48v
3000rpm
0.35~2.1N.m
110~660w
71~138.5mm
110mm BLDC Motor
8
310v
3000rpm
1.65~6.6N.m
518~2073w
83~173mm
130mm BLDC Motor



Matching Stepper motor Driver: JKBLS300 JKBLS750

4. Dimensions: (Unit=mm)



86mm Daul Shaft 24V 48V 3000- 5000rpm BLDC Motor With Hall Sensor Brushless DC Motor For Doner Robot 0

5. Our service
We do also manufacture other products , such as:

  • Stepper motor ;
  • Stepper motor with gearbox ;
  • Linear stepper motor ;
  • Closed loop stepper motor ;
  • Stepper motor with brake ;
  • Stepper motor driver ;
  • Brushless dc motor ;
  • Bldc motor with gearbox ;
  • Bldc motor driver ;
  • Brush dc motor ;
  • Spindle motor ;
  • Ac servo motor kit ;
  • Couplings ;
  • Pulley ;
  • Power supply and so on.
