Nema24 RS-485 Integrated Drive Stepper Motor 60mm 5.6A 3.4N.M 485oz.In

Nema24 RS-485 Integrated Drive Stepper Motor 60mm 5.6A 3.4N.M 485oz.In

Nema24 RS-485 Integrated Drive Stepper Motor 60mm 5.6A 3.4N.M 485oz.In
video
Nema24 RS-485 Integrated Drive Stepper Motor 60mm 5.6A 3.4N.M 485oz.In
Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: JKong
Certification: CE, ROHS,ISO9001
Model Number: JK60HS100-56041-01FIE
Payment & Shipping Terms:
Minimum Order Quantity: 3-10pcs
Price: USD58-88
Packaging Details: with export carton . big quantity with pallet
Delivery Time: For samples , 7-15 days / For batch , 15-35days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Product Name: Integrated Closed Loop Stepper Motor Model Name: JK60HS100-56041-01FIE
Number Of Phase: 2 Dielectric Strength: 500VDC
DC Resistance: 0.4Ω Holding Torque: 3.4N.m
High Light:

RS-485 Integrated Drive Stepper Motor

,

Nema24 Integrated Drive Stepper Motor

,

60mm Integrated Stepper Motor

Nema24 60mm 5.6A 3.4N.m 485oz.in RS-485 Integrated Drive Stepper Motor



CHANGZHOU JKONGMOTOR CO.,LTD. was founded in 2011,is a professional high-tech manufacturer of stepper motors and brushless motors.Now 80 employees, workshop area of 6,000 square meters.

CHANGZHOU JKONGMOTOR CO.,LTD (Changzhou Jingkong Motor&Electric Appliance Co.,Ltd)is an ISO9001 Professional manufacturer. Was established in 2011 year. We are a professional manufacturer in Changzhou city, China. Production Capacity exceeds more than 1 million motors per year. Our Company offers many major series of products: Hybrid Stepper motors, Closed Loop Stepper Motor, Linear Stepper Motor, Brushless Dc motor, Dc Brush motor, Motor Driver, Geared Motor, Brake Motor, PM Stepper Motor, Power Supply and so on... We are always continues develop new type models.



RS-485 is an industrial specification that defines the electrical interface and physical layer for point-to-point communication of electrical devices. The RS-485 standard allows for long cabling distances in electrically noisy environments and can support multiple devices on the same bus.



1. Electrical Specification of Nema24 integrated stepper motor:



Brand Jkongmotor
Name Stepper Motor with integrated controller
Model Name JK60HS100-56041-01FIE
Step Angle 1.8°
Number of phase 2
Temp rise( Max) 80°C
Dielectric Strength 500VDC
Insulation Class B
Current /phase 5.6A
DC Resistance 0.4Ω
Inductance /phase 1.5mH
Holding torque 3.4N.m



2. Other models available:



Model No.

Connection mode Motor Length

Current

/Phase

Resistance

/Phase

Inductance

/Phase

Holding Torque # of Leads Detent Torque Rotor Inertia Mass
  (L)mm A Ω mH N.m No. g.cm g.cm Kg
JK60HS56-2008 unipolar 56 2 1.8 3. 1.17 8 700 300 0.77
parallel 2.8 0.9 3.6 1.65
Series 1.4 3.6 14.4 1.65
JK60HS67-2008 unipolar 67 2 2.4 4.6 1.5 8 900 570 1.2
  2.8 1.2 4.6 2.1
Series 1.4 4.8 18.4 2.1
JK60HS88-2008 unipolar 88 2 3 6.8 2.2 8 1000 840 1.4
  2.8 1.5 6.8 3.1
Series 1.4 6 27.2 3.1
JK60HS100-2008 unipolar 100 2 3.2 6.4 2.8 8 1100 980 1.7
  2.8 1.6 6.4 4.0
Series 1.4 6.4 25.6 4.0
JK60HS111-2008 unipolar 111 2.0 4.4 8.3 3.2 8 1200 1120 1.9
  2.8 2.2 8.3 4.5
Series 1.4 8.8 33.2 4.5

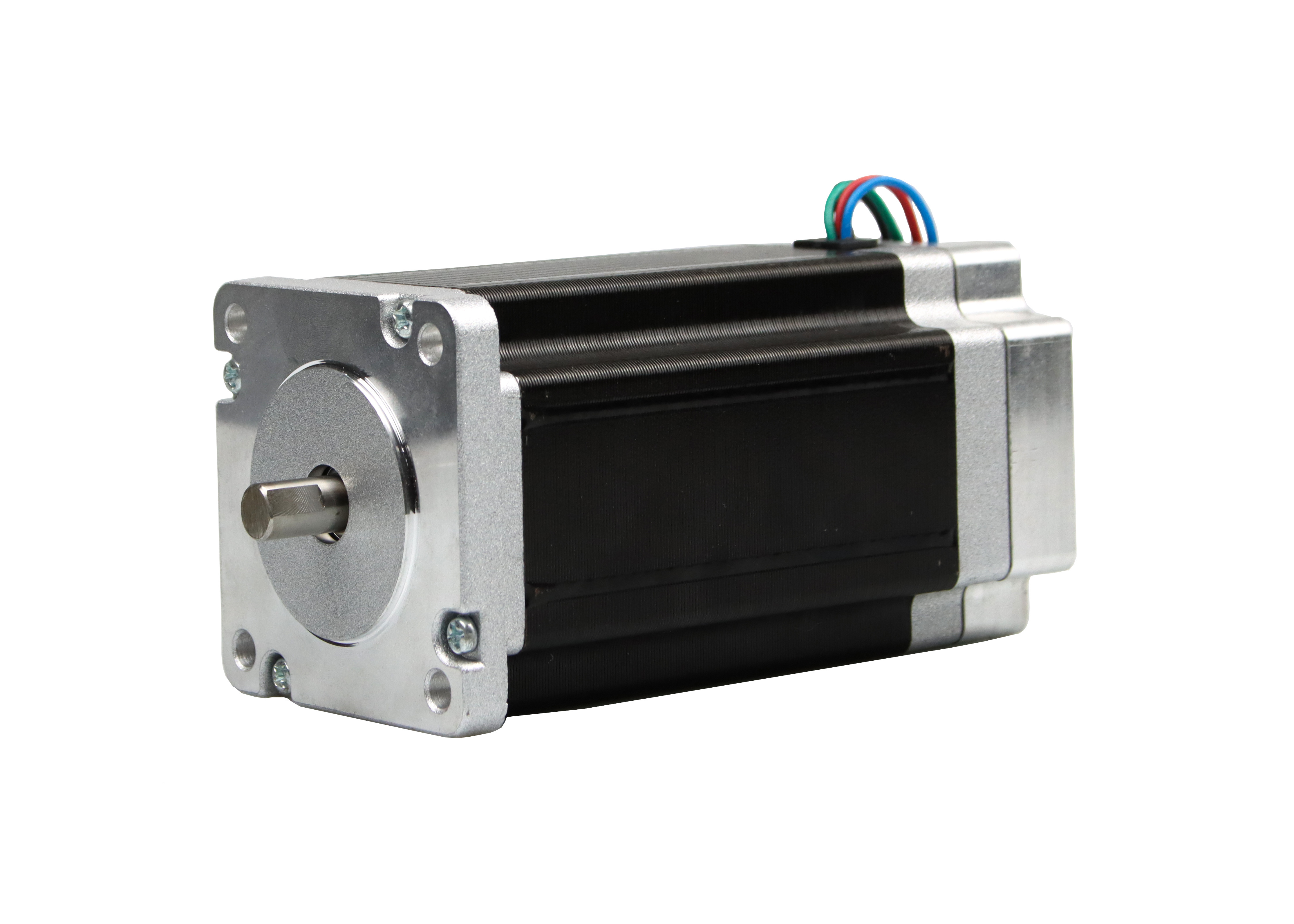

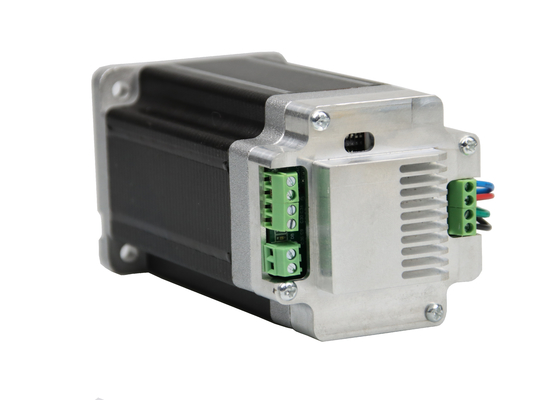

3. Photos of JK60HS100-56041-01FIE:

RS-485 60mm 5.6A 3.4N.m 485oz.in Nema24 Integrated Drive Stepper Motor 1



RS-485 60mm 5.6A 3.4N.m 485oz.in Nema24 Integrated Drive Stepper Motor 2







4. Key Features of integrated drive stepper motor :

  • Integrated compact size for saving mounting space
  • Without losing step, High accuracy in positioning
  • 100% rated output torque
  • Variable current control technology, High current efficiency
  • Small vibration, Smooth and reliable moving at low speed
  • Accelerate and decelerate control inside, Great improvement in the smoothness of starting or stopping the motor
  • User-defined microsteps
  • No adjustment in general applications
  • Over-current, over-voltage, and over position error protection
  • Greenlight means running while a red light means protection or offline

5. CHANGZHOU JKONGMOTOR Company Introduction:

RS-485 60mm 5.6A 3.4N.m 485oz.in Nema24 Integrated Drive Stepper Motor 3

RS-485 60mm 5.6A 3.4N.m 485oz.in Nema24 Integrated Drive Stepper Motor 4



RS-485 60mm 5.6A 3.4N.m 485oz.in Nema24 Integrated Drive Stepper Motor 5RS-485 60mm 5.6A 3.4N.m 485oz.in Nema24 Integrated Drive Stepper Motor 6



Changzhou Jkongmotor Co., Ltd was a high technology industry zone in Changzhou, China. Our products are used in many kinds of machines, such as 3d printers CNC machines, medical equipment, weaving printing equipment, and so on.JKONGMOTOR warmly welcomes 'OEM' & 'ODM' cooperations and other companies to establish long-term cooperation with us.

The company spirit of sincere and good reputation, won the recognition and support of the broad masses of customers, at the same time with the domestic and foreign suppliers' close community of interests, the company entered the stage of benign development, laying a solid foundation for the strategic goal of realizing only really the sustainable development of the company.



6. FAQ:



1. Can you make the gearbox or Gearmotor with custom specifications?
YES. We have strong R&D capability, also a great term of engineers, each of them has many work years experience.

2. Do you provide the samples?
YES. Our company can provide the samples to you

3. Do you provide technical support?
YES. Our company have strong R&D capability, we can provide technical support if you need.

4. why should you buy from us, not from other suppliers?
Professional one-to-one motor customized. The world's large enterprise of choice for high-quality suppliers. ISO9001:2008 quality management system certification, through the CE, ROHS certification.

5. How to ship to us?
We will ship the samples to you according to the DHL or UPS or FEDEX etc account you provide.

6. How can I know if the product is suitable for me?
First, you need to provide us the more details information about the product. We will recommend the item to you according to your requirement and the specification. After you confirm, we will prepare the samples for you. also we will offer some good advances according to your product use.
