Nema23 1.8N.M Torque Integrated Stepper Motor 4.2a 257oz.In With Driver

Nema23 4.2a 257oz.In 1.8N.M Torque Integrated Stepper Motor With Driver

Integrated Stepper Motors fuse step motor plus drive and control components into a single device. Integrated steppers offer a space-saving design that reduces wiring and saves on cost over separate motor and drive components.

1. Electrical Specification of Nema23 integrated stepper motor:

Physical Specifications:

• Frame Size: 57 x 57mm
• Body Length: 76mm
• Shaft Diameter: Φ10mm
• Shaft Length: 30mm
• Holding Torque: 1.8Nm(257oz.in)
• Current /phase: 4.2A
• Rated voltage: 2.52v
• Inductance /phase: 1.8mH
• Resistance: 0.6Ω

• 2. Other models available:

  Model No.	Step Angle	Motor Length	Current /Phase	Resistance /Phase	Inductance /Phase	Holding Torque	# of Leads	Detent Torque	Rotor Inertia	Mass
  	( °)	(L)mm	A	Ω	mH	N.m	No.	g.cm	g.cm	Kg
  JK57HS41-1006	1.8	41	1	7.1	8	0.48	6	250	150	0.47
  JK57HS41-2008	1.8	41	2	1.4	1.4	0.39	8	250	150	0.47
  JK57HS41-2804	1.8	41	2.8	0.7	1.4	0.55	4	250	150	0.47
  JK57HS51-1006	1.8	51	1	6.6	8.2	0.72	6	300	230	0.59
  JK57HS51-2008	1.8	51	2	1.8	2.7	0.9	8	300	230	0.59
  JK57HS51-2804	1.8	51	2.8	0.83	2.2	1.01	4	300	230	0.59
  JK57HS56-2006	1.8	56	2	1.8	2.5	0.9	6	350	280	0.68
  JK57HS56-2108	1.8	56	2.1	1.8	2.5	1	8	350	280	0.68
  JK57HS56-2804	1.8	56	2.8	0.9	2.5	1.2	4	350	280	0.68
  JK57HS64-2804	1.8	64	2.8	0.8	2.3	1	4	400	300	0.75
  JK57HS76-2804	1.8	76	2.8	1.1	3.6	1.89	4	600	440	1.1
  JK57HS76-3006	1.8	76	3	1	1.6	1.35	6	600	440	1.1
  JK57HS76-3008	1.8	76	3	1	1.8	1.5	8	600	440	1.1
  JK57HS82-3004	1.8	82	3	1.2	4	2.1	4	1000	600	1.2
  JK57HS82-4008	1.8	82	4	0.8	1.8	2	8	1000	600	1.2
  JK57HS82-4204	1.8	82	4.2	0.7	2.5	2.2	4	1000	600	1.2
  JK57HS100-4204	1.8	100	4.2	0.75	3	3	4	1100	700	1.3
  JK57HS112-3004	1.8	112	3	1.6	7.5	3	4	1200	800	1.4
  JK57HS112-4204	1.8	112	4.2	0.9	3.8	3.1	4	1200	800	1.4

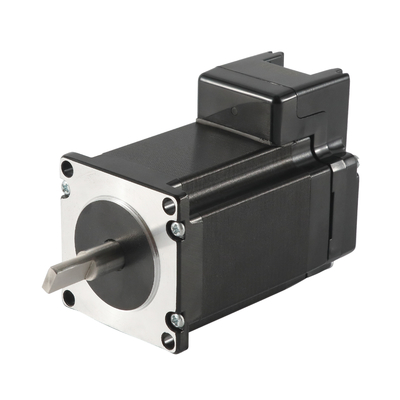

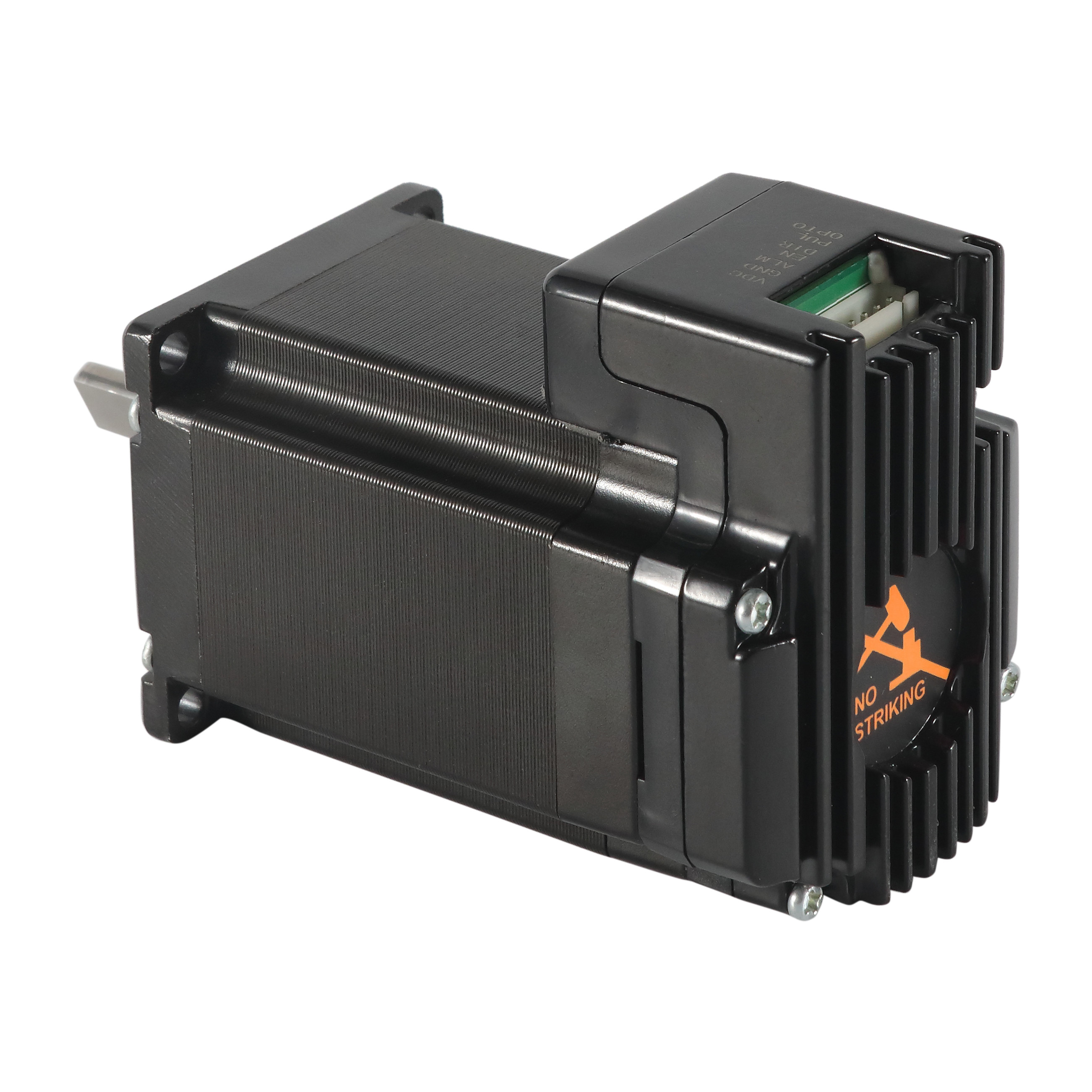

  3. Photos of JK57HS76-4204SBIE-02:



  4. Key Features of integrated drive stepper motor :

• Integrated compact size for saving mounting space
• Without losing a step, High accuracy in positioning
• 100% rated output torque
• Variable current control technology, High current efficiency
• Small vibration, Smooth and reliable moving at low speed
• Accelerate and decelerate control inside, Great improvement in the smoothness of starting or stopping the motor
• User-defined micro steps
• No adjustment in general applications
• Over-current, over-voltage, and over position error protection
• Greenlight means running while a red light means protection or offline
