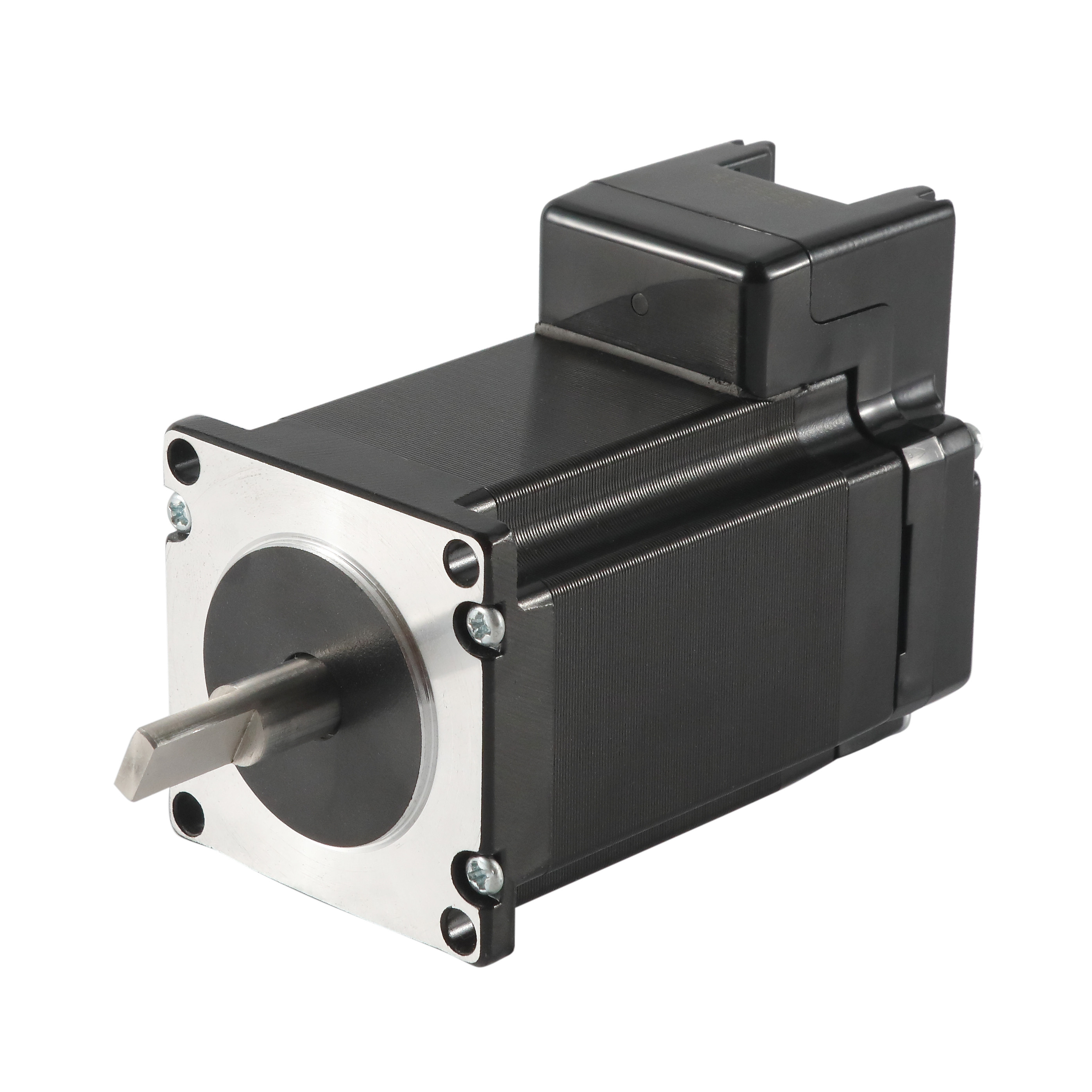

Black End Cover Nema23 Integrated Stepper Motor Torque 1.8N.M 257oz.In 4.2A

Torque 1.8N.m 257oz.in 4.2A Black end cover Nema23 Integrated Stepper Motor/driver

Integrated Stepper Motors fuse step motor plus drive and control components into a single device. Integrated steppers offer a space-saving design that reduces wiring and saves on cost over separate motor and drive components.

1. Electrical Specification of Nema23 integrated stepper motor:

Physical Specifications:

• Frame Size: 57 x 57mm
• Body Length: 76mm
• Shaft Diameter: Φ10mm
• Shaft Length: 30mm
• Holding Torque: 1.8Nm(257oz.in)
• Current /phase: 4.2A
• Rated voltage: 2.52v
• Inductance /phase: 1.8mH
• Resistance: 0.6Ω

2. Other models available:

Model No.	Step Angle	Motor Length	Current /Phase	Resistance /Phase	Inductance /Phase	Holding Torque	# of Leads	Detent Torque	Rotor Inertia	Mass
	( °)	(L)mm	A	Ω	mH	N.m	No.	g.cm	g.cm	Kg
JK57HS41-1006	1.8	41	1	7.1	8	0.48	6	250	150	0.47
JK57HS41-2008	1.8	41	2	1.4	1.4	0.39	8	250	150	0.47
JK57HS41-2804	1.8	41	2.8	0.7	1.4	0.55	4	250	150	0.47
JK57HS51-1006	1.8	51	1	6.6	8.2	0.72	6	300	230	0.59
JK57HS51-2008	1.8	51	2	1.8	2.7	0.9	8	300	230	0.59
JK57HS51-2804	1.8	51	2.8	0.83	2.2	1.01	4	300	230	0.59
JK57HS56-2006	1.8	56	2	1.8	2.5	0.9	6	350	280	0.68
JK57HS56-2108	1.8	56	2.1	1.8	2.5	1	8	350	280	0.68
JK57HS56-2804	1.8	56	2.8	0.9	2.5	1.2	4	350	280	0.68
JK57HS64-2804	1.8	64	2.8	0.8	2.3	1	4	400	300	0.75
JK57HS76-2804	1.8	76	2.8	1.1	3.6	1.89	4	600	440	1.1
JK57HS76-3006	1.8	76	3	1	1.6	1.35	6	600	440	1.1
JK57HS76-3008	1.8	76	3	1	1.8	1.5	8	600	440	1.1
JK57HS82-3004	1.8	82	3	1.2	4	2.1	4	1000	600	1.2
JK57HS82-4008	1.8	82	4	0.8	1.8	2	8	1000	600	1.2
JK57HS82-4204	1.8	82	4.2	0.7	2.5	2.2	4	1000	600	1.2
JK57HS100-4204	1.8	100	4.2	0.75	3	3	4	1100	700	1.3
JK57HS112-3004	1.8	112	3	1.6	7.5	3	4	1200	800	1.4
JK57HS112-4204	1.8	112	4.2	0.9	3.8	3.1	4	1200	800	1.4

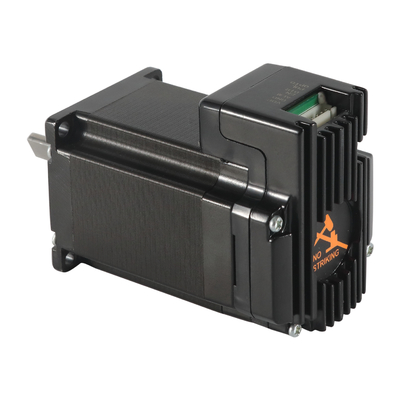

3. Photos of JK57HS76-4204SBIE-02:

4. Key Features of integrated drive stepper motor :

• Integrated compact size for saving mounting space
• Without losing a step, High accuracy in positioning
• 100% rated output torque
• Variable current control technology, High current efficiency
• Small vibration, Smooth and reliable moving at low speed
• Accelerate and decelerate control inside, Great improvement in the smoothness of starting or stopping the motor
• User-defined micro steps
• No adjustment in general applications
• Over-current, over-voltage, and over position error protection
• Greenlight means running while a red light means protection or offline
