Nema17 Integrated Stepper Motor 2phase 0.26N.M 37oz.In Holding Torque

2phase 0.26N.m 37oz.in holding torque Nema17 Integrated Drive Stepper Motor

Open New Avenues With High-Performance Integrated Stepper Motors from CHANGZHOU JKONGMOTOR.Contact Us to Learn About Our Integrated Stepper Motors Solutions, Built to Meet Your Needs. Expert Customer Support. Customized Configurations. High Endurance.

General Specification of Nema17 stepper motor:

• Step angle:1.8°
• Temperature rise: below 80 ℃
• Ambient temperature:-20 ℃ ~ + 50 ℃
• Insulation resistance: minimum 100MΩ, 500VDC
• Dielectric strength:500VAC for 1 minute
• Shaft radial clearance 0.02 max (450 g load)
• Shaft axial clearance:0.08Max. (450 g load)
• Maximum radial force:28N (20mm from flange)
• Maximum axial force:10N
• size:Approximately 42x42x34mm

Electrical Specification of Nema24 closed loop stepper motor with integrated driver:

Other models available:

Model:	Step Angle	Motor Length	Current /Phase	Resistance /Phase	Inductance /Phase	Holding Torque	# of Leads	Detent Torque	Rotor Inertia	Mass
	( °)	(L)mm	A	Ω	mH	kg.cm	No.	g.cm	g.cm	Kg
JK42HS25-0404	1.8	25	0.4	24	36	1.8	4	75	20	0.15
JK42HS28-0504	1.8	28	0.5	20	21	1.5	4	85	24	0.22
JK42HS34-1334	1.8	34	1.33	2.1	2.5	2.2	4	120	34	0.22
JK42HS34-0406	1.8	34	0.4	24	15	1.6	6	120	34	0.22
JK42HS34-0956	1.8	34	0.95	4.2	2.5	1.6	6	120	34	0.22
JK42HS40-0406	1.8	40	0.4	30	30	2.6	6	150	54	0.28
JK42HS40-1684	1.8	40	1.68	1.65	3.2	3.6	4	150	54	0.28
JK42HS40-1206	1.8	40	1.2	3	2.7	2.9	6	150	54	0.28
JK42HS48-0406	1.8	48	0.4	30	25	3.1	6	260	68	0.35
JK42HS48-1684	1.8	48	1.68	1.65	2.8	4.4	4	260	68	0.35
JK42HS48-1206	1.8	48	1.2	3.3	2.8	3.17	6	260	68	0.35
JK42HS60-0406	1.8	60	0.4	30	39	6.5	6	280	102	0.5
JK42HS60-1704	1.8	60	1.7	3	6.2	7.3	4	280	102	0.5
JK42HS60-1206	1.8	60	1.2	6	7	5.6	6	280	102	0.5

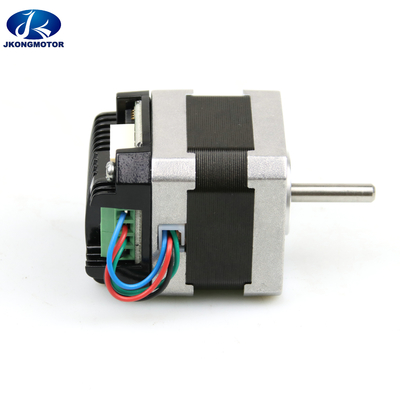

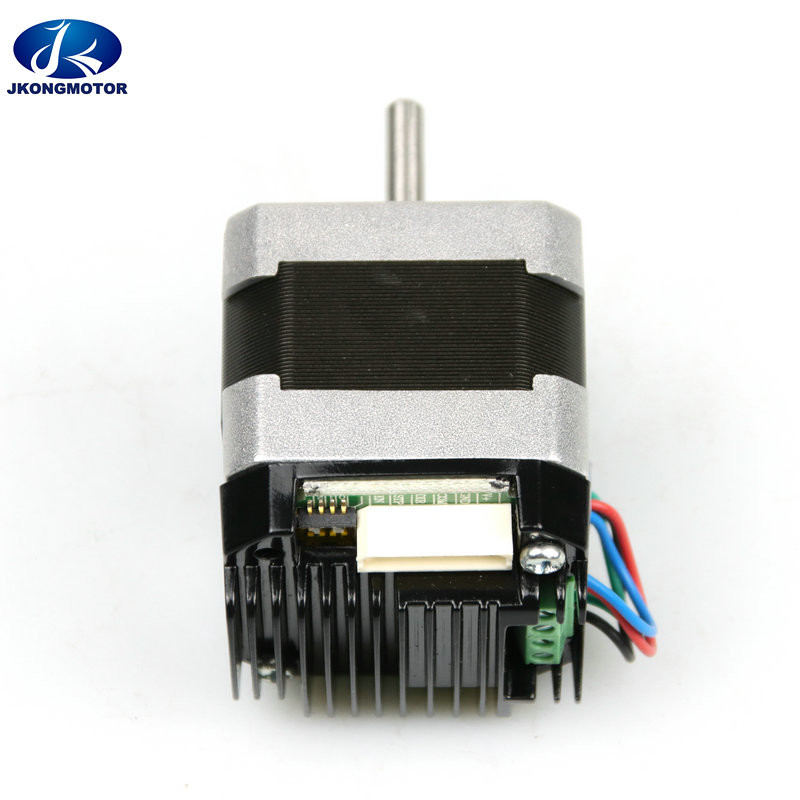

Photos of JK42HS34-1334IE:

Changzhou Jkongmotor Co., Ltd was a high technology industry zone in Changzhou, china. Our products are used in many kinds of machines, such as 3d printers CNC machines, medical equipment, weaving printing equipment and so on.JKONGMOTOR warmly welcome 'OEM' & 'ODM' cooperations and other companies to establish long-term cooperation with us.

Company spirit of sincere and good reputation, won the recognition and support of the broad masses of customers, at the same time with the domestic and foreign suppliers close community of interests, the company entered the stage of stage of benign development, laying a solid foundation for the strategic goal of realizing only really the sustainable development of the company.

FAQ:

1. Can you make the gearbox or Gearmotor with custom specifications?
YES. We have strong R&D capability, also a significant term of engineers, each of them has many work years experience.

2. Do you provide the samples?
YES. Our company can provide the samples to you

3. Do you provide technical support?
YES. Our company have strong R&D capability, we can provide technical support if you need.

4. why should you buy from us and not from other suppliers?
Professional one-to-one motor customized. The world's large enterprise of choice for high-quality suppliers. ISO9001:2008 quality management system certification, through the CE, ROHS certification.

5. How to ship to us?
We will ship the samples to you according to the DHL or UPS or FEDEX etc account you provide.

6. How can I know if the product is suitable for me?
First, you need to provide us the more details information about the product. We will recommend the item to you according to your specification requirement. After you confirm, we will prepare the samples for you. also we will offer some promising advances according to your product use.
