1.8deg 2.8v 1.33A 2.6kg.Cm Nema17 Stepper Motor With Integrated Controller

1.8deg 2.8v 1.33A 2.6kg.Cm Nema17 Stepper Motor With Integrated Controller

1.8deg 2.8v 1.33A 2.6kg.Cm Nema17 Stepper Motor With Integrated Controller
video
1.8deg 2.8v 1.33A 2.6kg.Cm Nema17 Stepper Motor With Integrated Controller
Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: JK
Certification: CE, ROHS,ISO9001
Model Number: JK42HS34-1334IE
Payment & Shipping Terms:
Minimum Order Quantity: 3-10pcs
Price: USD28-38
Packaging Details: with export carton . big quantity with pallet
Delivery Time: For samples , 7-15 days / For batch , 15-35days
Payment Terms: T/T, Western Union, paypal, L/C
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Product Name: Integrated Closed Loop Stepper Motor Model Name: JK42HS34-1334IE
Temp Rise( Max): 80°C Dielectric Strength: 500VDC
Current /phase: 1.33A DC Resistance: 2.1Ω
Inductance /phase: 2.5mH Holding Torque: 0.26N.m
High Light:

Nema17 Stepper Motor With Integrated Controller

,

1.8deg Nema17 Stepper Motor

,

2.8v Stepper Motor With Integrated Controller

1.8deg 2.8v 1.33A 2.6kg.cm Nema17 Stepper Motor with integrated controller



Concerns of buyers: General integrated motor/drive features


• DC power supply required (12-48 VDC or 12-70 VDC)
• Pulse/Direction or CW Pulse/CCW Pulse
• Step input signal smoothing (microstep emulation), performs high resolution stepping by synthesizing coarse steps into fine microsteps
• Dynamic smoothing, software-configurable filtering for use in removing spectral components from command sequence, reduces jerk, limiting excitation of system resonance
• Anti-resonance (electronic damping): raises the system-damping ratio to eliminate midrange instability and allow stable operation throughout the speed range of the motor
• Idle current reduction range of 0-90% of running current after a delay selectable in milliseconds (Standard models = 50/90%, DIP switch selectable)
• Configurable hardware digital noise filter, software noise filter
• Non-volatile storage, configurations are saved in FLASH memory on-board the DSP
• Dynamic current control, software configurable for running current, accel current, idle current, to make motion smoother and the motor run cooler



Electrical Specification of Nema24 closed loop stepper motor with integrated driver:



Brand Jkongmotor
Name Stepper Motor with integrated controller
Model Name JK42HS34-1334IE
Step Angle 1.8°
Number of phase 2
Temp rise( Max) 80°C
Dielectric Strength 500VDC
Insulation Class B
Current /phase 1.33A
DC Resistance 2.1Ω
Inductance /phase 2.5mH
Holding torque 0.26N.m



Other models available:

Model: Step Angle Motor Length

Current

/Phase

Resistance

/Phase

Inductance

/Phase

Holding Torque # of Leads Detent Torque Rotor Inertia Mass
( °) (L)mm A Ω mH kg.cm No. g.cm g.cm1.8deg 2.8v 1.33A 2.6kg.Cm Nema17 Stepper Motor With Integrated Controller 0 Kg
JK42HS25-0404 1.8 25 0.4 24 36 1.8 4 75 20 0.15
JK42HS28-0504 1.8 28 0.5 20 21 1.5 4 85 24 0.22
JK42HS34-1334 1.8 34 1.33 2.1 2.5 2.2 4 120 34 0.22
JK42HS34-0406 1.8 34 0.4 24 15 1.6 6 120 34 0.22
JK42HS34-0956 1.8 34 0.95 4.2 2.5 1.6 6 120 34 0.22
JK42HS40-0406 1.8 40 0.4 30 30 2.6 6 150 54 0.28
JK42HS40-1684 1.8 40 1.68 1.65 3.2 3.6 4 150 54 0.28
JK42HS40-1206 1.8 40 1.2 3 2.7 2.9 6 150 54 0.28
JK42HS48-0406 1.8 48 0.4 30 25 3.1 6 260 68 0.35
JK42HS48-1684 1.8 48 1.68 1.65 2.8 4.4 4 260 68 0.35
JK42HS48-1206 1.8 48 1.2 3.3 2.8 3.17 6 260 68 0.35
JK42HS60-0406 1.8 60 0.4 30 39 6.5 6 280 102 0.5
JK42HS60-1704 1.8 60 1.7 3 6.2 7.3 4 280 102 0.5
JK42HS60-1206 1.8 60 1.2 6 7 5.6 6 280 102 0.5

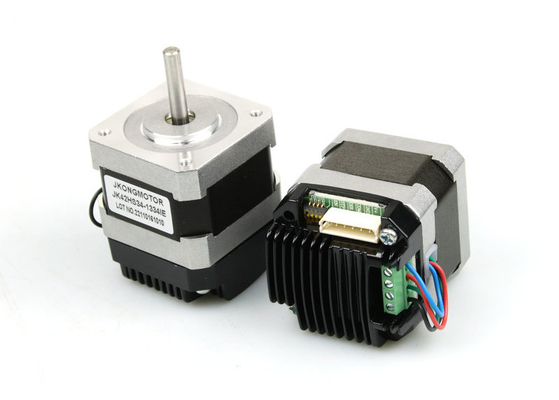

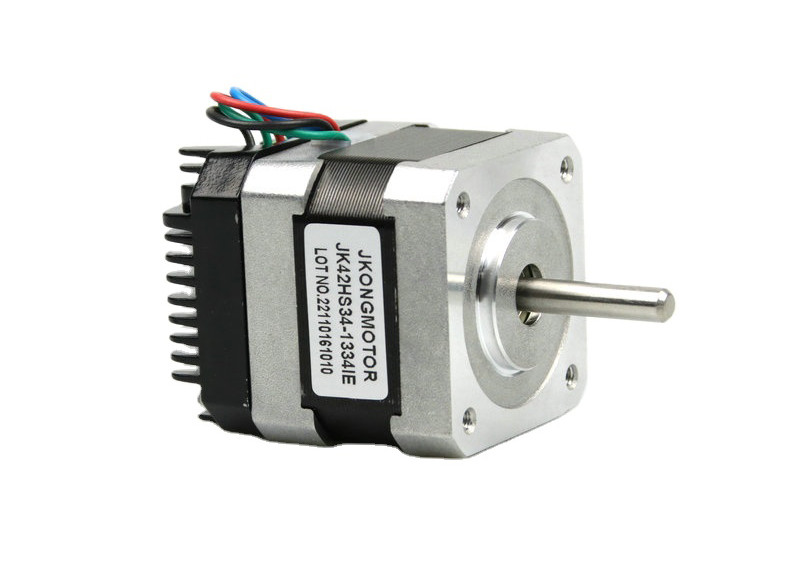

Photos of JK42HS34-1334IE:





1.8deg 2.8v 1.33A 2.6kg.Cm Nema17 Stepper Motor With Integrated Controller 1

1.8deg 2.8v 1.33A 2.6kg.Cm Nema17 Stepper Motor With Integrated Controller 2

1.8deg 2.8v 1.33A 2.6kg.Cm Nema17 Stepper Motor With Integrated Controller 31.8deg 2.8v 1.33A 2.6kg.Cm Nema17 Stepper Motor With Integrated Controller 4



Changzhou Jkongmotor Co., Ltd was a high technology industry zone in changzhou, china. Our products used in many kinds of machines, such as 3d printer CNC machine, medical equipment, weaving printing equipments and so on.JKONGMOTOR warmly welcome 'OEM' & 'ODM' cooperations and other companies to establish long-term cooperation with us.

Company spirit of sincere and good reputation, won the recognition and support of the broad masses of customers, at the same time with the domestic and foreign suppliers close community of interests, the company entered the stage of stage of benign development, laying a solid foundation for the strategic goal of realizing only really the sustainable development of the company.



FAQ:



1. Can you make the gearbox or gearmotor with custom specifications?
YES. We have strong R&D capability, also a great term of engineers, each of them have many work years experience.

2. Do you provide the samples?
YES. Our company can provide the samples to you

3.Do you provide technology support?
YES. Our company have strong R&D capability, we can provide technology support if you need.

4. why should you buy from us not from other suppliers?
Professional one-to-one motor customized . The world's large enterprise of choice for high quality suppliers . ISO9001:2008 quality management system certification, through the CE, ROHS certification.

5. How to ship to us?
We will ship the samples to you according to the DHL or UPS or FEDEX etc account you provide.

6. How can I know the product is suitable for me?
Frist, you need to provide us the more details information about the product. We will recommend the item to you according to your requirement of specification. After you confirm, we will prepare the samples to you. also we will offer some good advances according to your product use.
