416oz.In Nema 23 Closed Loop Servo Stepper Motor 57mm Diameter

416oz.In Nema 23 Closed Loop Servo Stepper Motor 57mm Diameter

416oz.In Nema 23 Closed Loop Servo Stepper Motor  57mm Diameter
video
416oz.In Nema 23 Closed Loop Servo Stepper Motor  57mm Diameter
Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jkongmotor
Certification: CE, ROHS,ISO9001
Model Number: JK57HSN30
Payment & Shipping Terms:
Minimum Order Quantity: 3-10pcs
Price: US$55.5~US$73.5/pcs
Packaging Details: with export carton . big quantity with pallet
Delivery Time: For samples , 7-15 days / For batch , 15-25days
Payment Terms: T/T , paypal , Western Union, L/C
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Type: NEMA23 Closed Loop Servo Motor Phase: 2
No. Of Leads: 4 Voltage: 3.78V
Current: 4.2A Holding Torque: 3N.m
Step Angle: 1.8 Degree Motor Diameter: 57mm
Motor Length: 134mm Typical Applications: CNC Machine, Robot
High Light:

Nema 23 Servo Stepper Motor

,

57mm Servo Stepper Motor

,

57mm Closed Loop Stepper Motor



1) Product Description

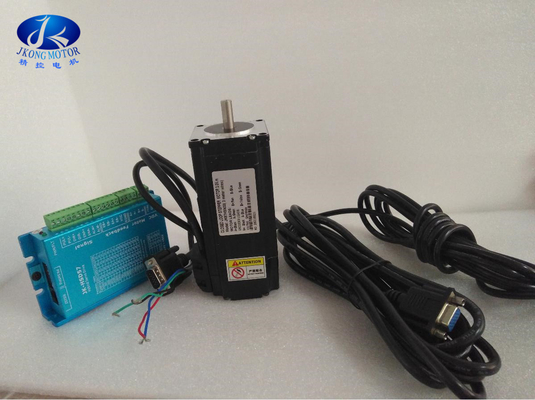

3N.m Nema23 Closed loop Motor + driver full kit



1) Product Name: 3N.m Nema23 Closed loop servo stepper motor
Model: JK57HSN30
Number of Phase: 2
Step Angle: 1.8 Degree
No. of Leads: 4
Rated Voltage: 3.78V
Rated Current: 4.2 Amps
Holding Torque: 3N.m
Motor Diameter: 57mm
Motor length:134mm
Shaft Length: 21mm
Shaft Diameter: 7.5mm



2) Product Name: 3N.m Nema23 Closed loop servo stepper driver
Model:JK-HSD57
Voltage Range: 24-80VDC
Microstep/pulse: 25600/rev



3)Typical applications: CNC machine, Robot


2) Product Images

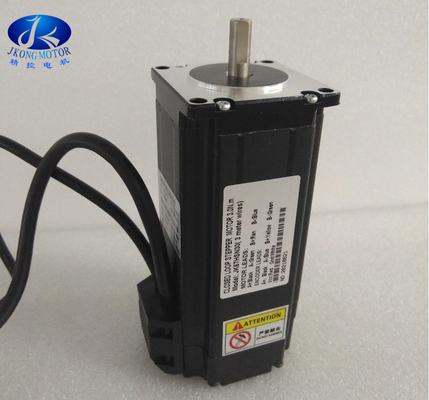

416oz.In Nema 23 Closed Loop Servo Stepper Motor  57mm Diameter 0

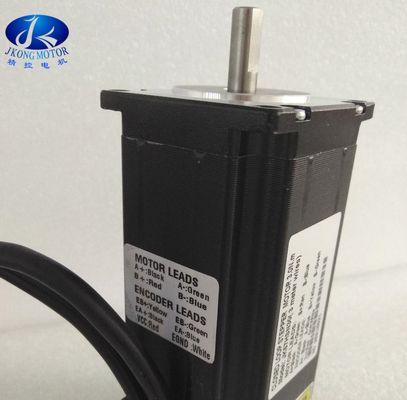

416oz.In Nema 23 Closed Loop Servo Stepper Motor  57mm Diameter 1
416oz.In Nema 23 Closed Loop Servo Stepper Motor  57mm Diameter 2
3) Product Drawings
416oz.In Nema 23 Closed Loop Servo Stepper Motor  57mm Diameter 3





4) Other Models
Closed Loop Servo Stepper Motor /
Easy Servo Stepper Motor Series
Motor series
Phase No.
Step angle
Leads No.
Motor size
Holding Torque
Nema 23
2 phase
1.8 degree
4
57x57mm
1.8
N.m
Nema 23
2 phase
1.8 degree
4
57x57mm
2.2
N.m
Nema 23
2 phase
1.8 degree
4
57x57mm
3.1
N.m
Nema 24
2 phase
1.8 degree
4
60x60mm
3.1
N.m
Nema 24
2 phase
1.8 degree
4
60x60mm
4
N.m
Nema 34
2 phase
1.8 degree
4
86x86mm
4.5
N.m
Nema 34
3 phase
1.8 degree
4
86x86mm
8.5
N.m
Nema 34
2 phase
1.8 degree
4
86x86mm
12
N.m
Nema 42
2 phase
1.2 degree
4
110x110mm
20
N.m
Nema 52
3 phase
1.2 degree
4
130x130mm
30
N.m
Above only for representative products, products of special request can be made according to the customer request.
