7.5A 180W Nema23 Integrated DC Servo Motor IHSV57-30-18-36 for Large Printer

Product Details:

Place of Origin:	Jiangsu, China (Mainland)
Brand Name:	Jkongmotor
Certification:	CE, ROHS,ISO9001
Model Number:	IHSV57-30-18-36-01-BY-PY

Payment & Shipping Terms:

Minimum Order Quantity:	3-10pcs
Price:	Negotiable
Packaging Details:	with export carton . big quantity with pallet
Delivery Time:	For samples , 7-15 days / For batch , 15-25days
Payment Terms:	T/T , paypal , Western Union, L/C
Supply Ability:	100000pcs/month

Contact Now

Detailed Product Description

Type:	Integrated DC Servo Motor	Phase:	3
Voltage:	36V	Current:	7.5A
Holding Torque:	0.6N.m	Power:	180W
Speed:	3000rpm	Shaft:	D Shaft
Inductance:	0.58±20%mH	Resistance:	0.53±10%Ω
Highlight:	7.5A Closed Loop Stepper Motor , 0.6N.m Closed Loop Stepper Motor , 0.6N.m Nema 23 Stepper Motor

7.5A 180W Nema23 Integrated DC Servo Motor IHSV57-30-18-36 for Large Printer

Name: 7.5A 180W Nema23 Integrated DC Servo Motor IHSV57-30-18-36 for Large Printer
Brand: CHANGZHOU JKONGMOTOR CO.,LTD
SKU: IHSV57-30-18-36-01-BY-PY
Price: 170.00 USD
Availability: InStock

1. Introduction

The integrated DC servo motor integrates the DC servo driver into the servo motor, and the two are perfectly integrated. The vector control designed and produced by DSP has the characteristics of low cost, full closed loop, full digital, small heat generation, small vibration and fast response. Including three adjustable feedback loop control (position loop, speed loop and current loop). Stable performance, integrated DC servo motor is a highly cost-effective motion control product.

2. Product description

Item	value	Item	value
Warranty	1 YEAR	Product name	Nema 23 Integrated DC Servo Motor
Place of Origin	China	Step angle	1.8 degree
Model Number	IHSV57-30-18-36-01-BY-PY	Motor length	148mm
Phase	3	Resistance	0.53Ω
Type	Hybrid	Inductance	0.58mH
Current / Phase	7.5A	Holding torque	0.6N.m

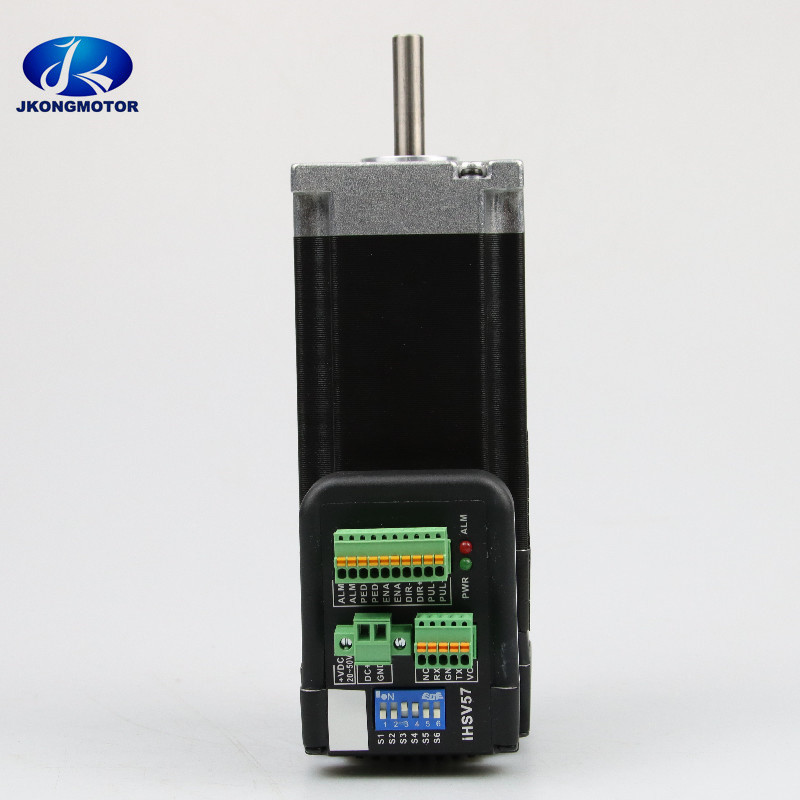

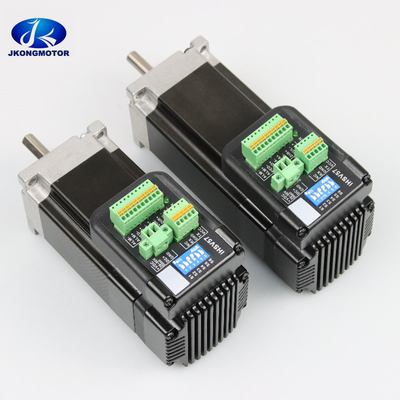

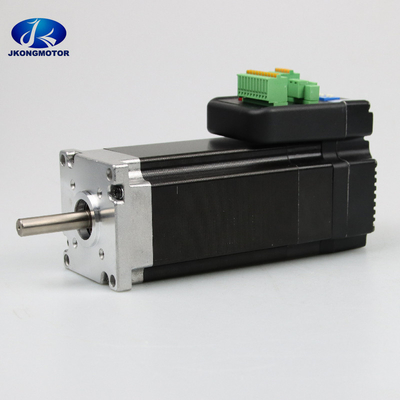

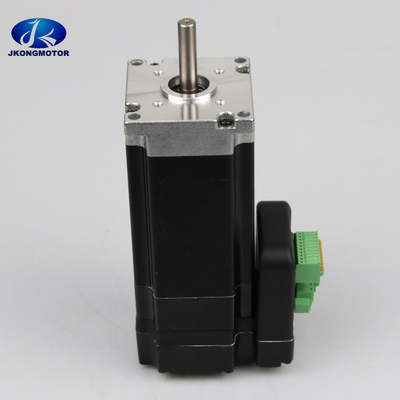

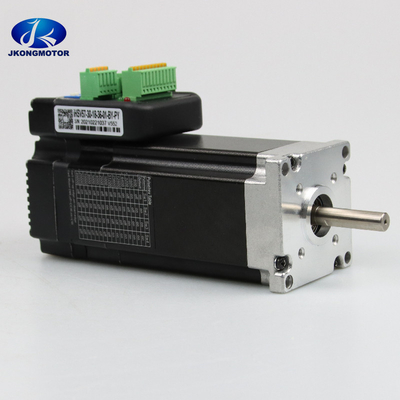

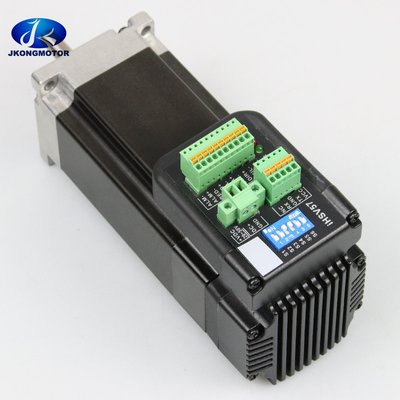

3. Product Image

4. Product Drawing

6. Other Products

Advantages of DC servo motor:

High output power.

Resonance and vibration free operation.

The encoder determines the accuracy and resolution.

High efficiency, nearly 90% under light load.

High torque inertia ratio, which can quickly accelerate the load.

It has "reserve" capability, 2-3 times continuous power and short duration.

It has "reserve" torque, which is 5-10 times of the rated torque in a short term.

The motor is kept cool, and the current consumption is proportional to the load.

Quiet sound can be heard during high-speed operation.

Available high-speed torque to keep the rated torque at 90% of NL speed.
