| Place of Origin: | Jiangsu, China (Mainland) |
| Brand Name: | Jkongmotor |
| Certification: | CE, ROHS,ISO9001 |
| Model Number: | JK86HSN |
| Minimum Order Quantity: | 3-10pcs |
|---|---|
| Price: | US$200~US$320 |
| Packaging Details: | with export carton . big quantity with pallet |
| Delivery Time: | For samples , 7-15 days / For batch , 15-25days |
| Payment Terms: | T/T , paypal , Western Union, L/C |
| Supply Ability: | 100000pcs/month |
| Model Number: | Nema 34 Closed Loop Stepper Motor Kits | Phase: | 2 |
|---|---|---|---|
| Current: | 6.0A | Holding Torque: | 4.6N.m - 13N.m |
| Resistance: | 0.27Ω - 0.44Ω | Inductance: | 2mH - 3.8mH |
| Detent Torque: | 1.2kg.cm - 3.6kg.cm | Warranty: | 12 Months |
| Place Of Origin: | China | Number Of Leads: | 4 |
| Key Words: | 3axis 4axis Stepper Motor Kits | ||
| High Light: | 13Nm Nema34 Stepper Motor,13Nm Closed Loop Stepper Motor,Nema34 DC Servo Motor |
||

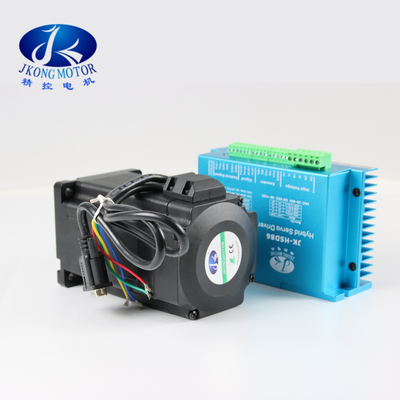

DC Servo Motor 13Nm Nema34 Closed Loop Stepper Motor With Driver Kit
Genaral Specification of closed loop stepper motor:
| Item | Specifications |
| Step Angle | 1.8° |
| Temperature Rise | 80℃max |
| Ambient Temperature | -20℃~+50℃ |
| Insulation Resistance | 100 MΩ Min. ,500VDC |
| Dielectric Strength | 820VAC for 1minute |
| Shaft Radial Play | 0.02Max. (450g-load) |
| Shaft Axial Play | 0.08Max. (450g-load) |
| Max. radial force | 220N (20mm from the flange) |
| Max. axial force | 60N |
Electrical Specification of nema 34 closed loop stepper motor:
| Model No. | Step Angle | Motor Length |
Current /Phase |
Resistance /Phase |
Inductance /Phase |
Holding Torque | # of Leads | Detent Torque | Rotor Inertia |
| ( °) | (L)mm | A | Ω | mH | N.m | No. | Kg.cm | g.cm² | |
| JK86HSN45 | 1.8 | 78 | 6 | 0.27 | 2 | 4.6 | 4 | 1.2 | 1400 |
| JK86HSN65 | 1.8 | 100 | 6 | 0.27 | 2.2 | 6.8 | 4 | 1.9 | 2200 |
| JK86HSN85 | 1.8 | 115 | 6 | 0.36 | 3.8 | 8.5 | 4 | 2.4 | 2700 |
| JK86HSN120 | 1.8 | 155 | 6 | 0.44 | 3.8 | 12.5 | 4 | 3.6 | 4000 |
| Above only for representative products, products of special request can be made according to the customer request. | |||||||||

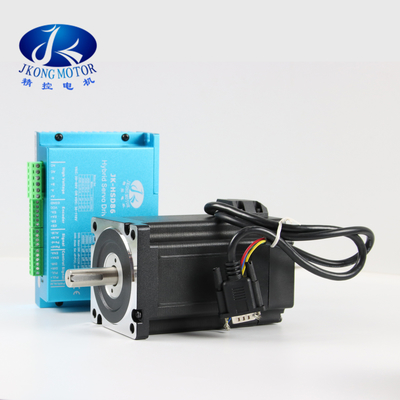

closed loop Stepper motor Driver: JK-HSD86
| Parameter | Min | Typical | Max | Unit | |
| Input Voltage (JK-HSD86) | 20 | 36 48 | 50 | VDC | |
| Input Voltage (JK-HSD86C) | 24 | 36 48 | 80 | VDC | |
| Input Voltage (SC8680C) | 24VAC | 60AC | 80VAC 100VDC | VVDC | |
| Output Current | 0.1 | - | 10(Peak) | A | |
| Pulse Input Frequency | 0 | - | 200 | kHz | |
| Logic Signal Current | 7 | 10 | 16 | mA | |
| Isolation Resistance | 500 | - | - | MΩ | |
Suitable Power Supply Parameters:
| Power Supply Model | Input voltage | Ouput voltage | Power | Weight | Size |
| S-300-48 | AC110V/220V | DC48V | 300W | 0.7kg | 215*115*50mm |
| S-1000-48 | AC110V/220V | DC48V | 1000W | 1.5kg | 245*245*65mm |
| S-360-60 | AC110V/220V | DC60V | 360W | 0.7kg | 215*115*50mm |
| S-1200-60 | AC110V/220V | DC60V | 1200W | 1.5kg | 245*245*65mm |
Power Supply Features:
This series of products has strong versatility and can be applied to various types of products such as lamps, monitoring, security, communication equipment, etc.
You may receive:

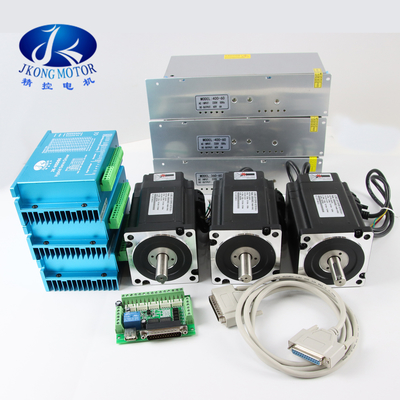

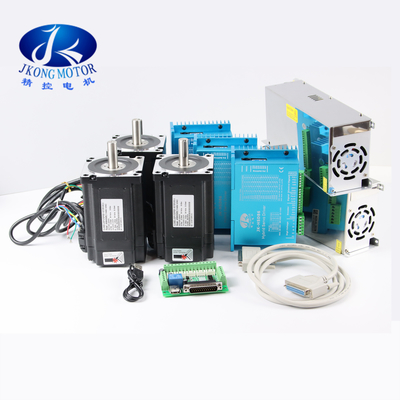

1. 3Pcs Nema 34 Closed Loop Stepper Motor + 3Pcs Power Supply + 3PCS JK-HSD86 Driver + other parts
2. 3Pcs Nema 34 Closed Loop Stepper Motor + 1Pcs Power Supply + 3PCS JK-HSD86 Driver + other parts

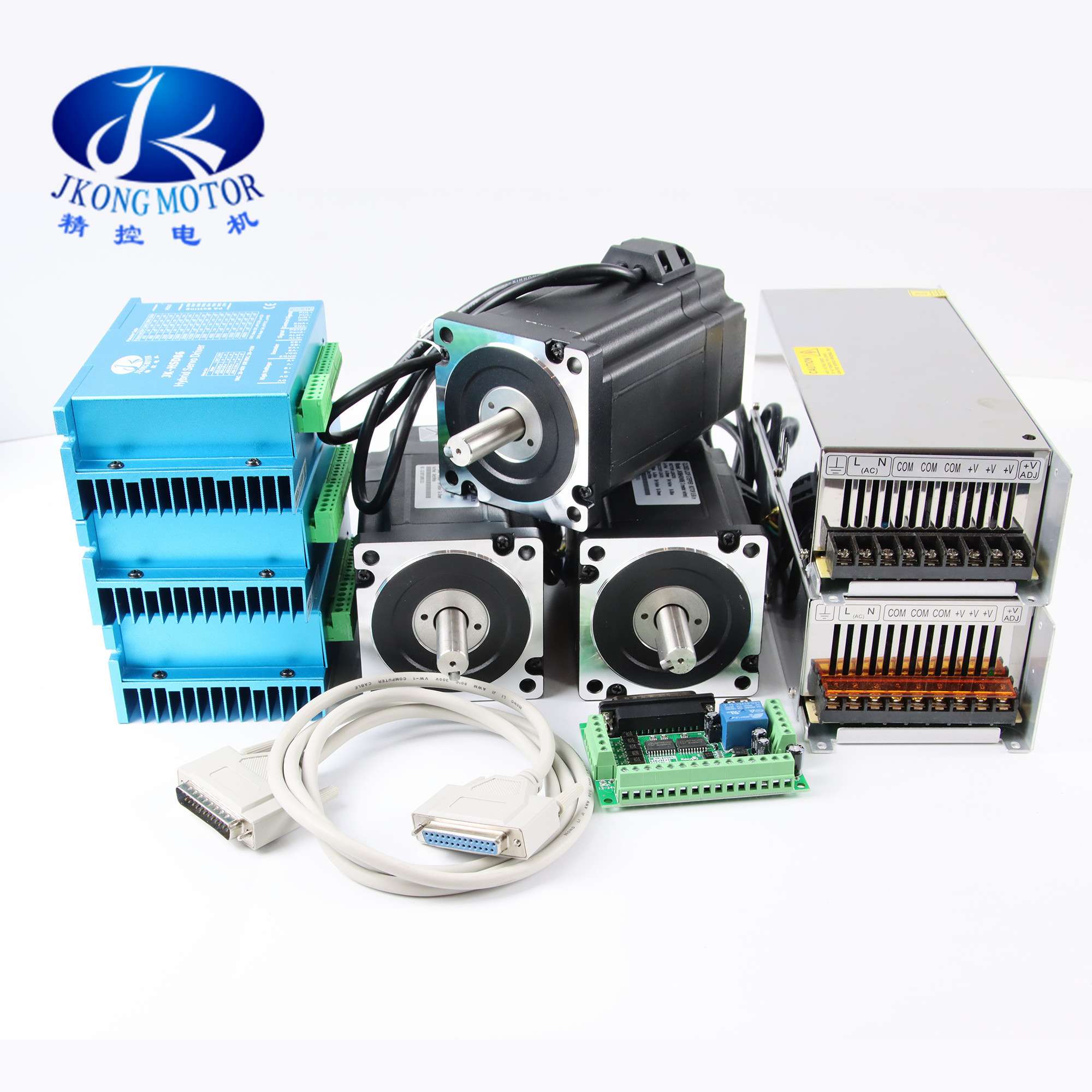

| No. | Output Voltage | Motor Quantity | Supply Quantity | Driver | Other |
| 1 | 48V | 3pcs closed loop motor | 3pcs ——300W | 3pcs —— JK-HSD86 | board + cable + usb |
| 2 | 48V | 3pcs closed loop motor | 1pcs ——1000W | 3pcs —— JK-HSD86 | |
| 3 | 60V | 3pcs closed loop motor | 3pcs ——360W | 3pcs —— JK-HSD86 | |
| 4 | 60V | 3pcs closed loop motor | 1pcs ——1200W | 3pcs —— JK-HSD86 |
closed loop stepper motor Drawing:
Details of product:

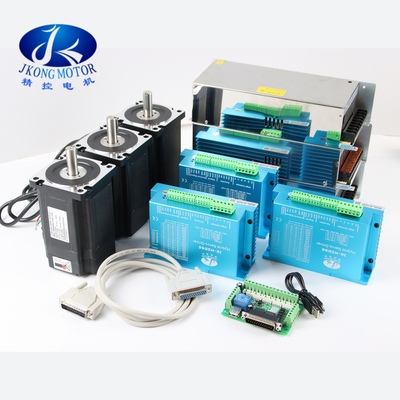

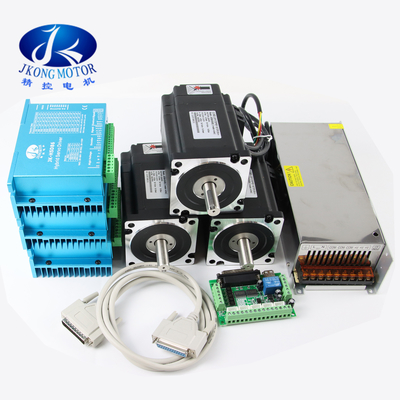

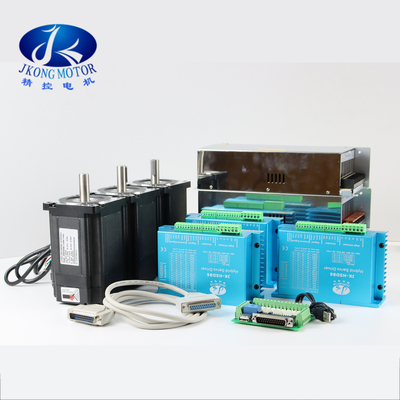

One set includes stepper motor and stepper driver with board + cable + usb with power supply
We aslo supply Stepper motor Kits, linear stepper motor, Dc motor, Brake stepper motor, Stepper motor with Encoder, Flexible Coupling, Pully, Power supply, Breakout Board and so on..
