Place of Origin: | Jiangsu, China (Mainland) |
Brand Name: | Jkongmotor |
Certification: | CE, ROHS,ISO9001 |
Model Number: | JK86HSN85 |
Minimum Order Quantity: | 3-10pcs |
---|---|
Price: | US$83~US$100 |
Packaging Details: | with export carton . big quantity with pallet |
Delivery Time: | For samples , 7-15 days / For batch , 15-25days |
Payment Terms: | T/T , paypal , Western Union, L/C |
Supply Ability: | 100000pcs/month |
Type: | Hybrid | Step Angle(degrees): | 1.8 Degree |
---|---|---|---|
Phase: | 2 | Leads: | 4 |
Shaft: | 14mm D Shaft | Current: | 6.0A |
Holding Torque: | 8.5N.m | Motor Length: | 115 |
Encoder: | 1000 Ppr | Usage: | CNC |
Highlight: | Closed Loop cnc stepper motor kit,JK86HSN85 cnc stepper motor kit,115mm length Nema34 motor kit |

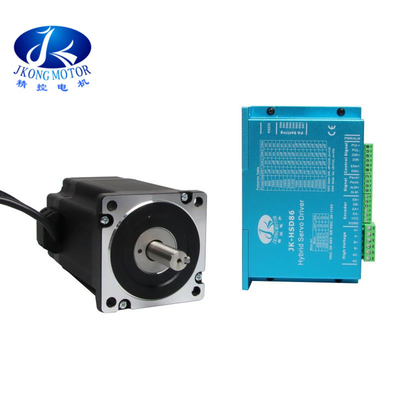

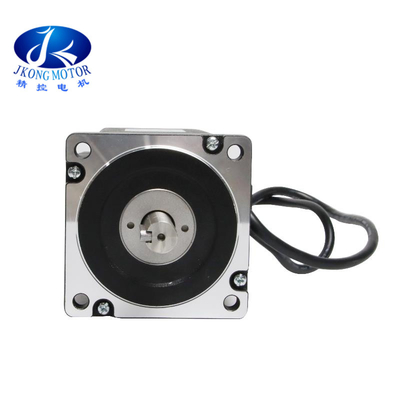

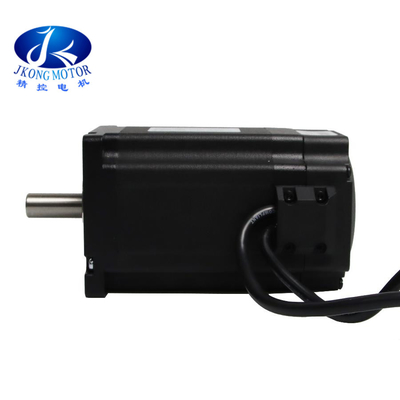

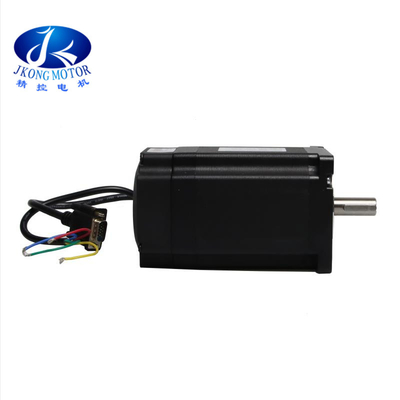

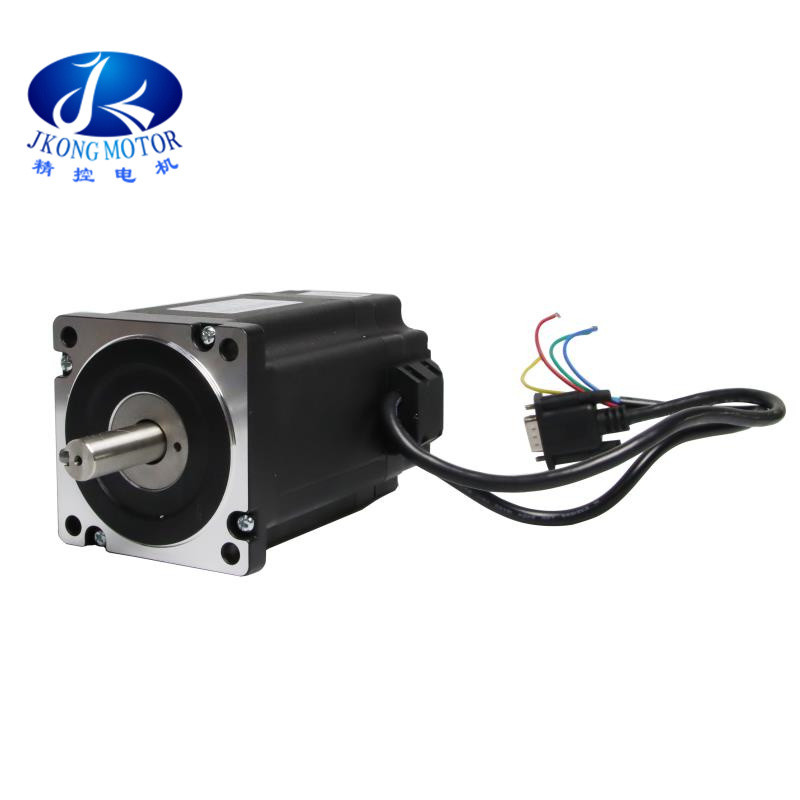

8.5N.m Holding Torque Nema34 Closed Loop Stepper Motor System /cnc servo motor
1. Genaral Specification of stepper motor driver kit:
Item | Specifications |
Step Angle | 1.8° |
Temperature Rise | 80℃max |
Ambient Temperature | -20℃~+50℃ |
Insulation Resistance | 100 MΩ Min. ,500VDC |
Dielectric Strength | 820VAC for 1minute |
Shaft Radial Play | 0.02Max. (450g-load) |
Shaft Axial Play | 0.08Max. (450g-load) |
Max. radial force | 220N (20mm from the flange) |
Max. axial force | 60N |
2. Electrical Specification of closed loop stepper motor kit:
Model No. |
Step Angle |
Motor Length |
Current /Phase |
Resistance /Phase |
Inductance /Phase |
Holding Torque |
# of Leads |
Detent Torque |
Rotor Inertia |
Mass |
( °) | (L)mm | A | Ω | mH | N.m | No. | Kg.cm | g.cm | Kg | |
JK86HS115-6004 YBJED-0.35M | 1.8 | 115 | 6 | 0.36 | 3.8 | 8.5 | 4 | 2.4 | 2700 | 4.3 |

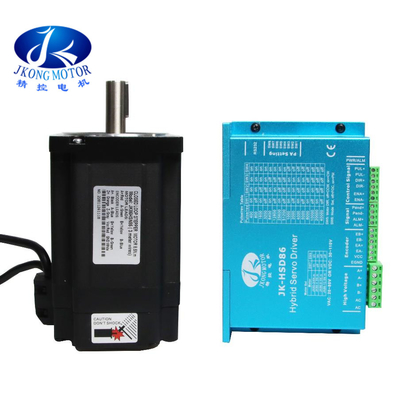

3. Matching Stepper motor Driver: JK-HSD86
4. Drawing of 8.5N.m nema 34 closed loop stepper motor:
CHANGZHOU JKONGMOTOR CO.,LTD (Changzhou Jingkong Motor&Electric Appliance Co.,Ltd)is an ISO9001 Professional manufacturer. Was established in 2011 year. We are a professional manufacturer in Changzhou city, China. Production Capacity exceeds more than 1 million motors per year. Our Company offers three major series of products: Hybrid Stepper motors, Brushless Dc motor and Dc Brush motor. We are always continues develop new type models.
We are also have several joint venture companies who specialized in the production of AC servo motor, PM stepper motors, Spindle motor and Motor drivers. We export our motors to more than 30 countries Such as United States, Germany, Russia, Turkey, Brazil and so on.
Jkongmotor sold to major manufacturing Companies for Industry of automation, medical and health care equipment, 3d printer machines, packing devices, Information Technology, household appliance products.
We have an Engineering team with many years of experience in application Engineering, design Engineering with the latest advances equipment. Our Engineering Staff provides the finest quality product with service after the product is delivered to our Customers.
