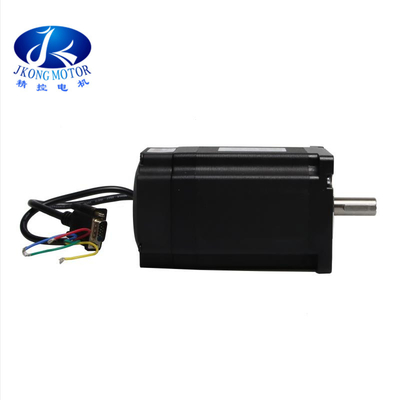

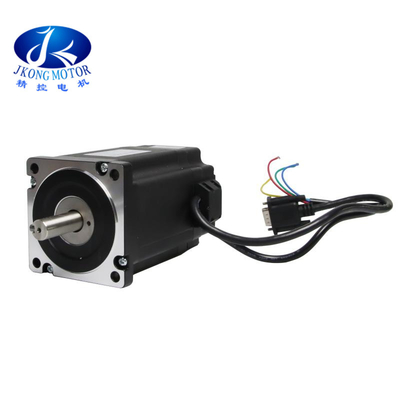

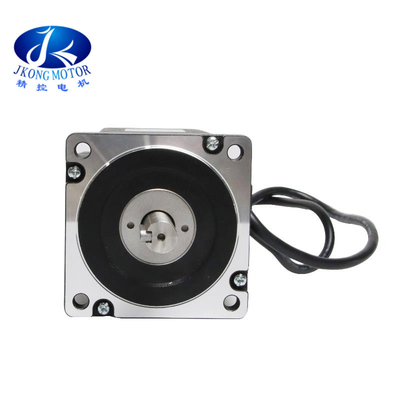

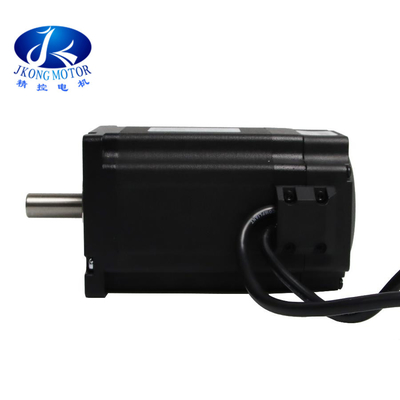

Name: OEM Service 1180oz.In Nema 34 Closed Loop Easy Servo Stepper Motor
Brand: Jkongmotor
SKU: JK86HSN85
Price: 83 USD
Availability: InStock
Rating: 4.9 (198 reviews)

Home Products Closed Loop Stepper Motor

OEM Service 1180oz.In Nema 34 Closed Loop Easy Servo Stepper Motor

Product Details:

Place of Origin:	Jiangsu, China (Mainland)
Brand Name:	Jkongmotor
Certification:	CE, ROHS,ISO9001
Model Number:	JK86HSN85

Payment & Shipping Terms:

Minimum Order Quantity:	3-10pcs
Price:	US$83~US$100
Packaging Details:	with export carton . big quantity with pallet
Delivery Time:	For samples , 7-15 days / For batch , 15-25days
Payment Terms:	T/T , paypal , Western Union, L/C
Supply Ability:	100000pcs/month

Contact Now

Detailed Product Description

Type:	Hybrid	Step Angle(degrees):	1.8 Degree
Phase:	2	Leads:	4
Shaft:	14mm D Shaft	Current:	6.0A
Holding Torque:	8.5N.m	Motor Length:	115
Encoder:	1000 Ppr	Usage:	CNC
High Light:	1180oz.in Easy Servo Motor , OEM Easy Servo Motor , OEM Nema 34 Stepper Motor

8.5N.m Holding Torque Nema34 Closed Loop Stepper Motor System /cnc servo motor

1. Genaral Specification of stepper motor driver kit:

Item	Specifications
Step Angle	1.8°
Temperature Rise	80℃max
Ambient Temperature	-20℃~+50℃
Insulation Resistance	100 MΩ Min. ,500VDC
Dielectric Strength	820VAC for 1minute
Shaft Radial Play	0.02Max. (450g-load)
Shaft Axial Play	0.08Max. (450g-load)
Max. radial force	220N (20mm from the flange)
Max. axial force	60N

2. Electrical Specification of closed loop stepper motor kit:

Model No.

Step Angle

Motor Length

Current

/Phase

Resistance

/Phase

Inductance

/Phase

Holding Torque

# of Leads

Detent Torque

Rotor Inertia

Mass

( °)

(L)mm

N.m

No.

Kg.cm

g.cm

JK86HS115-6004 YBJED-0.35M

1.8

115

0.36

3.8

8.5

2.4

2700

4.3

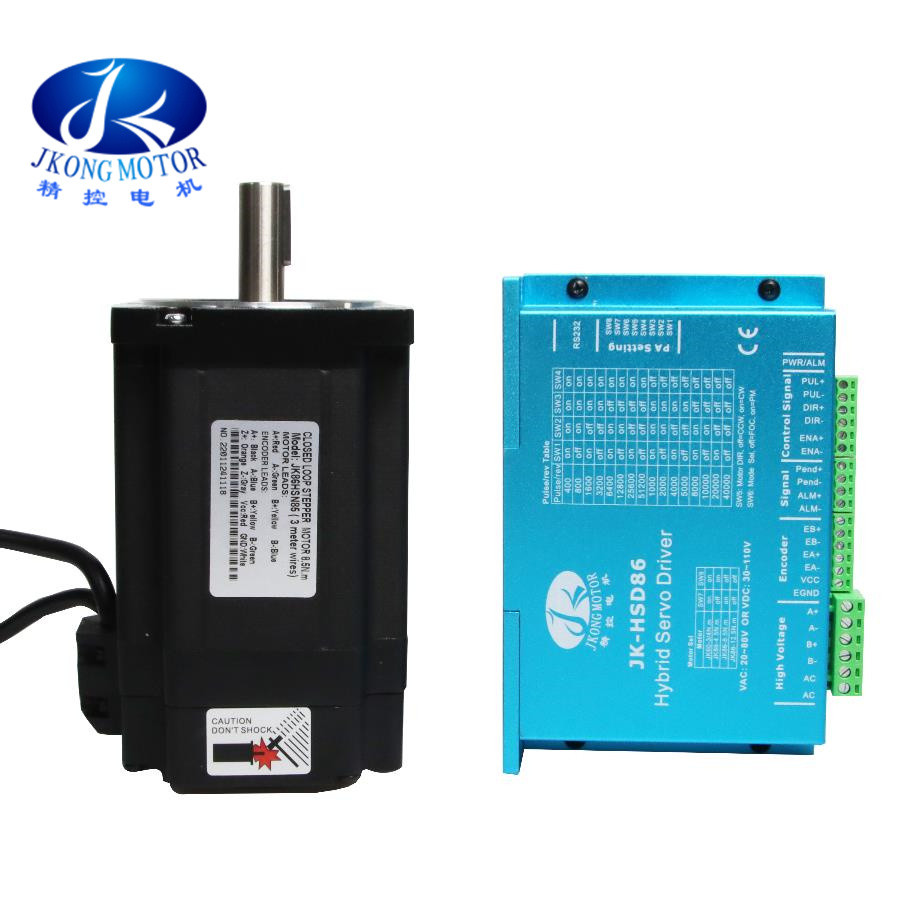

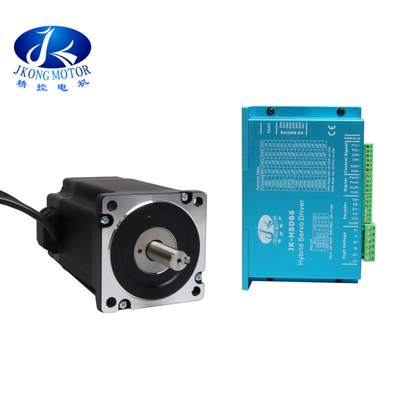

3. Matching Stepper motor Driver: JK-HSD86

Step and direction control
Closed position loop for no loss of movement synchronization
Operating voltage: 20-80 VDC
Load based output current of 0.1 - 10 A
High torque at starting and low speed
No torque reservation
High stiffness at standstill
Significantly reduced motor heating
Smooth motor movement and extra low motor noise
Quick response, no delay and zero settling time
No loss of steps; no hunting; no overshooting
Plug-and-play and no tuning

4. Drawing of 8.5N.m nema 34 closed loop stepper motor:

OEM Service 1180oz.In Nema 34 Closed Loop Easy Servo Stepper Motor 0

OEM Service 1180oz.In Nema 34 Closed Loop Easy Servo Stepper Motor 1

OEM Service 1180oz.In Nema 34 Closed Loop Easy Servo Stepper Motor 2

CHANGZHOU JKONGMOTOR CO.,LTD (Changzhou Jingkong Motor&Electric Appliance Co.,Ltd)is an ISO9001 Professional manufacturer. Was established in 2011 year. We are a professional manufacturer in Changzhou city, China. Production Capacity exceeds more than 1 million motors per year. Our Company offers three major series of products: Hybrid Stepper motors, Brushless Dc motor and Dc Brush motor. We are always continues develop new type models.

We are also have several joint venture companies who specialized in the production of AC servo motor, PM stepper motors, Spindle motor and Motor drivers. We export our motors to more than 30 countries Such as United States, Germany, Russia, Turkey, Brazil and so on.

Jkongmotor sold to major manufacturing Companies for Industry of automation, medical and health care equipment, 3d printer machines, packing devices, Information Technology, household appliance products.

We have an Engineering team with many years of experience in application Engineering, design Engineering with the latest advances equipment. Our Engineering Staff provides the finest quality product with service after the product is delivered to our Customers.
