| Place of Origin: | Jiangsu, China (Mainland) |
| Brand Name: | Jkongmotor |
| Certification: | CE, ROHS,ISO9001 |
| Model Number: | JK86HSN85 |
| Minimum Order Quantity: | 3-10pcs |
|---|---|
| Price: | US $72.50 - US $88.50 |
| Packaging Details: | with export carton . big quantity with pallet |
| Delivery Time: | For samples , 7-25 days / For batch , 15-40days |
| Payment Terms: | T/T , paypal , Western Union, L/C |
| Supply Ability: | 50000pcs/month |
| Phase: | 2 | Type: | Hybrid |
|---|---|---|---|
| Step Angle(degrees): | 1.8 Degree | Holding Torque: | 8.5N.m |
| Current / Phase: | 6A | Lead Wires: | 4 |
| Product Name: | Closed Loop Stepper Motor | Shape: | Square |
| Special: | With 1000 Line Encoder | Usage: | CNC Machine |
| High Light: | 8.5N.m Nema 34 Hybrid motor,closed loop Nema 34 Hybrid motor,JK86HSN85Hybrid stepper motor |
||
8.5N.m Nema34 Closed loop Motor + driver full kit:
1) Product Name: 8.5N.m Nema34 Closed loop servo stepper motor
Model: JK86HSN85
Number of Phase: 2
Step Angle: 1.8 Degree
No. of Leads: 4
Rated Voltage: 2.52V
Rated Current: 6.0 Amps
Holding Torque: 8.5N.m
Motor Diameter: 86mm
Motor length:143.5mm
Shaft Length: 37mm
Shaft Diameter: 14mm
2) Product Name: 8.5N.m Nema34 Closed loop servo stepper driver
Model:JK-HSD86
Voltage Range: 30-110VDC, 20-80VAC
Microstep/pulse: 51200/rev
3)Typical applications: CNC machine
| Closed Loop Servo Stepper Motor / Easy Servo Stepper Motor Series | ||||||
| Motor series | Phase No. | Step angle | Leads No. | Motor size | Holding Torque | |
| Nema 23 | 2 phase | 1.8 degree | 4 | 57x57mm | 1.8 | N.m |
| Nema 23 | 2 phase | 1.8 degree | 4 | 57x57mm | 2.2 | N.m |
| Nema 23 | 2 phase | 1.8 degree | 4 | 57x57mm | 3.1 | N.m |
| Nema 24 | 2 phase | 1.8 degree | 4 | 60x60mm | 3.1 | N.m |
| Nema 24 | 2 phase | 1.8 degree | 4 | 60x60mm | 4.0 | N.m |
| Nema 34 | 2 phase | 1.8 degree | 4 | 86x86mm | 4.5 | N.m |
| Nema 34 | 2 phase | 1.8 degree | 4 | 86x86mm | 8.5 | N.m |
| Nema 34 | 2 phase | 1.8 degree | 4 | 86x86mm | 12 | N.m |
| Nema 42 | 3 phase | 1.2 degree | 4 | 110x110mm | 20 | N.m |
| Nema 52 | 3 phase | 1.2 degree | 4 | 130x130mm | 30 | N.m |
| Above only for representative products, products of special request can be made according to the customer request. | ||||||

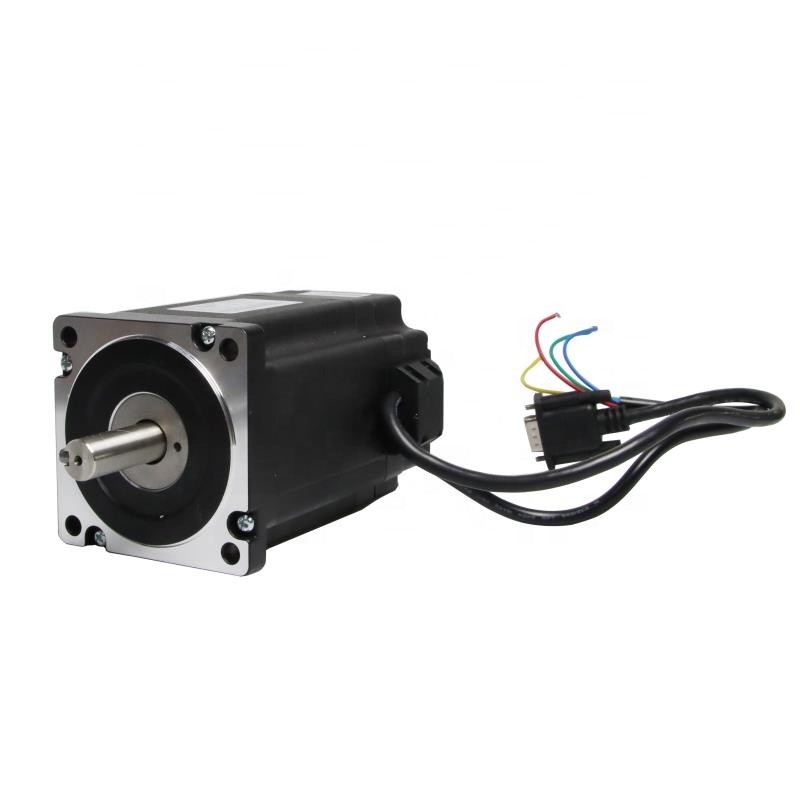

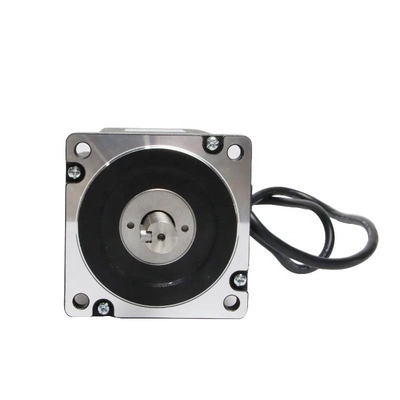

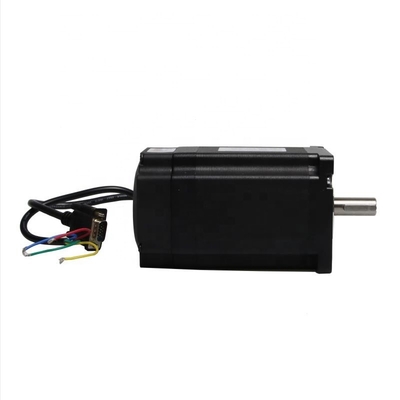

Details of 86mm closed loop servo motor:
Drawing of Hybrid servo stepper motor:
Introdution of JKONGMOTOR:
Nema86 stepper motor Application:
FAQ:
Q: 1. Can you make the gearbox or gearmotor with custom specifications?
A: YES. We have strong R&D capability, also a great term of engineers, each of them have many work years experience.
Q: 2. Do you provide the samples?
A: YES. Our company can provide the samples to you
Q:3.Do you provide technology support?
A: YES. Our company have strong R&D capability, we can provide technology support if you need.
Q: 4. why should you buy from us not from other suppliers?
A: Professional one-to-one motor customized . The world's large enterprise of choice for high quality suppliers . ISO9001:2008 quality management system certification, through the CE, ROHS certification.
Q: 5. How to ship to us?
A: We will ship the samples to you according to the DHL or UPS or FEDEX etc account you provide.
Q: 6. How can I know the product is suitable for me?
A: Frist, you need to provide us the more details information about the product. We will recommend the item to you according to your requirement of specification. After you confirm, we will prepare the samples to you. also we will offer some good advances according to your product use.
